Brand: Electrolux

Model: FGHC2331PFAA - REFRIGERATOR

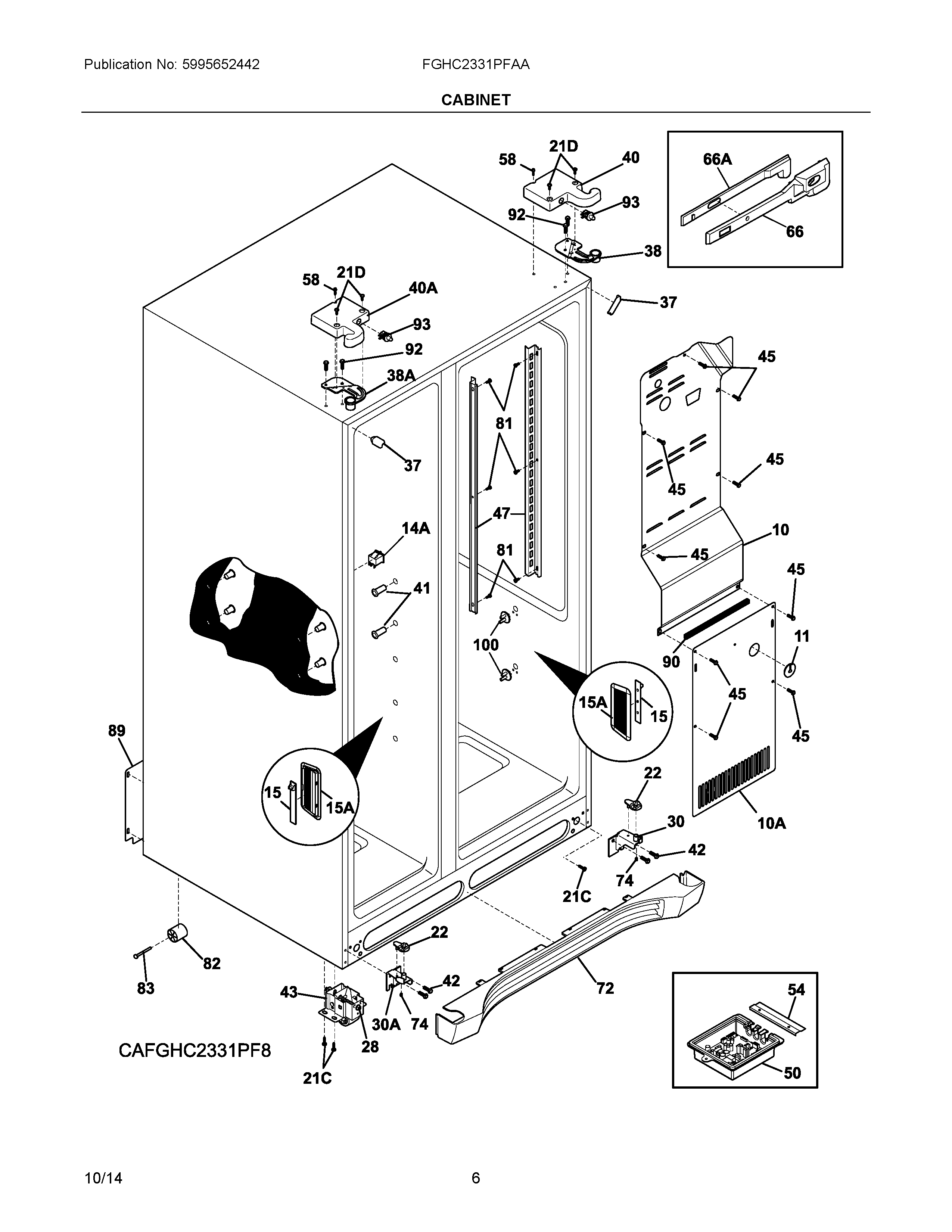

04 - CABINET

FGHC2331PFAA
Plan number Part Number Description Replacement Price
10 241509804 COVER-AIR DUCT   $0.00
10A 241719711 COVER-EVAP COIL,LOWER   $111.75
11 5303208309 PLUG-HOLE   $43.55
14A 241547901 LIGHT SWITCH   $62.40
15 242196201 LIGHT BOARD,3 LED CLUSTER 242196204   $60.95
21C 218252201 SCREW   $14.50
21D 218781101 SCREW,INCLUDES BOLTS   $15.95
22 241917801 PLATE,DOOR CLOSER   $7.25
28 240335502 BOLT-ROLLER ADJ, HEX WASHER HEAD, 1/4-20 X 4.020, (2), SPECIAL 240335006, 5304499445, WG03L04381   $0.00
30 241918001 LOWER HINGE,RH,W/SCREW   $67.50
30A 241918004 BRACKET-LOWER HINGE,W/HINGE PI   $53.70
37 242161206 TRIM,CABINET CORNER,GRAY   $10.15
38 241761301 BRACKET,UPPER HINGE,RIGHT   $67.50
38A 241761302 BRACKET,UPPER HINGE,LEFT   $66.05
40 241946709 COVER-UPPER HINGE,GRAY,RH   $71.10
NIA 241835801 HARNESS-WIRING   $17.40
40A 241946710 COVER-UPPER HINGE,GRAY,LH   $69.65
NIAA 241891901 HARNESS-WIRING,FREEZER   $26.85
41 241550801 GROMMET-SHELF MTG,1.40" LONG   $60.95
NIA 241550701 GROMMET-SHELF MTG,0.96"   $17.40
42 240578902 SCREW-HINGE   $14.50
43 240335006 ROLLER ASSY, FRONT, (2) WG03L04381, 5304499445   $0.00
45 241500303 SCREW,HEX WASHER HEAD,8-18AB X   $4.35
47 241513001 CHANNEL-SHELF MTG,SIDE   $107.40
50 5304498781 MAIN POWER BOARD   $274.30
NIA 241852502 CLIP,RETAINER,HARNESS   $15.95
54 241532401 CHANNEL   $31.20
58 241548003 SCREW,10-32 X 3/8   $2.90
66 241861301 HOUSING,DAMPER   $76.20
NIA 240346703 TAPE,FOAM 4"x0.5"   $2.20
NIB 241781601 SEAL,RETURN AIR   $8.70
NIC 242125501 INSULATOR,DAMPER   $15.95
66A 241861201 SLIDE-DAMPER, MEAT PAN   $0.00
72 241969405 GRILLE/KICKPLATE   $79.85
74 218755402 SCREW-SET   $6.55
81 5304455650 SCREW   $14.50
82 5304418225 ROLLER,COMPRESSOR BASE,REAR   $49.35
83 5304455655 RIVET   $7.25
89 241733902 COVER   $81.30
90 218249808 SEAL-COIL COVER   $8.70
92 241710601 SCREW   $13.80
93 241911705 SWITCH-LIGHT,GREY,(2)   $54.45
100 241993101 SUPPORT, SHELF TRAY   $8.70
NIA 241993001 SUPPORT,CRISPER COVER,REAR(4)   $8.00
NI 240396801 CLAMP TUBE   $19.60
NI 240494001 PLUG-BUTTON, WHITE, CAB LINER HOLES WG03F03412   $0.00
NI 241890604 LOUVER,AIR SUPPLY,CRISPER   $17.40
NI 242125401 SCOOP,AIR SUPPLY,CRISPER   $13.05
*The price can change whitout warning
