Marque: Whirlpool
Modèle: ED2GHEXNQ01

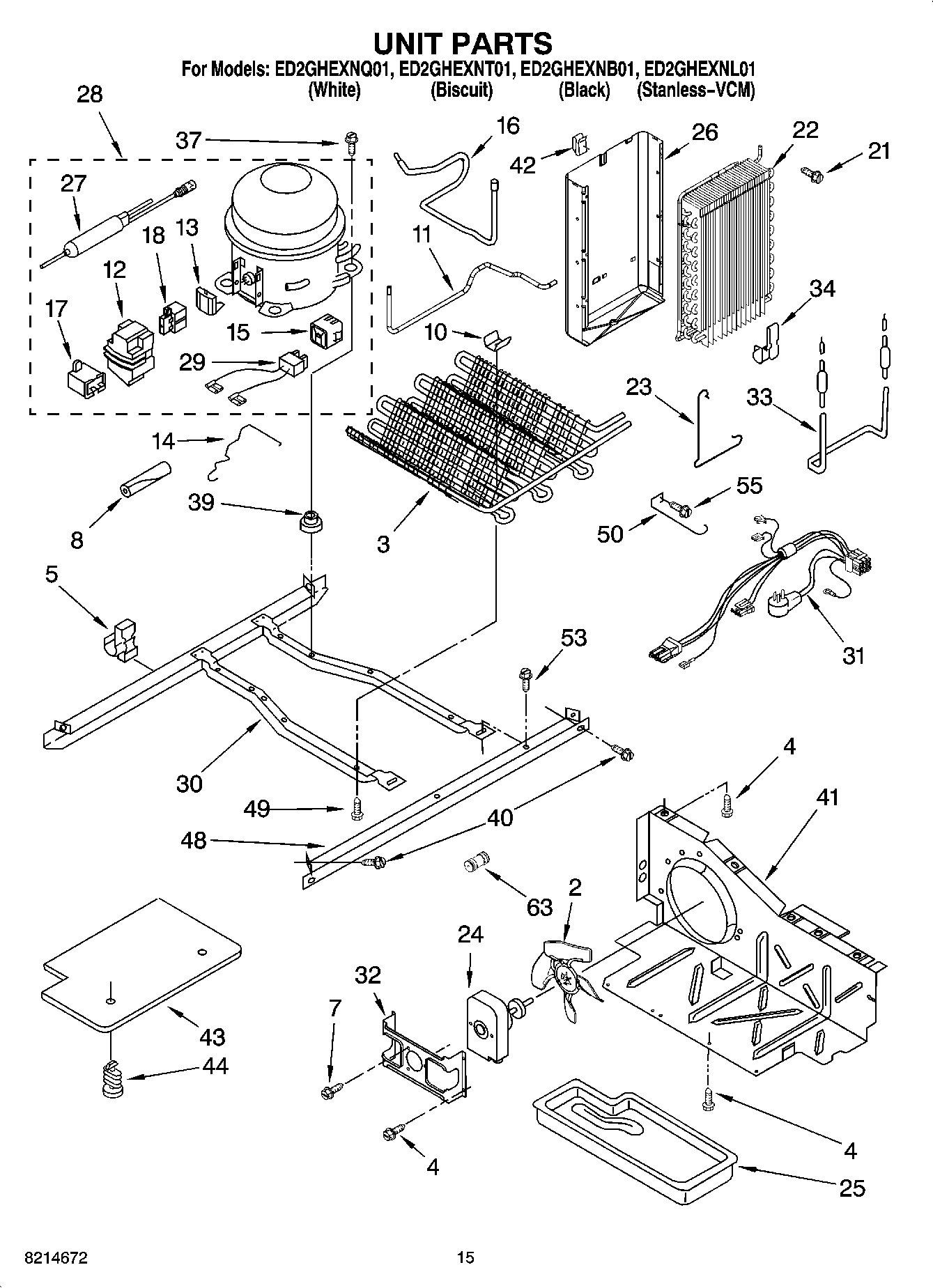

09 - UNIT PARTS
- 01 - CABINET PARTS
- 02 - REFRIGERATOR LINER PARTS
- 03 - REFRIGERATOR SHELF PARTS
- 04 - FREEZER LINER PARTS
- 05 - MOTOR AND ICE CONTAINER PARTS
- 06 - REFRIGERATOR DOOR PARTS
- 07 - FREEZER DOOR PARTS
- 08 - DISPENSER FRONT PARTS
- 09 - UNIT PARTS
- 10 - AIR FLOW PARTS
- 11 - CONTROL PARTS
- 12 - ICEMAKER PARTS, OPTIONAL PARTS
# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
2 | 2225834 | BLADE-FAN | W11458267 | Appeler pour commander | ||
3 | 2223953 | CONDENSER | 2324712 | Appeler pour commander | ||
4 | 489464 | VIS | WP489464 | Appeler pour commander | ||
5 | 2208280 | CLIP | Appeler pour commander | |||
7 | 8533993 | SCREW | WP8533993 | Appeler pour commander | ||
8 | 2161302 | SLEEVE | W11661094 | Appeler pour commander | ||
10 | 2216914 | CLIP | W10683556 | Appeler pour commander | ||
11 | 2261599 | TUBE | Appeler pour commander | |||
12 | 4387731 | COUVERCLE | WP2162358 | Appeler pour commander | ||
13 | 2187145 | OVERLOAD | WP2187145 | Appeler pour commander | ||
14 | 2255009 | RETAINER | Appeler pour commander | |||
15 | 2188831 | MECANISME DEMARRAGE | WP2188831 | Appeler pour commander | ||
16 | 2220642 | TUBE | Appeler pour commander | |||
17 | 2255130 | CONDENSATEUR | WP65889-4 | Appeler pour commander | ||
17 | 1118576 | CONDENSATEUR | WPW10662129 | Appeler pour commander | ||
18 | 2183454 | RELAIS,DEMARRAGE | W10920279 | Appeler pour commander | ||
21 | 489478 | SCREW | WP489478 | Appeler pour commander | ||
22 | 2188822 | EVAPORATOR | WP2188822 | Appeler pour commander | ||
23 | 2161324 | ATTACHE | WP2161324 | Appeler pour commander | ||
24 | 2188874 | MOTEUR-CONDENSEUR | WP2188874 | Appeler pour commander | ||
25 | 1105523 | PLATEAU D'EVAPORATION | WPW10614158 | Appeler pour commander | ||
26 | 2304288 | Heat Shield | ||||
27 | 2199167 | ASSECHEUR-TUBE | W10843121 | Appeler pour commander | ||
28 | 2255011 | COMPRESSEUR 1/4+ R134A | W10309990 | Appeler pour commander | ||
29 | 4387765 | WIRE | WP2172890 | Appeler pour commander | ||
30 | 2160501 | FRAME | 2304903 | Appeler pour commander | ||
31 | 2187783 | HARNS-WIRE | WPW10309395 | Appeler pour commander | ||
32 | 2181929 | BRACKET | WP2181929 | Appeler pour commander | ||
33 | 2188174 | ELEMENT DE DEGIVRAGE | WP2323197 | Appeler pour commander | ||
34 | 2304287 | CLIP | W11623163 | Appeler pour commander | ||
37 | 489373 | GROMMET | 876811 | Appeler pour commander | ||
39 | 1100826 | GROMMET | 876811 | Appeler pour commander | ||
39 | 4387558 | GROMMET | WP4387558 | Appeler pour commander | ||
40 | 489340 | SCREW | Appeler pour commander | |||
41 | 2196202 | BAFFLE-AIR | W10896764 | Appeler pour commander | ||
42 | 2155547 | Clip, Heat Shield | ||||
43 | 2182057 | Unit Cover, Bottom | ||||
44 | 489396 | CLIP | Appeler pour commander | |||
48 | 2149718 | Unit Mounting Rail | ||||
49 | 8281232 | SCREW | W11544659 | Appeler pour commander | ||
50 | 2186496 | Guard, Fan | ||||
53 | 489427 | SCREW | WP489427 | Appeler pour commander | ||
55 | 488649 | SCREW | WPW10141625 | Appeler pour commander | ||
63 | 2209709 | RACCORD 1/4 X 5/16 | WP4373559 | Appeler pour commander | ||
63 | N/A | FOLLOWING PARTS NOT ILLUSTRATED | ||||
63 | 978025 | VALVE | WP978025 | Appeler pour commander | ||
63 | 978026 | VALVE | Appeler pour commander | |||
63 | 978027 | VALVE | Appeler pour commander | |||
63 | 978028 | VALVE, ACCESS (1/2``) | ||||
63 | 978029 | VALVE, ACCESS (5/8``) | ||||
63 | 978030 | VALVE | Appeler pour commander | |||
63 | 876764 | VALVE | Appeler pour commander |
*Le prix peut changer sans préavis
