Brand: Electrolux

Model: FGEW276SPFA - ELECTRIC OVEN

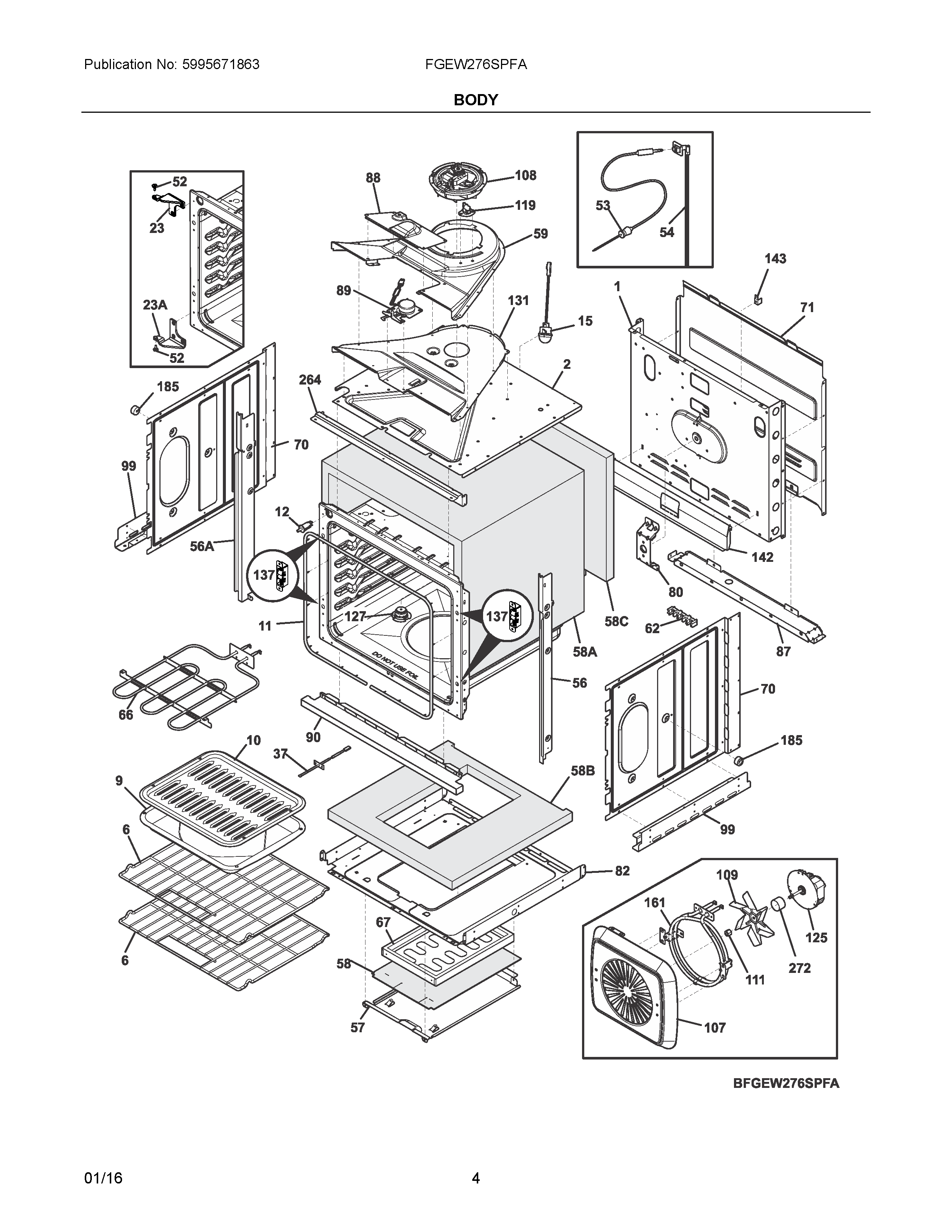

03 - BODY

FGEW276SPFA
Plan number Part Number Description Replacement Price
1 139003804 PANEL,MAIN BACK 139003805   $79.85
2 139027804 SHIELD,INSULATION,TOP   $82.00
6 139011700 RACK,OVEN,W/HANDLE 5304514984   $65.30
9 316081900 BROILER PAN & INSERT KIT 5304494997   $76.20
10 316082000 BROILER PAN & INSERT KIT 5304494997   $76.20
11 807545501 SEAL,OVEN DOOR,GRAY   $76.20
12 318394802 SWITCH,OVEN LIGHT,DOOR FRAME 808136601   $40.65
15 139009000 ROUND HALOGEN LAMP ASSY 5304528790   $21.80
NIA 318946500 HALOGEN LAMP G9 25W 120V   $54.45
23 808893101 HINGE,FRONT FRAME,TOP   $31.95
23A 808893102 HINGE,FRONT FRAME,BOTTOM   $29.75
NI 5304436875 SCREW,8-18 X 1/2,BLACK   $0.00
37 318562500 OVEN TEMP PROBE 5304504897   $43.55
52 318074913 PIN-HINGE   $47.20
53 5304504202 PROBE, MEAT   $115.40
54 139017203 RECEPTACLE ASSY,MEAT PROBE   $156.75
56 318903759 TRIM,SIDE,BLACK,RH   $76.20
56A 318903760 TRIM,SIDE,BLACK,LH   $72.60
NI 318165800 SPACER   $18.15
57 139021200 PANEL,SERVICE,BAKE ELEMENT   $30.50
58 139022100 INSUALTION,BAKE ELEMENT   $11.60
58A 5304504199 INSULATION,OVEN WRAPPER   $95.80
58B 139021501 INSULATION,OVEN BOTTOM   $31.95
58C 139021401 INSULATION,OVEN BACK   $25.40
59 139027600 DUCT   $87.80
NIA 318579001 BRACKET,WIRE   $10.55
62 316056000 TERMINAL BLOCK 5304409888, WG02A00893   $11.60
NIA 316205500 NUT,HEX FLANGE,3/8 10-32   $11.60
NIB 5303289910 SCREW,8A,1",(7),POWER BOARD MT   $5.80
67 318902502 HIDDEN BAKE ELEMENT,1450W   $209.00
NIA 318231870 WIRING HARNESS,BAKE ELEMENT   $79.85
NIB 5303323130 SCREW   $15.25
70 139000600 SHIELD,INSULATION,SIDES,(2) 139000601   $68.95
71 139022000 SHIELD,REAR WIRE,MAIN BACK   $63.15
80 139021101 BRACKET,SUPPORT,CHASSIS/FAN   $15.25
NIA 807597603 SCREW,SELF TAPPING,8-18 X 11/3   $9.45
82 139003101 SHIELD,INSULATION,LOWER   $87.10
87 139021900 BRACKET,CABLE MTG.   $13.05
NIA 316001003 SCREW,GROUNDING,10-24 X 1.835 316001017   $0.75
88 139027900 COVER,LATCH MOTOR 5304506964   $24.70
89 139078302 MOTOR,LATCH ASSEMBLY   $104.50
NIA 807448005 HARNESS,WIRING,MDL ADS,LATCH/P 5304517364   $40.65
NIB 5304504203 WASHER,DOOR LOCK,BLACK   $19.60
90 318259862 TRIM,BASE,STAINLESS 318259864   $174.90
99 318256201 BRACKET SIDE BOTTOM 2   $58.05
107 139013903 COVER,CONVECTION FAN   $43.55
108 318575612 MOTOR,FAN   $203.20
109 139009100 FAN WHEEL 318398302   $24.70
111 316136600 ECROU   $19.60
119 318578506 THERMOSTAT, FAN, 105 DEG   $60.25
125 139008500 MOTOR,CONVECTION FAN   $214.10
127 139042600 TUBE ASSEMBLY,VENT,W/CATALYST   $44.25
131 139027700 DUCT   $74.75
137 318090310 DOOR LATCH   $47.20
NIA 5304497581 SCREW,TRUSS,SQDR,8-32 X 3/16 5303288565   $3.20
142 139021800 SHIELD,AIR DEFLECTOR,MAIN BACK   $12.35
143 318172904 SUPPORT,WIRE   $2.90
161 139006500 ELEMENT,CONVECTION,2500W   $93.60
185 318531800 SPACER - OVEN SHIELD   $13.05
264 808877504 TRIM,VENT,BLACK   $119.75
272 139021700 TUBE,CONVECTION FAN   $18.15
NI 318394441 HARNESS ASSEMBLY,CONDUIT,ELBOW 5304506983   $127.75
NI 5304490877 HARNESS,WIRING,MAIN   $141.50
NI 5304500988 HARNESS ASSEMBLY,FILTER,ELECTR 5304517285   $37.00
NI 5303321211 WASHER, BLACK, (2)   $0.00
NI 316021105 SCREW, HEX   $11.60
NI 316021109 SCREW   $14.50
NI 316021110 SCREW 316021109   $14.50
NI 5304470882 SCREW,ANTI-TIP ,8 - 5/8 ,BLACK   $13.80
*The price can change whitout warning
