Brand: Electrolux

Model: FFMV1645TBA - MICROWAVE, OVER-THE-RANGE

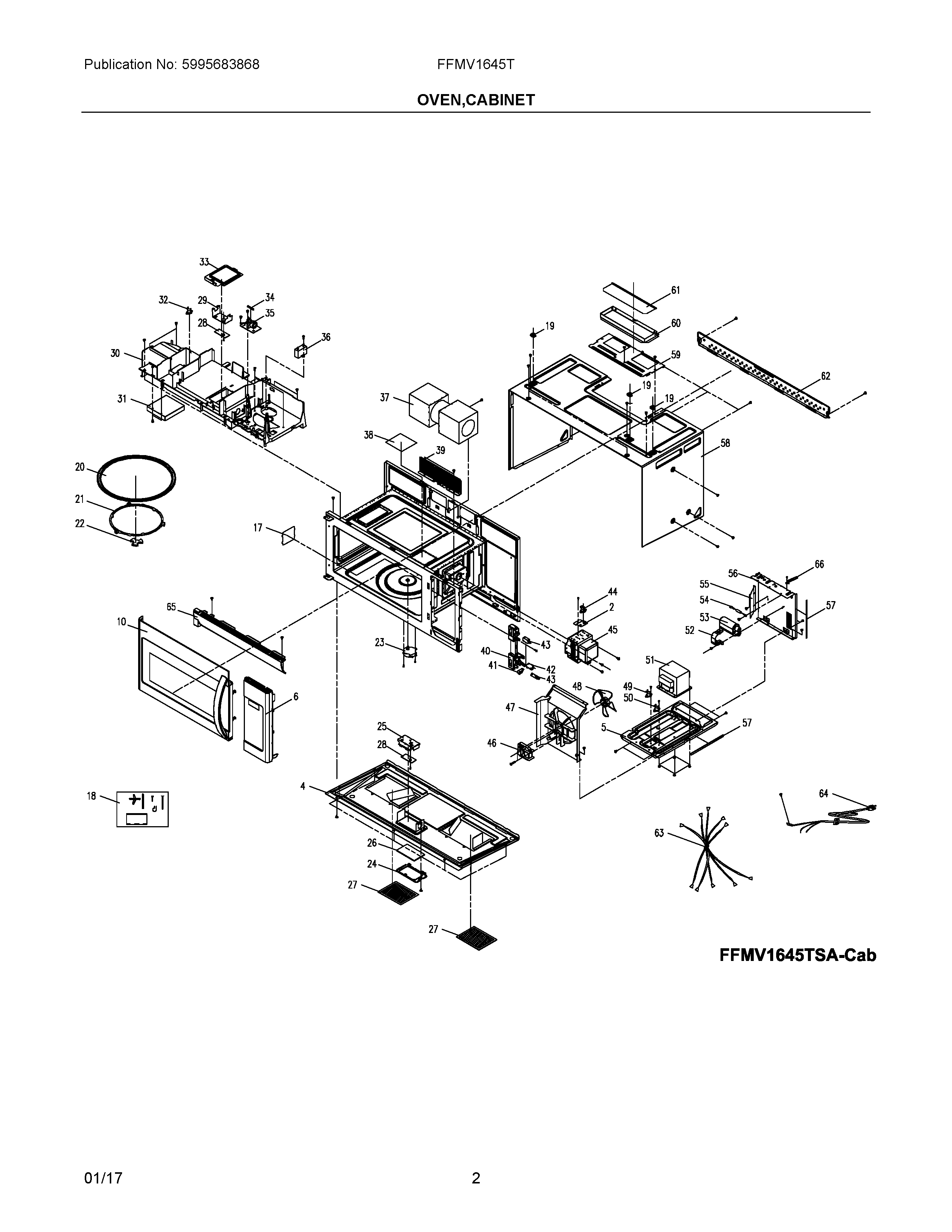

02 - OVEN, CABINET

FFMV1645TBA
Plan number Part Number Description Replacement Price
2 5304509333 BRACKET,THERMOSTAT   $13.80
4 5304509417 BASE,UNIT CHASSIS   $210.45
5 5304509418 BASE,TRANSFORMER   $82.75
6 5304509591 CONTROL ASSEMBLY,BLACK   $505.10
10 5304509593 DOOR ASSEMBLY,BLACK   $762.70
17 5304509435 COVER   $13.80
18 5304492620 MOUNTING KIT,WITH TEMPLATES 5304503192   $112.50
19 5304509436 MOUNTING NUT KIT   $14.50
20 5304509437 TRAY,TURNTABLE   $140.05
21 5304509438 SUPPORT,TURNTABLE RING   $53.70
22 5304509439 COUPLER,TURNTABLE MOTOR   $13.80
23 5304509440 MOTOR,TURNTABLE   $104.50
24 5304509441 FRAME,LENS HOLDER   $49.35
25 5304509442 COVER,LAMP   $62.40
26 5304509443 LENS,COOKTOP LAMP,GLASS   $20.35
27 5304509444 FILTER,GREASE   $81.30
28 5304509445 LAMP ASSEMBLY,LED 5304499540   $82.75
29 5304509446 BRACKET,LED   $21.80
30 5304509447 DUCT,AIR   $234.40
31 5304509448 VENT,AIR OUTLET   $24.70
32 5304509449 THERMOSTAT,CUT OUT   $20.35
33 5304509450 COVER,LAMP,OVEN CAVITY   $18.15
34 5304509451 FUSE   $15.95
35 5304509452 FILTER,NOISE,ELECTRONIC   $76.20
36 5304509453 CAPACITOR,START   $135.00
37 5304509454 MOTOR,VENT   $223.50
38 5304509455 TAPE,LAMP   $10.90
39 5304509456 COVER,CONTROL SHIELD,RIGHT   $19.60
40 5304509457 LATCH HOOK   $68.20
41 5304509458 LEVER,SWITCH   $10.15
42 5304509459 LOCK SWITCH   $45.70
43 5304509460 SWITCH,INTERLOCK   $49.35
44 5304509469 THERMOSTAT,160/95 *V   $19.60
45 5304509470 MAGNETRON,HIGH VOLTAGE   $341.10
46 5304509471 MOTOR,COOLING FAN   $147.30
47 5304509472 DUCT,COOLING FAN   $79.85
48 5304509473 FAN BLADE,COOLING FAN   $14.50
49 5304509474 THERMOSTAT,CUTOUT,TRANSFORMER   $19.60
50 5304509475 THERMAL CUTOFF   $19.60
51 5304509476 TRANSFORMER,HIGH VOLTAGE   $340.35
52 5304509477 RETAINER,CAPACITOR STRAP   $11.60
53 5304509478 CAPACITOR,HIGH VOLTAGE   $133.55
54 5304509479 DIODE,HIGH VOLTAGE   $26.15
55 5304509480 VENT,AIR,MAGNETRON   $52.25
56 5304509481 PLATE,AIR GUIDE   $57.35
57 5304509482 CUSHION,FOAM PAD,TRANSFORMER   $3.65
58 5304509483 CABINET,OUTER CASING,BLACK   $383.20
59 5304509484 COVER,VENT MOTOR   $151.70
60 5304509485 FRAME,DAMPER HOUSING   $30.50
61 5304509486 DAMPER,DOOR   $35.55
62 5304509487 PLATE,WALL MTG,REAR   $66.75
63 5304509488 WIRING HARNESS,MAIN   $168.35
64 5304509489 POWER CORD,ELECTRIC   $144.40
65 5304509490 VENT,STAINLESS,FRONT   $141.50
66 5304509491 SPACER   $10.90
NI 5304472496 SCREW KIT, BLACK   $0.00
*The price can change whitout warning
