Brand: Whirlpool

Model: WRS325SDHW00 - REFRIGERATOR, SIDE-BY-SIDE

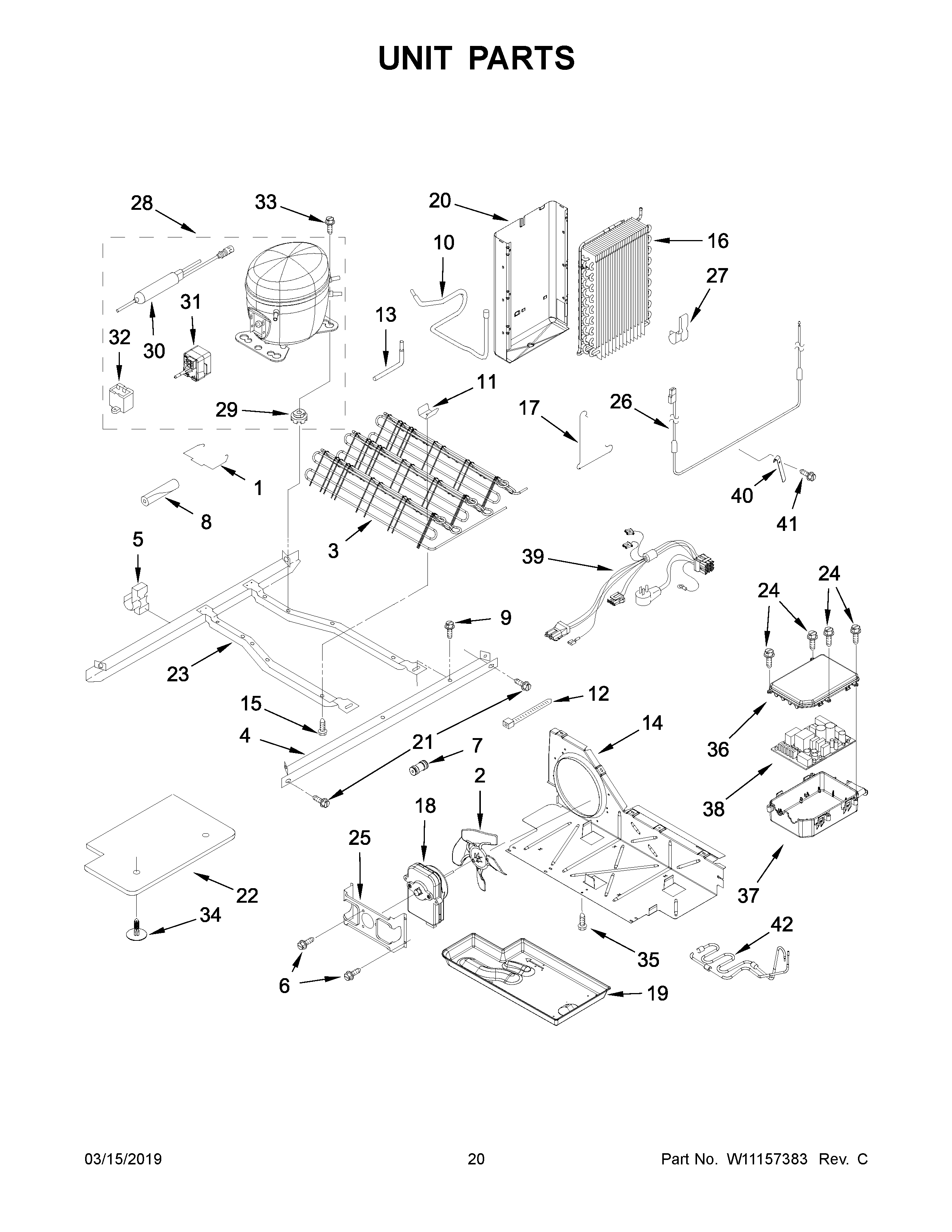

11 - UNIT PARTS

WRS325SDHW00
Plan number Part Number Description Replacement Price
1 2212996 RETAINER   $10.39
2 2225834 BLADE-FAN W11458267   $17.63
3 W10904626 CONDENSER W11632924   $167.72
4 W10900442 RAIL-UNIT   $93.49
5 2326941 CLIP W10812039   $7.50
6 8533993 SCREW WP8533993   $7.37
7 W10271541 CONNECTOR-WATER 5/16 X 5/16 WP2300868   $28.01
8 2161302 SLEEVE W11661094   $17.63
9 489427 SCREW WP489427   $5.98
10 W10745337 TUBE   $29.40
11 2311725 CLIP W10683556   $12.85
12 W10350564 CAPACITOR WPW10350564   $94.54
13 2325479 TUBE W10858105   $132.01
14 W10197428 START PROTECTOR WPW10197428   $88.75
15 8281232 SCREW W11544659   $11.19
16 2188823 EVAPORATOR WP2188823   $324.58
17 2161324 CLIP WP2161324   $7.92
18 W10522629 MOTOR-COND W11578915   $88.73
19 W10897557 TRAY-EVAP W11164129   $114.02
20 W10194475 SHIELD   $107.16
21 W10771114 UV DRIER-TUBE WPW10143759   $25.87
22 489473 SCREW W11661574   $11.19
23 W10900446 FRAME   $65.83
24 8533859 SCREW WPW10171469   $7.38
25 2181929 BRACKET WP2181929   $8.30
26 2188175 HEATER ELEMENT WP2323198   $69.36
27 2161324 CLIP WP2161324   $7.92
28 W10253005 COMPRESSOR 1/5 R134A W10309988   $499.69
29 W10836504 GROMMET   $14.01
30 489340 SCREW   $7.37
31 W10897567 BAFFLE-AIR W10896764   $75.01
32 2263990 TIE-WIRE WPW10339879   $6.32
33 W10897560 COVER-UNIT   $77.45
34 489396 CLIP   $0.00
35 489464 SCREW WP489464   $5.69
36 W10334855 COVER   $55.61
37 2323186 HOUSING   $79.00
38 W11023173 CNTRL-ELEC W11449482   $141.09
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI 978025 VALVE WP978025   $79.00
NI 978026 VALVE   $94.63
NI 978027 VALVE   $96.52
NI 978029 VALVE, ACCESS (5/8")   $0.00
NI 978030 VALVE   $101.28
NI 876764 VALVE   $73.02
NI N/P REFRIGERANT CHARGE 5.5 OZ (R-134A)   $0.00
12 2263990 TIE-WIRE WPW10339879   $6.32
14 W10897567 BAFFLE-AIR W10896764   $75.01
21 489340 SCREW   $7.37
22 W10897560 COVER-UNIT   $77.45
30 W10771114 UV DRIER-TUBE WPW10143759   $25.87
31 W10197428 START PROTECTOR WPW10197428   $88.75
32 W10350564 CAPACITOR WPW10350564   $94.54
33 489473 SCREW W11661574   $11.19
38 W11133692 CNTRL-ELEC W11449482   $141.09
39 W11126973 HARNS-WIRE W11396386   $103.70
40 W10895163 HEAT-PROBE W11399989   $17.63
41 489478 SCREW WP489478   $6.50
NI N/P REFRIGERANT CHARGE, 5.5 OZ (R-134A)   $0.00
23 W10900446 FRAME   $65.83
36 W10334855 COVER   $55.61
40 W10895163 HEAT-PROBE W11399989   $17.63
42 W11189542 TUBE W11678305   $46.10
NI NP CABINET (NOT A SERVICABLE PART)   $0.00
44 2264838 SLEEVE   $70.81
43 2169104 INSULATION W11553819   $11.19
27 2304287 CLIP W11623163   $9.14
38 W11265217 CNTRL-ELEC W11449482   $141.09
39 W11389873 HARNS-WIRE W11396386   $103.70
*The price can change whitout warning
