Brand: Whirlpool
Model: WCE97US0HS00 - COOKTOP, ELECTRIC, BUILT-IN, 30 INCH

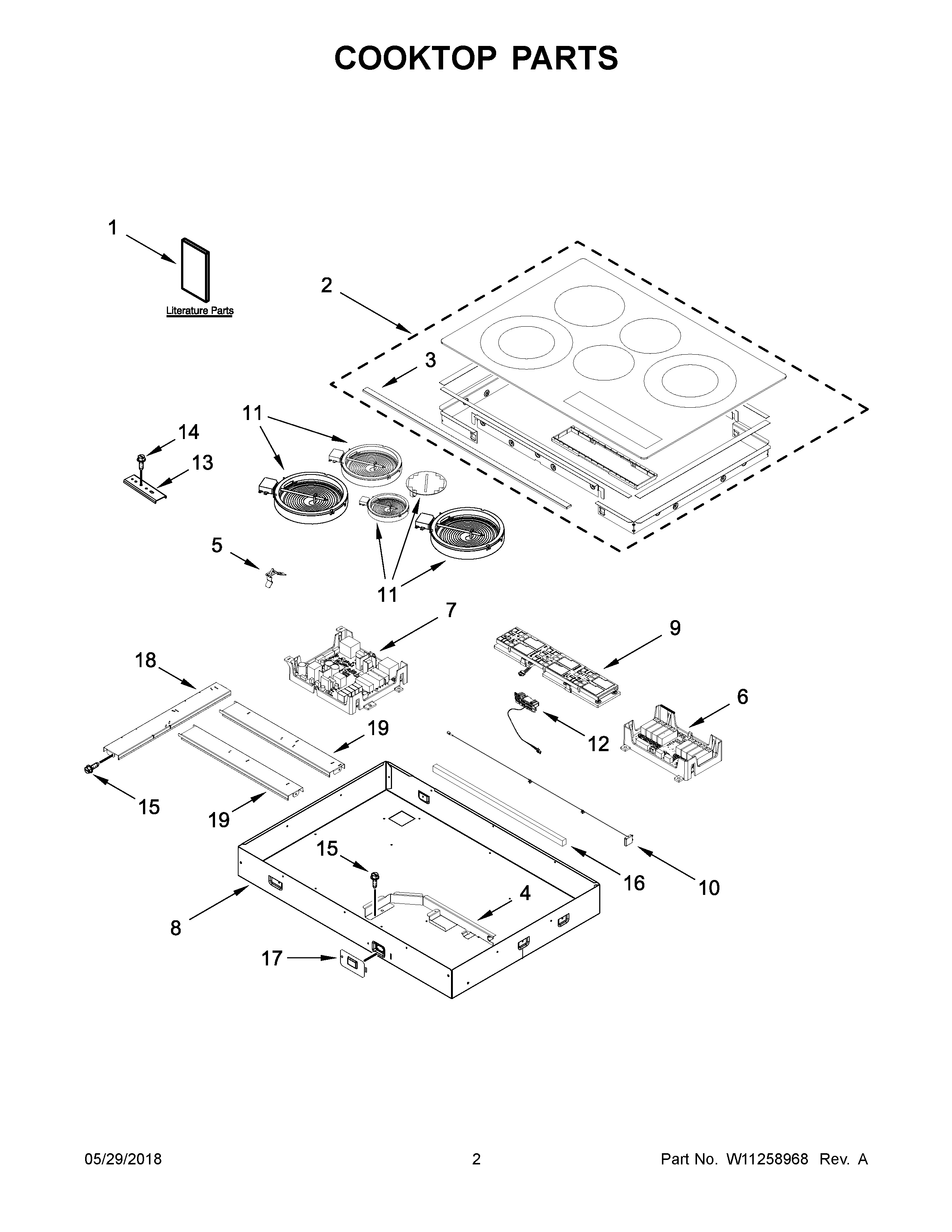

02 - COOKTOP PARTS
- 01 - COVER SHEET
- 02 - COOKTOP PARTS
- 03 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11206696 | INSTRUCTIONS, INSTALLATION | $0.00 | |||
| 1A | W11245478 | INSTRUCTIONS, UNDERCOUNTER INSTALLATION | $0.00 | |||
| 1B | W11214273 | GUIDE, USE & CARE | $0.00 | |||
| 1C | W11227340 | DIAGRAM, WIRING | $0.00 | |||
| 1D | W11228285 | GUIDE, INTERNET CONNECTIVITY | $0.00 | |||
| 2 | W11120982 | COOKTOP (BLACK) | W11259506 | $0.00 | ||
| 2A | W11120983 | COOKTOP (STAINLESS) | W11259507 | $0.00 | ||
| 3 | N/P | TRIM, FRONT STAINLESS (NOT SERVICED) | $0.00 | |||
| 4 | W11102056 | SHIELD-HT | $61.88 | |||
| 5 | W10225448 | SPRING | WPW10225448 | $10.59 | ||
| 6 | W11115981 | CNTRL-ELEC | W11259509 | $425.39 | ||
| 7 | W11115991 | MANAGER, COPERNICUS APPLIANCE | W11259510 | $0.00 | ||
| 8 | N/P | BOX, BURNER (NOT SERVICED) | $0.00 | |||
| 9 | W11115967 | ASSEMBLY, UI | W11260258 | $0.00 | ||
| 10 | W11179387 | ANTENNA | W11260259 | $0.00 | ||
| 11 | W10275048 | ELEMENT SURFACE - 3000/1400W | W11517959 | $156.97 | ||
| 11A | 8273993 | ELEMENT,1800W RIBBON,SURFACE | WP8273993 | $243.80 | ||
| 11B | 8273994 | ELEMENT (1200W) (CENTER FRONT) | WP8273994, W11171119 | $0.00 | ||
| 11C | W10799048 | ELEMENT,SURFACE | W11041453 | $102.73 | ||
| 12 | W11179787 | ASSEMBLY, LOKI WIFI | W11260261 | $0.00 | ||
| 13 | 4455917 | HARDWARE | 8186533 | $70.55 | ||
| 14 | 3400093 | SCREW | WP3400093 | $6.31 | ||
| 15 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 16 | W11177346 | SEAL-FOAM | W11260678 | $18.41 | ||
| 17 | N/P | COVER, WIN PORT (NOT SERVICED) | $0.00 | |||
| 18 | W11175302 | RAIL-MTG | W11110713 | $62.59 | ||
| 19 | W11175346 | RAIL-MTG | $62.59 | |||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W11111811 | HARNS-WIRE | $203.21 | |||
| NI | 3400015 | SCREW | WP3400015 | $5.09 | ||
| NI | 7101P520-60 | SCREW | WP74005233 | $5.34 | ||
| NI | 7103P027-60 | NUT 10-32 UNF .375 HEX | WP7103P027-60 | $5.87 | ||
| NI | 3192439 | SEAL,SWITCH | W10491984 | $8.61 | ||
| NI | 8286642 | TAPE | WP8286642 | $114.59 | ||
| NI | W11160362 | INSULATION | W11260679 | $73.58 |
*The price can change whitout warning
