Brand: Maytag
Model: MED6200KW0 - LAUNDRY, RESIDENTIAL, ELECTRIC DRYER

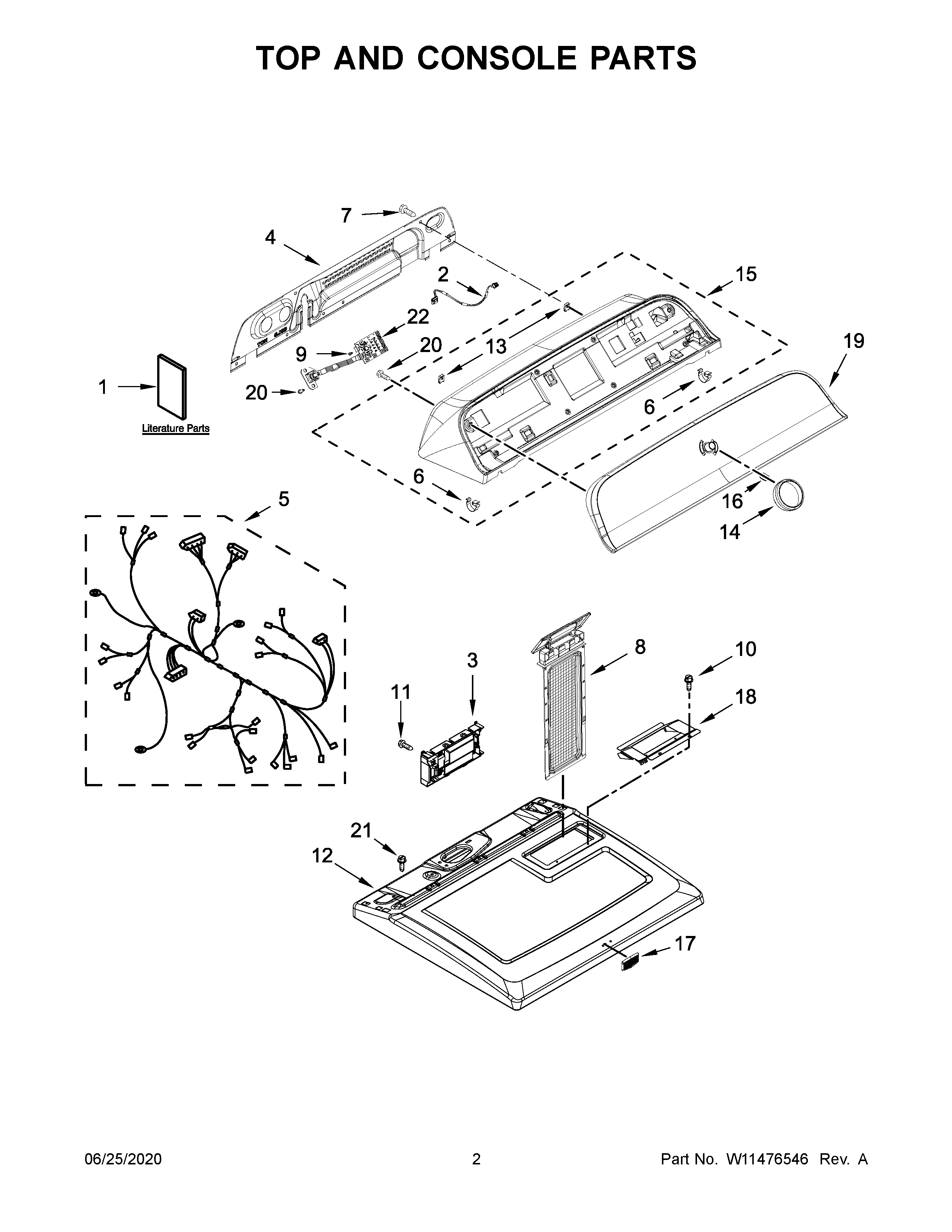

02 - TOP AND CONSOLE PARTS
- 01 - COVER SHEET
- 02 - TOP AND CONSOLE PARTS
- 03 - CABINET PARTS
- 04 - BULKHEAD PARTS
- 05 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11364660 | OWNERS MANUAL | $0.00 | |||
| 1A | W11432655 | TECH SHEET | $0.00 | |||
| 1B | W11411572 | QUICK START GUIDE | $0.00 | |||
| 2 | W11416055 | HARNS-WIRE | $29.68 | |||
| 3 | W11412409 | CONTROL BOARD | W11481107 | $282.62 | ||
| 4 | W10775189 | PANEL-REAR | $315.52 | |||
| 5 | W11364723 | HARNS-WIRE | $171.46 | |||
| 6 | 8312709 | CLIP | WP8312709 | $17.47 | ||
| 7 | 8533971 | SCREW | WP90767 | $6.30 | ||
| 8 | W10717211 | LINT SCREEN (WHITE) | W11522757, W11603116 | $0.00 | ||
| 9 | 8540727 | SCREW | 8182201 | $11.46 | ||
| 10 | 688983 | SCREW | W11693756 | $11.19 | ||
| 11 | 3348629 | SCREW | WP90767 | $6.30 | ||
| 12 | W10613389 | TOP | W11222514 | $181.05 | ||
| 13 | W10298336 | NUT | W11213336 | $6.39 | ||
| 15 | W11406485 | CONSOLE | $298.73 | |||
| 16 | 8536939 | SPRING CLIP KNOB | WP8536939 | $7.03 | ||
| 17 | W10612925 | NAMEPLATE | WPW10612925 | $34.16 | ||
| 18 | W10662472 | COVER | $56.41 | |||
| 19 | W11406484 | OVERLAY | $169.99 | |||
| 20 | 9740848 | SCREW | WP9740848 | $5.09 | ||
| 21 | 343641 | SCREW | WP681414 | $5.80 | ||
| 22 | W11374901 | ENCODER | W11627521 | $260.54 |
*The price can change whitout warning
