Brand: Maytag
Model: WU1000 - RANGE/OVEN, GAS

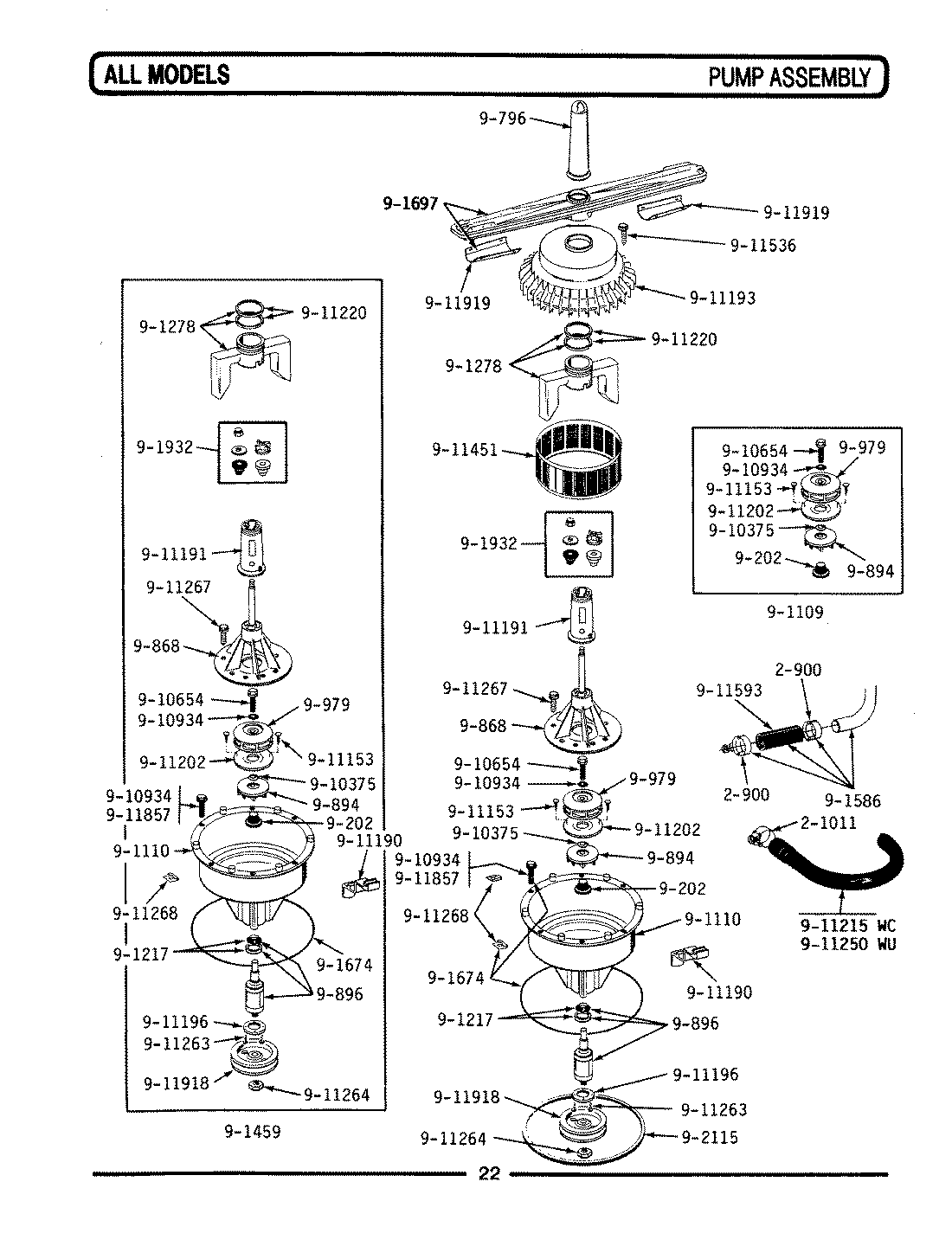

06 - PUMP ASSEMBLY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 200900 | CLAMP | WPW10548433 | $2.14 | ||
| 2 | 201011 | CLAMP | WP285655 | $5.88 | ||
| 3 | 900202 | SEAL ASSEMBLY | $0.00 | |||
| 4 | 900796 | NOZZLE | $24.17 | |||
| 5 | 900868 | PUMP COVER | $0.00 | |||
| 6 | 900894 | IMPELLER | $15.70 | |||
| 7 | 900896 | PUMP SHAFT & BEARING ASSM. | $0.00 | |||
| 8 | 900979 | CIRCULATING IMPELLER | $0.00 | |||
| 9 | 901109 | PUMP REPAIR KIT | $0.00 | |||
| 10 | 901110 | PUMP HOUSING ASSEMBLY | $0.00 | |||
| 11 | 901217 | SLINGER AND DEFLECTOR KIT | $0.00 | |||
| 12 | 901278 | RINSE ARM WITH SEAL RINGS | $0.00 | |||
| 13 | 901459 | PUMP REPAIR ASSEMBLY | $0.00 | |||
| 14 | 901586 | TOP SPRAY HOSE W/COUPLING | $0.00 | |||
| 15 | 901674 | GASKET WITH FASTENERS | $0.00 | |||
| 16 | 901697 | WASHARM | $65.53 | |||
| 17 | 901932 | BEARING KIT F/LOWER WASH AR | $0.00 | |||
| 18 | 902115 | DISHWASHER PUMP BELT | 6-9021150 | $59.51 | ||
| 19 | 910375 | SEAL | $0.00 | |||
| 20 | 910654 | SCREW | $0.00 | |||
| 21 | 910934 | O-RING | WP910934 | $6.32 | ||
| 22 | 911153 | SCREW | $0.00 | |||
| 23 | 911190 | INSERT | $10.49 | |||
| 24 | 911191 | BEARING | $3.08 | |||
| 25 | 911193 | COVER | $9.58 | |||
| 26 | Y911196 | RETAINER FOR BEARING | $0.00 | |||
| 27 | Y911202 | BAFFLE FOR PUMP | $0.00 | |||
| 28 | 911220 | SEAL RING FOR STRAINER | $0.00 | |||
| 29 | 911250 | DRAIN HOSE | $0.00 | |||
| 30 | Y911263 | SCREW | $0.60 | |||
| 31 | Y911264 | HEX NUT, PULLEY TO SHAFT | $0.00 | |||
| 32 | 911267 | SCREW, PUMP COVER | $0.00 | |||
| 33 | 911268 | FASTENER | $0.00 | |||
| 34 | 911451 | FILTER | $0.00 | |||
| 35 | 911536 | SCREW | $0.00 | |||
| 36 | 911593 | RUBBER COUPLING | $0.00 | |||
| 37 | 911857 | SCREW | $0.00 | |||
| 38 | 911918 | PUMP PULLEY | $7.76 | |||
| 39 | 911919 | RADIANT SHIELD | $0.00 |
*The price can change whitout warning
