Brand: Electrolux

Model: FGMV174KMC - MICROWAVE OVEN

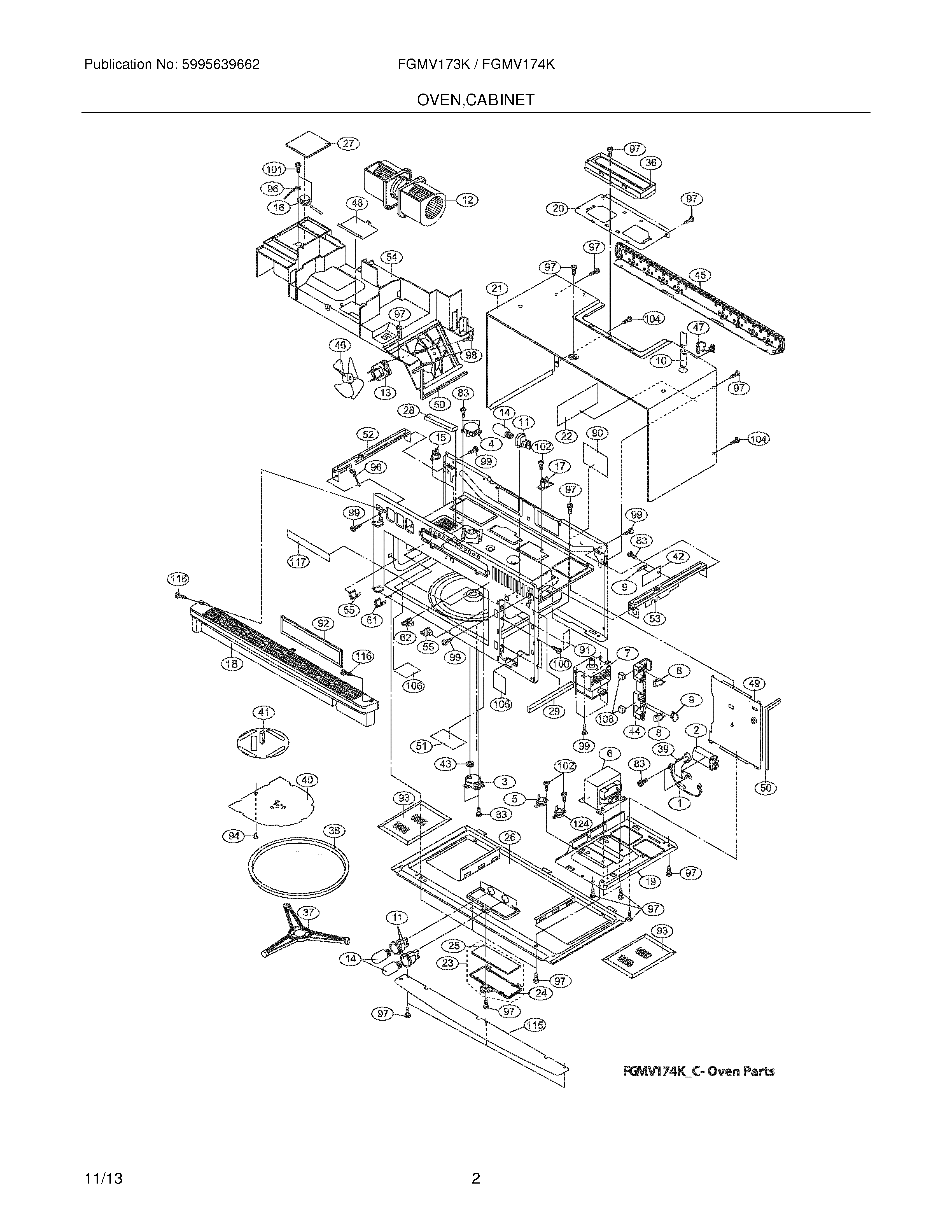

03 - OVEN,CABINET

FGMV174KMC
Plan number Part Number Description Replacement Price
1 5304467670 RECTIFIER, HIGH VOLTAGE   $55.90
2 5304470539 CAPACITOR,HIGH VOLTAGE   $148.05
3 5304440021 MOTOR,TURNTABLE   $82.00
4 5304440022 Motor,stirrer fan   $0.00
5 5304440023 THERMAL SWITCH, N.O.60   $59.50
6 5304468156 Transformer,power   $0.00
7 5304463439 MAGNETRON   $264.15
8 5304440026 SWITCH,INTERLOCK,DOOR SENSOR 5304493153   $50.80
9 5304467695 MONITOR SWITCH   $50.80
10 5304440028 POWER CORD,ELECTRIC   $121.90
11 5304461117 SOCKET-LIGHT/LAMP 5303319561   $61.70
12 5304492945 Motor,hood fan   $0.00
13 5304448490 MOTOR,COOLING FAN 5304493152   $85.65
14 5304440031 LAMP,INCANDESCET 20W   $13.05
15 5304440032 Thermal Cutout,oven cavity 5304502765   $0.00
16 5304440033 Sensor,humidity ,cook control   $0.00
17 5303319550 FUSE THERMAL CUT OUT   $119.75
18 5304473795 Grille,exhaust ,silver   $0.00
19 5304473797 Plate,base ,right   $0.00
20 5304468162 Plate,rear stay   $0.00
21 5304468164 Cabinet,outer casing ,black   $0.00
22 5304473798 Wiring Diagram,schematic ,label   $0.00
23 5303319573 COVER ASSY   $111.75
24 5303319574 Frame,lens holder ,black   $0.00
25 5303319575 LITE COVER   $111.05
26 5304473800 Cover,unit base ,black 5304485417   $0.00
27 5304468170 Cushion,hood duct   $0.00
28 5304468173 Cushion,top panel ,rubber   $0.00
29 5304451500 Cushion,magnetron   $0.00
36 5304464343 DAMPER ASSEMBLY,EXHAUST   $0.00
37 5304481789 Support Assy,turntable ,roller   $0.00
38 5304440285 TRAY,TURNTABLE,GLASS   $82.75
39 5304468174 Retainer,capacitor strap   $0.00
40 5304468175 COVER,STIRRER FAN   $51.00
41 5304481790 Stirrer Assembly   $0.00
42 5304467698 FILTER,NOISE ELECTRONIC 5304492543   $80.55
43 5304467718 BUSHING MOTOR SHAFT TURNTABLE   $19.60
44 5304440289 HOOK,LATCH   $97.25
45 5304468135 REAR MOUNTING PLATE BRACKET   $102.35
46 5304468177 Fan Blade,mag cooling fan   $0.00
47 5304467721 Bushing,grommet ,power cord   $0.00
48 5304468178 Cover,oven lamp   $0.00
49 5304468179 Duct,hood intake ,right side   $0.00
50 5304468180 Cushion,intake duct ,seal   $0.00
51 5304467727 LENS,LAMP FILTER   $5.40
52 5304481791 Support,chassis ,left side ,w/captive nut   $0.00
53 5304481792 Support,chassis ,right side ,w/captive nut   $0.00
54 5304468183 Duct,exhaust hood   $0.00
55 5304467733 Support,rack ,front   $0.00
61 5304467762 SUPPORT RACK LEFT REAR   $14.65
62 5304467763 Support,rack ,right rear   $0.00
83 5304451550 SCREW 4 MM X 8 MM   $12.35
90 5304467770 LABEL,CAUTION-DHHS   $3.65
91 5304467771 LABEL,CAUTION-MONITOR   $3.65
92 5304440335 CARBON FILTER, FAN I   $51.55
93 5303319568 FILTER - GREASE   $37.75
94 5304467773 CLIP,CANOE TYPE,STIRRER COVER   $55.90
96 5304467828 Wire,ground   $0.00
97 5304451552 SCREW,4 MM X 8 MM,SILVER 5304502863   $10.90
97 5304467777 SCREW 4 MM X 8 MM BLACK   $16.70
98 5304462315 SCREW, 4 MM X 12 MM, GROUND   $13.80
99 5304467780 SCREW 4 MM X 8 MM TAP TIGHT   $13.80
100 5303319641 SCREW DOOR LATCH UPR HINGE   $13.05
101 5304467778 Screw,3 mm x 8 mm   $0.00
102 5304467781 Screw,3 mm x 6 mm   $0.00
104 5304451557 Screw,4 mm x 12 mm 5304454541   $0.00
106 5304468191 Label,Caution-DHHS   $0.00
108 5304467769 Cushion,latch hook ,pad   $0.00
115 5304473803 Deflector,black   $0.00
116 5304467710 SCREW 3 MM X 8 MM   $14.50
117 5304473805 Label,menu   $0.00
124 5304467699 THERMAL CUTOUT,OVEN CAVITY   $29.05
*The price can change whitout warning
