Marque: Whirlpool
Modèle: RAL5144BW1

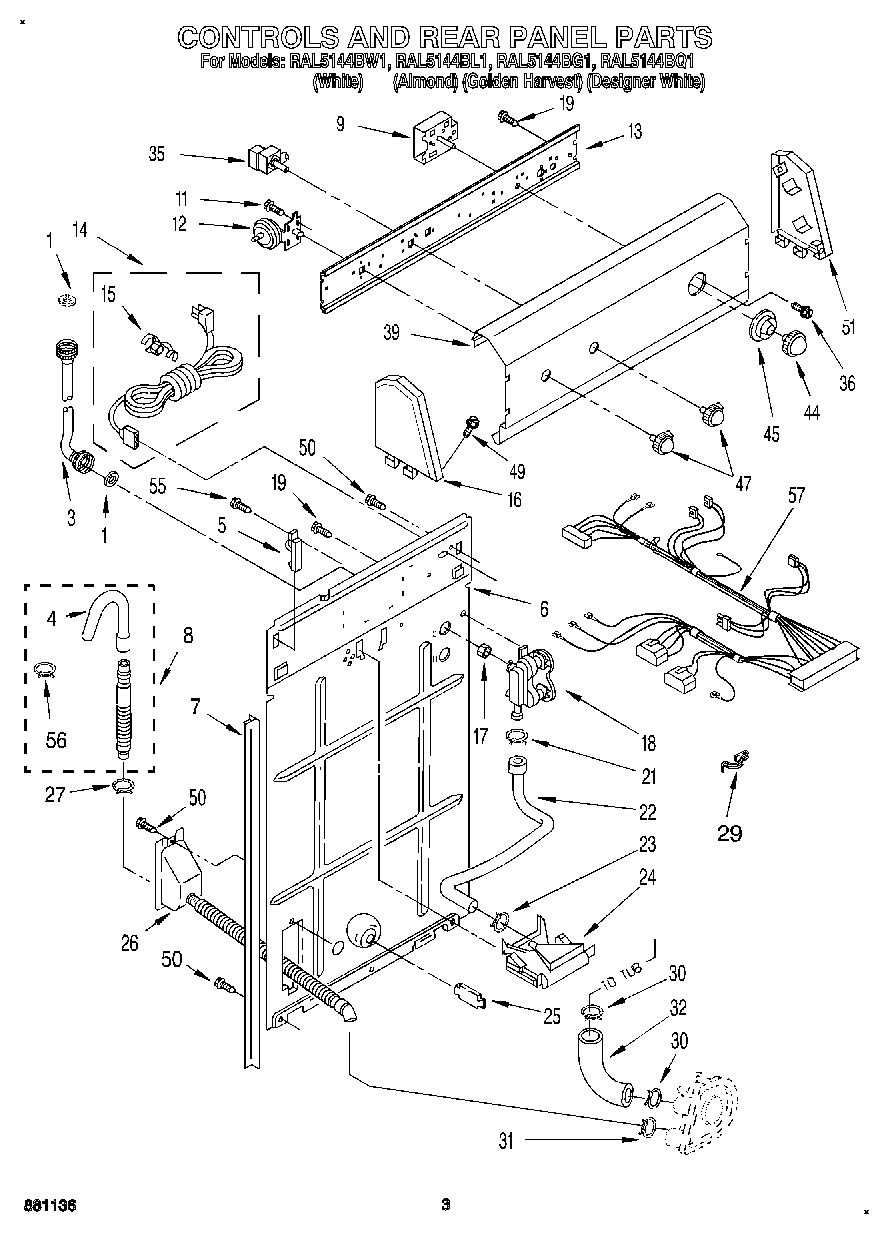

02 - CONTROLS AND REAR PANEL
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 16123 | Washer, Water Inlet Hose (4) (1-1/16 x 5/8) | WP16123 | |||
| 3 | 3354858 | BOYAU D'EMPLISSAGE | WP89503 | 18,19$ | ||
| 4 | 3357027 | Nozzle-Drain Hose | WP3357027 | |||
| 5 | 387402 | PENTURE | WP387402 | 6,27$ | ||
| 6 | 3357978 | Panel, Rear | WP3357978 | |||
| 7 | 62747 | Pad, Rear Panel | WP62747 | |||
| 8 | 661575 | BOYAU DE VIDANGE | 285664 | 46,40$ | ||
| 8 | 661577 | Hose, Drain (9`- 9``) (Not Included) | 285666 | |||
| 8 | 3357090 | Extension, Drain Hose (21 Inches) (Not Included) | 285702 | |||
| 9 | 3946450 | Timer, Control (60 Hz.) (Motor Not A Service Part) | ||||
| 11 | 90767 | VIS | WP90767 | 6,30$ | ||
| 12 | 3356466 | Switch, Water Level | W10852420 | |||
| 13 | 3360936 | Bracket, Control | WP3948608 | |||
| 14 | 3360514 | Cord, Power | 285800, W10820044 | |||
| 15 | 63848 | Strain Relief, Power Cord | 285777 | |||
| 16 | 3358016 | EMBOUT | 285856 | 4,10$ | ||
| 16 | 3358018 | Cap, End (L.H.) (For Designer White Model) | ||||
| 17 | 96160 | Screen, Filter (2) | WP96160 | |||
| 18 | 3360392 | ELECTROVANNE DE LAVEUSE | 285805 | 51,18$ | ||
| 19 | 90864 | VIS | WP3351614 | 6,64$ | ||
| 21 | 370451 | COLLET | WP596669 | 6,27$ | ||
| 22 | 3357328 | BOYAU | WP3357328 | 18,20$ | ||
| 23 | 371503 | COLLET | WP596669 | 6,27$ | ||
| 24 | 3347034 | BUSE D'ARRIVEE D'EAU | WP3347034 | 48,85$ | ||
| 25 | 63290 | SUPPORT | WP8519200 | 14,36$ | ||
| 26 | 3361805 | BOYAU - POMPE A CABINET | WPW10358149 | 32,89$ | ||
| 27 | 356138 | COLLET | WP356138 | 6,27$ | ||
| 29 | 3347812 | Clip, Wiring Harness | 8528351 | |||
| 30 | 371502 | Clamp, Hose | WP371502 | |||
| 31 | 660628 | COLLET | WP285655 | 5,88$ | ||
| 32 | 62731 | BOYAU | 285871 | 20,33$ | ||
| 35 | 3361220 | Switch, Water Temperature | ||||
| 36 | 96435 | Screw, Timer Mounting (10-32 x 1) (2) | WP356418 | |||
| 39 | 3361537 | Panel, Console (For White, Almond & Gold Models) | ||||
| 39 | 3361539 | Panel, Console (For Designer White Model) | ||||
| 44 | 3352173 | BOUTON | 280193 | 33,87$ | ||
| 44 | 3354740 | Knob, Timer (For Designer White Model) | ||||
| 45 | 3946332 | Dial, Timer (For White, Almond & Gold Models) | ||||
| 45 | 3946344 | Dial, Timer (For Designer White Model) | ||||
| 47 | 3352167 | Knob, Water Temperature (For White, Almond & Gold Model) | ||||
| 47 | 3354748 | Knob, Water Temperature (For Designer White Model) | ||||
| 49 | 3353145 | Screw, Console (Panel to Top) | WP388326 | |||
| 50 | 62863 | VIS | WP3390631 | 6,32$ | ||
| 51 | 3357998 | EMBOUT | 285856 | 4,10$ | ||
| 51 | 3358000 | Cap, End (R.H.) (For Designer White Model) | ||||
| 55 | 3357011 | VIS | WP308685 | 6,11$ | ||
| 56 | 3357331 | Clamp, Drain Hose | WP3357331 | |||
| 57 | 3359836 | Harness, Wiring (For Detail See Wiring Harness Parts Page) |
*Le prix peut changer sans préavis
