Marque: Whirlpool
Modèle: SF3300EPW0

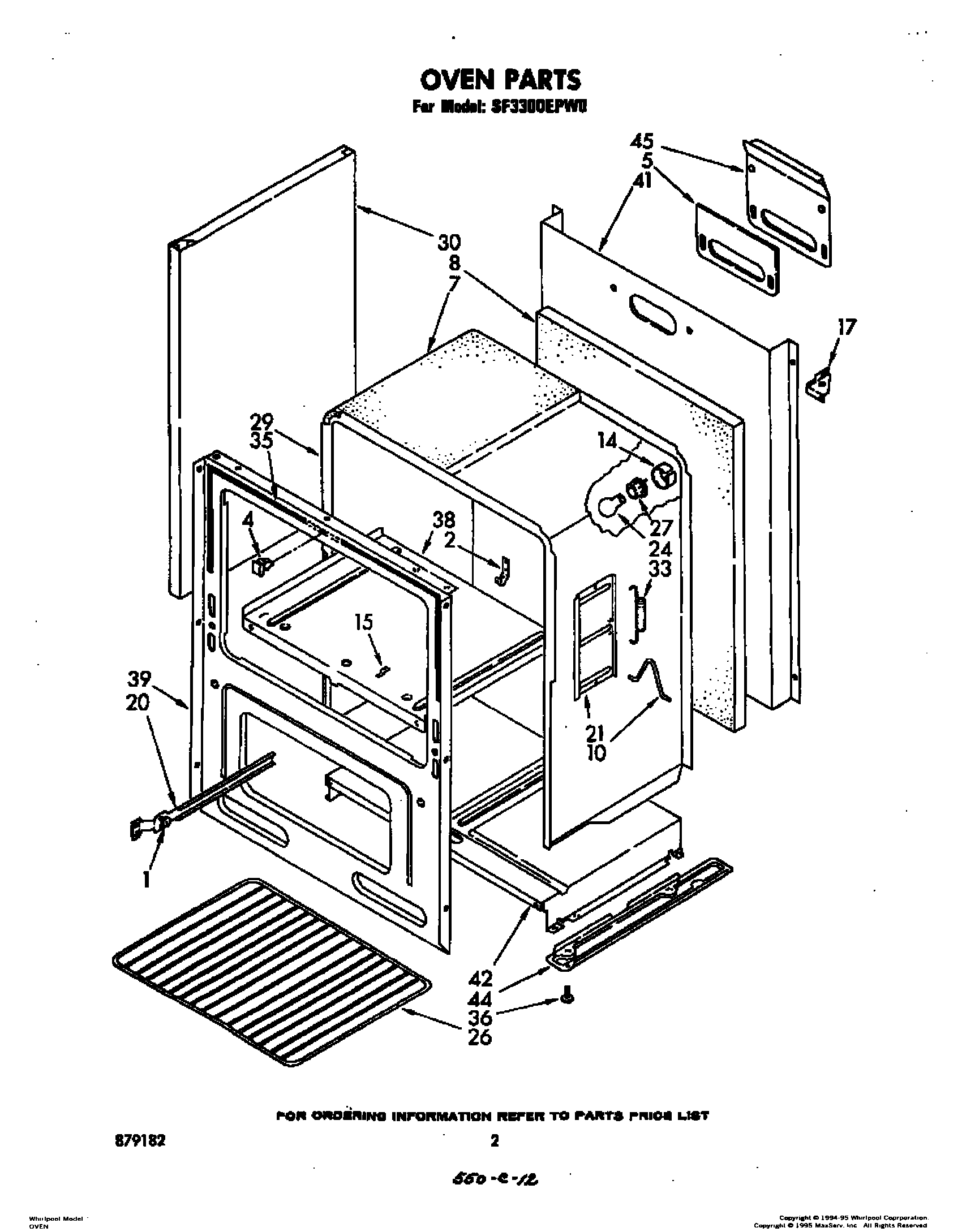

02 - OVEN, LIT/OPTIONAL
- 02 - OVEN, LIT/OPTIONAL
- 03 - COOKTOP
- 04 - MANIFOLD
- 05 - OVEN DOOR AND BROILER
- 06 - BACKGUARD
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 878077 | Bearing, Roller (4) | ||||
| 2 | 878993 | ATTACHE | 98005642 | Appeler pour commander | ||
| 4 | 878084 | Clip, Door Seal | ||||
| 5 | 878088 | Gasket, Vent Deflector | ||||
| 7 | 878092 | ISOLATION | WPW10208653 | Appeler pour commander | ||
| 8 | 878093 | ISOLATION | WPW10208653 | Appeler pour commander | ||
| 10 | 878094 | Link, Oven Door Spring (2) | ||||
| 14 | 878103 | Sleeve, Light Hole | ||||
| 15 | 878107 | Clip, Oven Bottom Plate | ||||
| 17 | 878718 | Bracket, Corner Support (Left Side) | ||||
| 17 | 878717 | Bracket, Corner Support (Right Side) | ||||
| 20 | 878114 | Track, Broiler (Left Side) | ||||
| 20 | 878113 | Track, Broiler (Right Side) | ||||
| 21 | 878117 | Cover, Hinge (2) | ||||
| 24 | 878937 | Blub, Oven Light | 8009, 40A15F, WG03F02051 | |||
| 26 | 878123 | Rack, Oven (2) | ||||
| 27 | 878124 | Socket, Oven Light | ||||
| 29 | Oven 30`` Continuous Clean (Not Serviceable) | |||||
| 30 | 878129 | Panel, End (2) (Almond) | ||||
| 30 | 878128 | Panel, End (2) (White) | ||||
| 30 | 879081 | Panel, End (2) (Toast) | ||||
| 30 | 879082 | Panel, End (2) (Platinum) | ||||
| 33 | 878142 | Spring, Oven Door (2) | ||||
| 35 | 878004 | Seal, Oven Door (Side (2)) | ||||
| 35 | 878003 | Seal, Oven Door (Top) | ||||
| 36 | 878417 | Screw, Leveling (4) | ||||
| 38 | 879039 | Plate, Oven Bottom | ||||
| 39 | 879053 | Front, Main | ||||
| 41 | 879016 | Back, Main | ||||
| 42 | 878180 | Bottom, Main | ||||
| 44 | 878181 | Runner, Base (Left Side) | ||||
| 44 | 878182 | Runner, Base (Right Side) | ||||
| 45 | 878477 | Deflector, Vent | ||||
| LIT878072 | Guide, Use & Care | |||||
| LIT878063 | Instructions, Installation | |||||
| LIT878927 | Diagram, Installation Instructions | |||||
| LIT878924 | Diagram, Wiring | |||||
| LIT879182 | List, Repair Parts |
*Le prix peut changer sans préavis
