Marque: Whirlpool
Modèle: RT14ZKXDW00

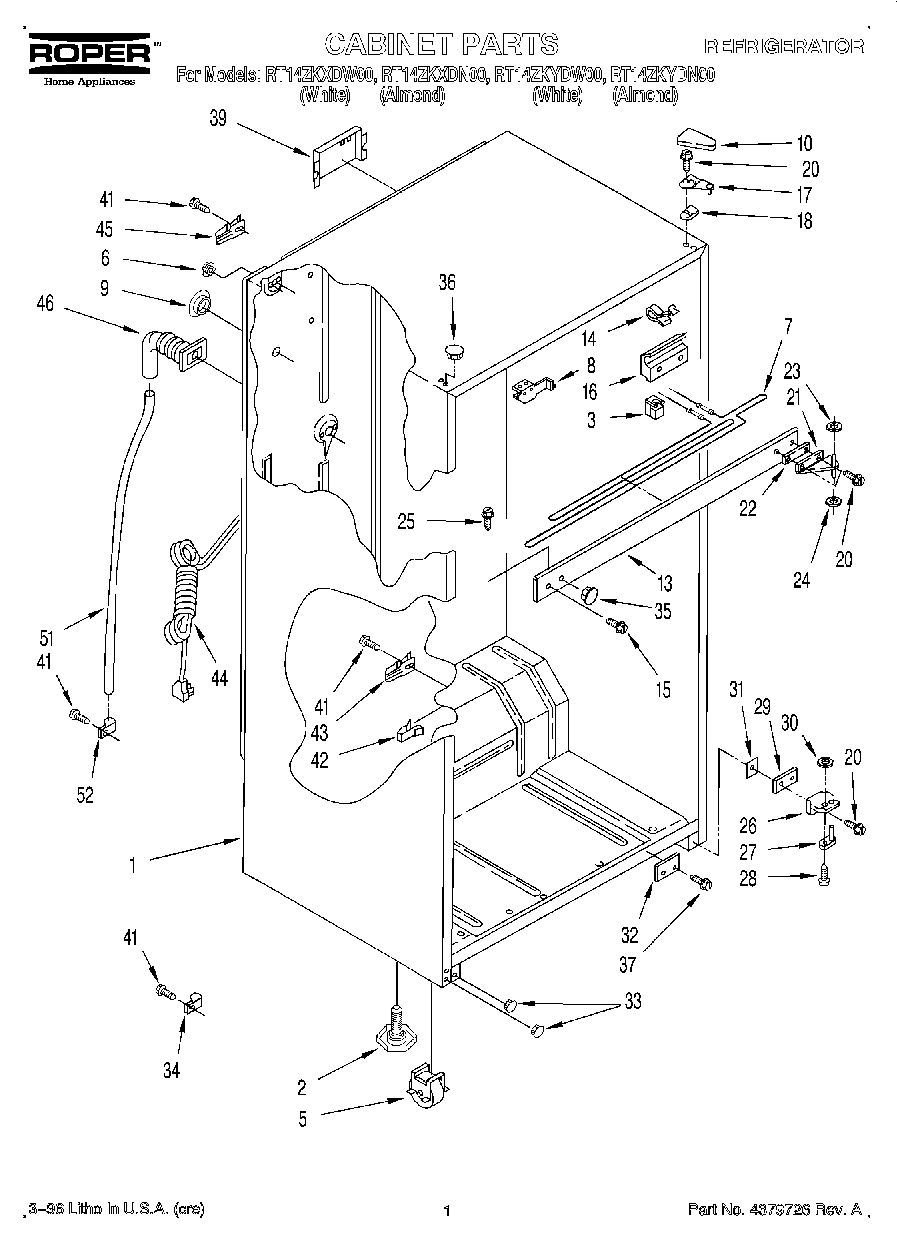

01 - CABINET


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | N/A | Cabinet (Not A Serviceable Part) | 0,00$ | |||
2 | 939005 | LEVELER | W11117769 | 16,64$ | ||
3 | 1116484 | Spacer | 0,00$ | |||
5 | 2152014 | Roller | 0,00$ | |||
6 | 536195 | BUTTON-PLG | 940014 | 0,00$ | ||
7 | 2151374 | Heater, Mullion | 0,00$ | |||
8 | 935692 | Center Rail, Bracket | 0,00$ | |||
9 | 655411 | Hole Plug | 0,00$ | |||
10 | 842010 | COUVERT DE PENTURE | 1119787 | 19,81$ | ||
10 | 989194 | COUVERT DE PENTURE | 1119787 | 19,81$ | ||
13 | 935685 | Center Rail | 0,00$ | |||
14 | 534365 | Breaker, Trim Clip | 0,00$ | |||
15 | 488783 | VIS | WP488729 | 6,39$ | ||
16 | 2151428 | Center, Rail Shim | 0,00$ | |||
17 | 1100513 | Shim, Hinge Top | 0,00$ | |||
18 | 1100511 | Shim, Hinge Top | 0,00$ | |||
20 | 489105 | VIS | WP999367 | 6,47$ | ||
21 | 836153 | Hinge, Center | 0,00$ | |||
22 | 836155 | Shim, Hinge Center | 0,00$ | |||
23 | 487802 | RONDELLE | WP487802 | 6,15$ | ||
24 | 488296 | RONDELLE | WP488296 | 4,72$ | ||
25 | 487900 | VIS | WP488729 | 6,39$ | ||
26 | 1128495 | Hinge Butt, Bottom | 4318006 | 0,00$ | ||
27 | 654366 | Pin, Hinge | 0,00$ | |||
28 | 488714 | Screw (Bottom L.H.) | 0,00$ | |||
29 | 935737 | Shim, Bottom | 0,00$ | |||
30 | 487576 | RONDELLE | WP487576 | 9,15$ | ||
31 | 935743 | Tap Plate | 0,00$ | |||
32 | 935707 | Rail, Cover (White) | 0,00$ | |||
32 | 935711 | Rail, Cover (Almond) | 0,00$ | |||
33 | 941416 | Hole, Plug (2) (White) | 0,00$ | |||
33 | 941417 | Hole, Plug (2) (Almond) | 0,00$ | |||
34 | 488366 | CLAMP | WP488366 | 8,00$ | ||
35 | 1119707 | Hole Plug | 0,00$ | |||
36 | 842031 | Hole Plug (2) (White) | 0,00$ | |||
36 | 989195 | Hole Plug (2) (Almond) | 0,00$ | |||
37 | 488895 | Screw | 0,00$ | |||
39 | 946218 | Cover, Wiring | 0,00$ | |||
41 | 489242 | SCREW | WP489478 | 6,50$ | ||
42 | 939054 | CLIP | W10812038 | 7,50$ | ||
43 | 549193 | CLAMP | 11,21$ | |||
44 | 937360 | Cord, Service | 0,00$ | |||
45 | 937357 | Clamp | 0,00$ | |||
46 | 2150543 | Fitting, Drain | 0,00$ | |||
51 | 509640 | TUBE-DRAIN | 8316810 | 91,87$ | ||
52 | 488946 | CLAMP | 18,06$ |
*Le prix peut changer sans préavis
