Marque: Whirlpool
Modèle: RH203A1

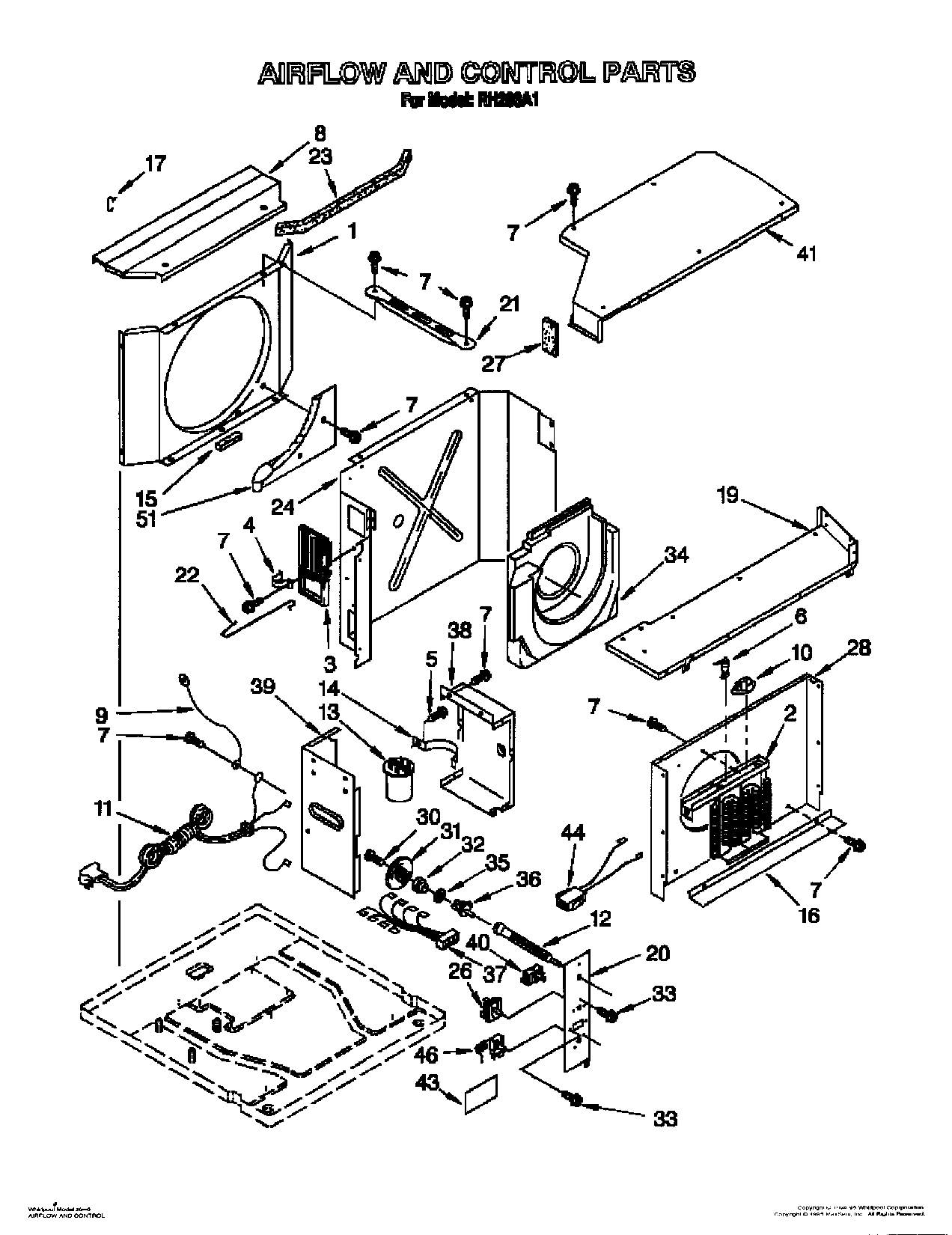

03 - AIRFLOW AND CONTROL PARTS
- 01 - COVER
- 02 - UNIT, LITERATURE
- 03 - AIRFLOW AND CONTROL PARTS
- 04 - CABINET PARTS
- 05 - OPTIONAL PARTS
- 06 - INSTALLATION PARTS
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 1157403 | Shroud, Condenser | ||||
| 2 | 1160715 | Heating, Element | ||||
| 3 | 1160652 | Door, Air | ||||
| 4 | 1160653 | Spring, Door | ||||
| 5 | 1163469 | Screw No.8 - 5/8 | ||||
| 6 | 1160510 | Fuse, Link | ||||
| 7 | 488480 | VIS | WP489069 | Appeler pour commander | ||
| 8 | 1157407 | Top, Condenser | ||||
| 9 | 856094 | Wire, Ground | 857078 | |||
| 10 | 1160509 | Limit Switch | ||||
| 11 | 1167648 | Cable, Appliance | ||||
| 12 | 1161504 | Control, Shaft | ||||
| 13 | 1180126 | Capacitor | 4386873 | |||
| 14 | 1167611 | Bracket, Capacitor | ||||
| 15 | 1163332 | Seal, Condenstate Cup | 1160613 | |||
| 16 | 1160716 | Sheild, Heat | ||||
| 17 | 1164511 | Clip, Shroud (2) | ||||
| 19 | 1160709 | Top, Evaporator Shroud | ||||
| 20 | 1165610 | Panel, Control | ||||
| 21 | 1166169 | Support, Unit (2) | ||||
| 22 | 1161333 | Wire, Control Exhaust | ||||
| 23 | 1158732 | Seal, Shroud | ||||
| 24 | 1161706 | Dividing Wall | ||||
| 26 | 1157749 | Switch Rotary | ||||
| 27 | 1162616 | Seal, Anti-Rub | 1160613 | |||
| 28 | 1161705 | Shroud Assembly, Evaporator | ||||
| 30 | 489092 | Screw, 7-18 x 5/8 | ||||
| 31 | 647882 | Cam, Exhaust | ||||
| 32 | 647879 | Bushing, Shaft | ||||
| 33 | 488734 | Screw, 6-32 x .175 (2) | ||||
| 34 | 1160657 | Housing, Air | ||||
| 35 | 1161313 | Washer | ||||
| 36 | 854369 | Shaft, Control Exhaust | ||||
| 37 | 1167522 | Harness, Wiring - Control Box | ||||
| 38 | 1161714 | Control Box (R.S.) | ||||
| 39 | 1164516 | Control Box (L.S.) | ||||
| 40 | 1159905 | Control, Temp. | ||||
| 41 | 1160710 | Cover, Top | ||||
| 43 | 1159175 | Spacer | ||||
| 44 | 1162061 | Harness, Heater | ||||
| 46 | 1155801 | Control, Temperature | 485758 | |||
| 51 | 1160684 | Cup, Condensate |
