Marque: Whirlpool
Modèle: CS22AFXKS05

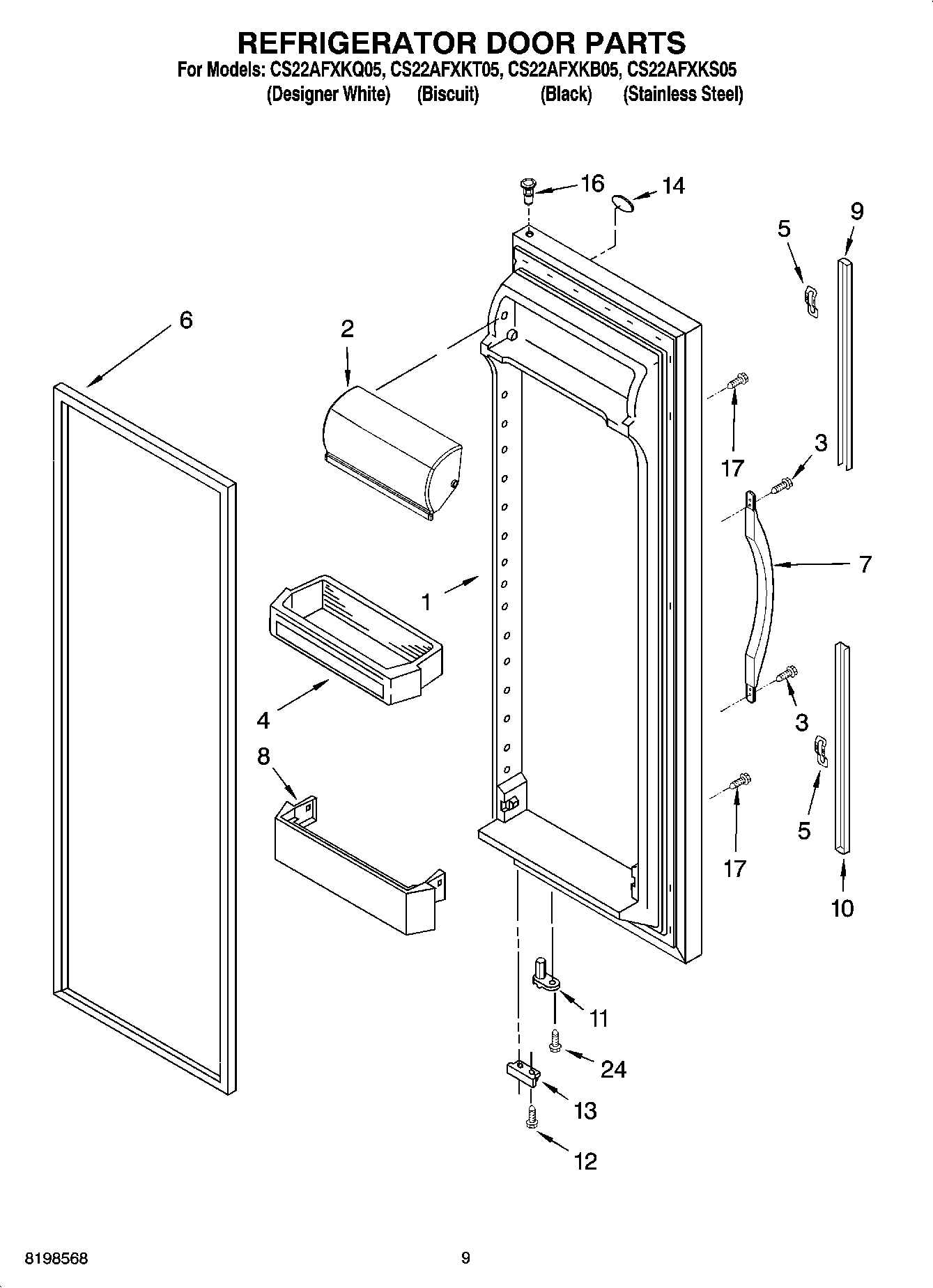

06 - REFRIGERATOR DOOR PARTS
- 01 - CABINET PARTS
- 02 - REFRIGERATOR LINER PARTS
- 03 - REFRIGERATOR SHELF PARTS
- 04 - FREEZER LINER PARTS
- 05 - MOTOR AND ICE CONTAINER PARTS
- 06 - REFRIGERATOR DOOR PARTS
- 07 - FREEZER DOOR PARTS
- 08 - DISPENSER FRONT PARTS
- 09 - UNIT PARTS
- 10 - AIR FLOW PARTS
- 11 - CONTROL PARTS
- 12 - ICEMAKER PARTS, OPTIONAL PARTS


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | 2206716W | Refrigerator Door (Includes Item 6) (White) | L2206716W | 0,00$ | ||
1 | 2206716T | Refrigerator Door (Includes Item 6) (Biscuit) | L2206716T | 0,00$ | ||
1 | 2206716B | Refrigerator Door (Includes Item 6) (Black) | L2206716B | 0,00$ | ||
1 | 2206716SB | Refrigerator Door (Includes Item 6) (Stainless Steel) | L2206716SB | 0,00$ | ||
2 | 2256101 | PORTE-COMP | WP2256101 | 69,09$ | ||
3 | 489491 | SCREW | WP489491 | 6,31$ | ||
4 | 2187172 | BAC-CNTL VR | WP2187172 | 34,13$ | ||
5 | 2195327 | CLIP | WP2195327 | 5,30$ | ||
6 | 2221300 | JOINT DE PORTE | 2159073 | 276,81$ | ||
6 | 2221311 | JOINT DE PORTE | 2159081 | 278,78$ | ||
7 | 2186649W | Handle, Center (White) | 0,00$ | |||
7 | 2186649T | Handle, Center (Biscuit) | 0,00$ | |||
7 | 2186649B | POIGNEE NOIR | WP2186649B | 135,77$ | ||
8 | 2177962 | GARNITURE DE PORTE | WP2177962K | 61,28$ | ||
9 | 2194971W | Extension, Top (White) | 0,00$ | |||
9 | 2194971T | Extension, Top (Biscuit) | 0,00$ | |||
9 | 2194971B | TRIM-HANDL | WP2194971B | 85,20$ | ||
10 | 2194969W | Extension, Bottom (White) | 0,00$ | |||
10 | 2194969T | Extension, Bottom (Biscuit) | 0,00$ | |||
10 | 2194969B | TRIM-HANDL | WP2194969B | 92,05$ | ||
11 | 2182178 | CAME-PORTE | WP2182179 | 4,69$ | ||
12 | 489420 | VIS | WP489483 | 9,37$ | ||
13 | 2206629 | BRACKET | WP2206629B | 32,65$ | ||
13 | 2206629B | BRACKET | WP2206629B | 32,65$ | ||
14 | 2301599W | Nameplate (White) | 0,00$ | |||
14 | 2301599T | Nameplate (Biscuit) | 0,00$ | |||
14 | 2301599B | Nameplate (Black) | 0,00$ | |||
16 | 2308091 | BAGUE | WP2182181 | 6,27$ | ||
17 | 3400852 | SCREW | WP3400852 | 7,83$ | ||
24 | 3400012 | VIS | WP3400012 | 6,32$ |
*Le prix peut changer sans préavis
