Marque: Whirlpool
Modèle: KBFC42FTS08 - REFRIGERATOR, ALL

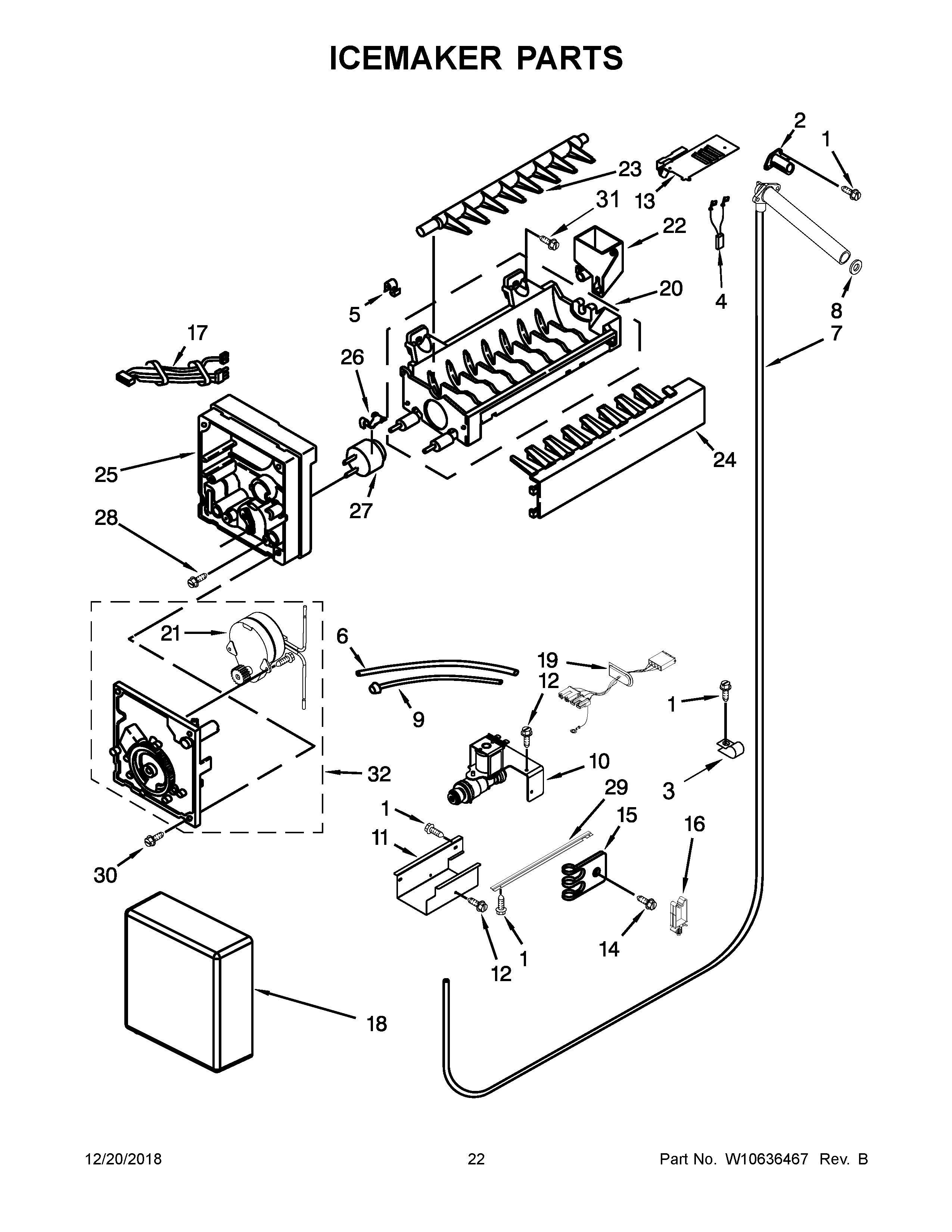

12 - ICEMAKER PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - CABINET TRIM PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - FREEZER LINER PARTS
- 06 - SHELF PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR AND BASKET PARTS
- 09 - TOP GRILLE AND UNIT COVER PARTS
- 10 - UPPER UNIT PARTS
- 11 - LOWER UNIT AND TUBE PARTS
- 12 - ICEMAKER PARTS
- 13 - OPTIONAL PARTS (NOT INCLUDED)
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 486194 | VIS | WP488729 | 6,39$ | ||
| 2 | 2221240 | Heater, Fill Tube | WP2221240 | |||
| 4 | W10482373 | WIRE-JUMPR | 52,05$ | |||
| 5 | 628379 | CLIP | WP628379 | 7,94$ | ||
| 6 | W10296807 | TUBE-WATER | WPW10296807 | 70,57$ | ||
| 7 | 2317847 | TUBE-WATER | 43,20$ | |||
| 8 | 1106508 | GASKET, SEAL | WP1106508 | |||
| 9 | W10437853 | TUBE-WATER | WPW10683737 | 63,66$ | ||
| 10 | 2307650 | VALVE,ADMISSION | WP2307650 | 133,50$ | ||
| 11 | W10129653 | SHIELD | 37,88$ | |||
| 12 | 487294 | SCREW | WP489128 | 9,34$ | ||
| 13 | 2221231 | SHIELD | WP2221231 | 41,88$ | ||
| 14 | W10001250 | VIS | WP489464 | 5,69$ | ||
| 15 | 2208136 | CLAMP | WP488366 | 8,00$ | ||
| 16 | W10129069 | CLIP, TUBE | ||||
| 17 | W10508673 | HARNS-WIRE | 55,46$ | |||
| 18 | W10289690 | COVER-FRNT | WPW10289690 | 6,32$ | ||
| 19 | W10279393 | HARNS-WIRE | 58,50$ | |||
| 20 | W10122527 | ELEMENT | WPW10190929 | 118,79$ | ||
| 21 | N/P | MOTOR (NOT AVAILABLE, ORDER No.32) | ||||
| 22 | W10435665 | TASSE,REMPLISSAGE | 39,14$ | |||
| 23 | 627843 | ARM-EJECTR | WP627843 | 47,70$ | ||
| 24 | W10122563 | EXTRACTEUR,GLACE | WPW10122563 | 50,63$ | ||
| 25 | 2194712 | Support, Housing | WP2195914 | |||
| 26 | 2315522 | CLIP | WP2315522 | 8,02$ | ||
| 27 | 627985 | THERMOSTAT | WP627985 | 45,82$ | ||
| 28 | W10001280 | SCREW | 7,53$ | |||
| 29 | 2320559 | BRACKET | 33,87$ | |||
| 30 | 489276 | VIS | WP681249 | 6,32$ | ||
| 32 | 626691 | MOTEUR-MODULE | 8201515 | 163,65$ | ||
| 33 | W10141596 | SCREW | 7,53$ | |||
| 34 | 488946 | CLAMP | 18,06$ | |||
| 100 | W10277450 | MACHINE A GLACE | WPW10277450 | 242,87$ | ||
| 3 | 488946 | CLAMP | 18,06$ | |||
| 4 | W10482373 | WIRE-JUMPR | 52,05$ | |||
| 7 | 2317847 | TUBE-WATER | 43,20$ | |||
| 9 | W10683737 | TUBE-WATER | WPW10683737 | 63,66$ | ||
| 16 | W10129069 | CLIP, WIRE | ||||
| 17 | W10508673 | HARNS-WIRE | 55,46$ | |||
| 19 | W10279393 | HARNS-WIRE | 58,50$ | |||
| 21 | N/P | MOTOR (NOT AVAILABLE, ORDER #32) | ||||
| 24 | W10699925 | ARM-STRIPR | 38,17$ | |||
| 25 | 2195914 | SUPPORT, HOUSING | WP2195914 | |||
| 31 | W10141596 | SCREW | 7,53$ |
*Le prix peut changer sans préavis
