Marque: Whirlpool
Modèle: RB2000XVN1

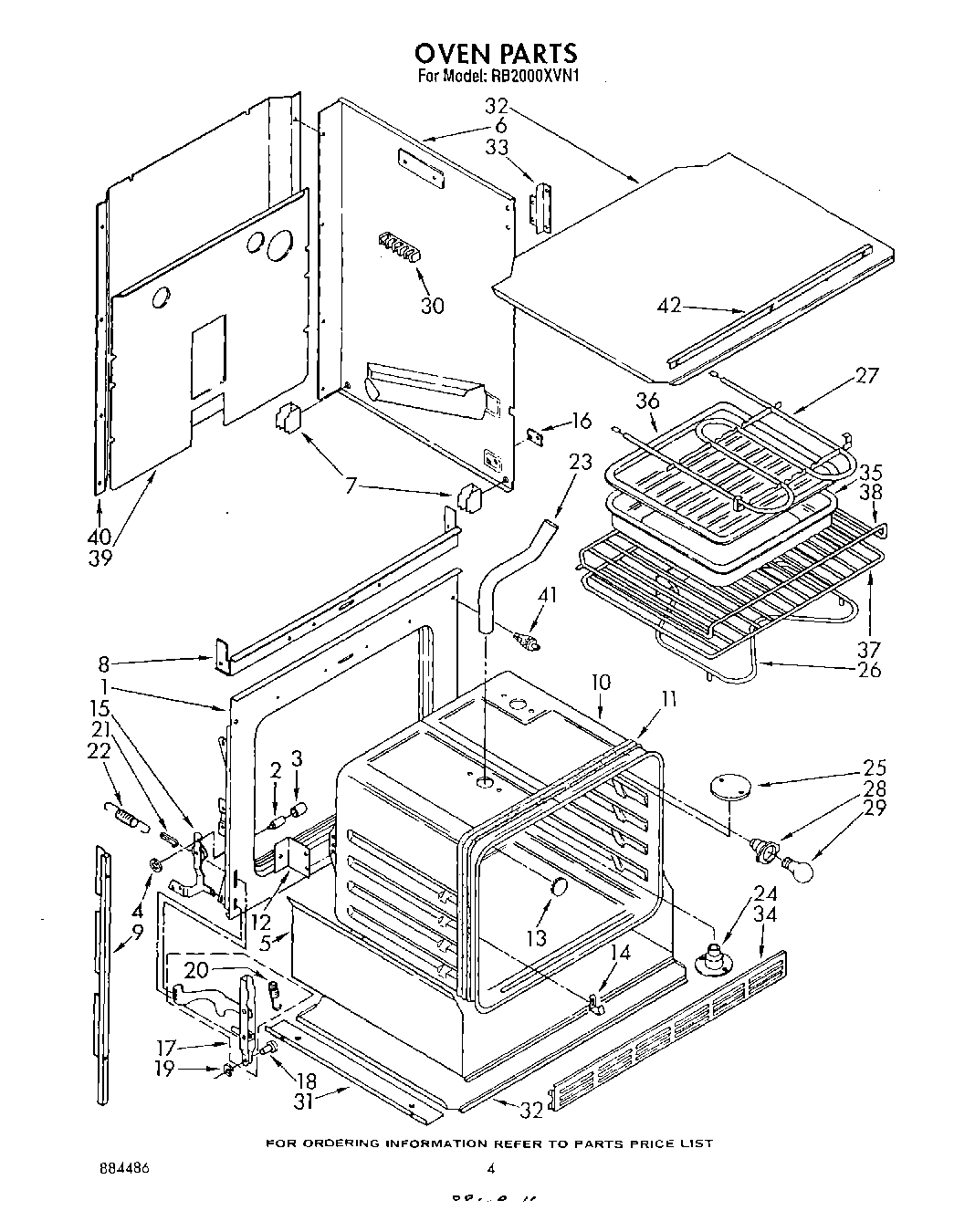

03 - OVEN
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 3172204 | Frame, Front | ||||
| 2 | 307985 | Pin, Hinge Ear (2) | ||||
| 3 | 309111 | Snubber, Door (2) | ||||
| 4 | 308306 | Pushnut (2) | ||||
| 5 | 310770 | Insulation Tray | ||||
| 6 | 311005 | Side Wrapper (R.H.) | 3185953 | |||
| 6 | 311008 | Side Wrapper (L.H.) | 3185956 | |||
| 6 | 3148107 | VIS | WP488729 | 6,39$ | ||
| 7 | 311774 | Support, Side Wrapper (4) | ||||
| 7 | 3148107 | VIS | WP488729 | 6,39$ | ||
| 8 | 310693 | Baffle, Top Insulation | ||||
| 9 | 310689 | Side Trim (R.H.) | ||||
| 9 | 310685 | Side Trim L.H. | ||||
| 9 | 3148107 | VIS | WP488729 | 6,39$ | ||
| 10 | 3172451 | Oven (30`` Conventional) | ||||
| 10 | 311056 | Screw (3) | ||||
| 11 | 309107 | Heat Seal | ||||
| 12 | 310713 | Bracket, Oven Mounting | ||||
| 12 | 343641 | Screw, 10-16 x 1/2 (6) | WP681414 | |||
| 13 | 257314 | Plug Button | 250648 | |||
| 14 | 313382 | ATTACHE | WP313382 | 10,48$ | ||
| 15 | 328801 | Hinge Ear, R.H. | ||||
| 15 | 328802 | Hinge Ear, L.H. | ||||
| 16 | 310659 | Plate, Side Panel (2) | ||||
| 16 | 308544 | screw, 10-24 x 1/2 (4) | WP308544 | |||
| 17 | 329714 | Channel Arm (2) | ||||
| 18 | 307986 | Pin, Hinge (2) | WP307986 | |||
| 19 | 307594 | Ring, Retainer (2) | WP98392 | |||
| 20 | 311092 | Spring, Door Stop (2) | ||||
| 21 | 311897 | Anchor, Spring (2) | WP308125 | |||
| 22 | 308127 | Spring, Oven Door (2) | ||||
| 23 | 310836 | Vent Extension | ||||
| 24 | 310840 | Eliminator, Smoke | ||||
| 24 | 343641 | SCREW, 10-16 X 1/2 | WP681414 | |||
| 24 | 3148107 | VIS | WP488729 | 6,39$ | ||
| 25 | 310662 | Plate, Cover | ||||
| 25 | 3148107 | VIS | WP488729 | 6,39$ | ||
| 26 | 661170 | ELEMENT DE CUISSON | WP308180 | 93,49$ | ||
| 26 | 3150532 | Screw, 10-32 x 5/8 (2) | 486146 | |||
| 27 | 660579 | Unit, Broil 311714 (Alt.) 311713 (Alt.) | WP660579 | |||
| 27 | 3150532 | Screw, 10-32 x 5/8 (4) | 486146 | |||
| 28 | 660556 | Socket, Oven Light 307856 (Alt.) 310208 (Alt.) | ||||
| 28 | 308043 | Screw, 10-12 x 7/8 (2) | ||||
| 29 | 311255 | Bulb, Oven Light | 8009, 40A15F | Appeler pour commander | ||
| 30 | 258076 | BLOC DE RACCORDEMENT | WP8203546 | 23,61$ | ||
| 30 | 112432 | Nut, (3) | WP112432 | |||
| 31 | 311592 | Angle, Support (2) | ||||
| 32 | 310458 | Top & Bottom Cover (2) | ||||
| 32 | 3148107 | VIS | WP488729 | 6,39$ | ||
| 33 | 310719 | Bracket, Control Panel Mounting (2) | ||||
| 33 | 3148107 | VIS | WP488729 | 6,39$ | ||
| 33 | 342055 | screw (4) | WP488627 | |||
| 33 | 307748 | Screw (2) | ||||
| 34 | 310668 | Bottom Grill | ||||
| 34 | 309029 | screw, 8-15 x 1/2 (3) | ||||
| 35 | 3147845 | LECHEFRITE | 4396923 | 41,99$ | ||
| 36 | 3147563 | LECHEFRITE | 4396923 | 41,99$ | ||
| 37 | 308173 | Rack, Oven | WP3185641 | |||
| 38 | 308172 | Oven Rack, Offset | ||||
| 39 | 3149542 | Back Panel | ||||
| 39 | 3148107 | VIS | WP488729 | 6,39$ | ||
| 40 | 311011 | Cover, Rear | ||||
| 40 | 3148107 | VIS | WP488729 | 6,39$ | ||
| 41 | 310345 | Switch, Door | ||||
| 41 | 690989 | Screw 10-32 x 1/2 | WP681414 | |||
| 42 | 312029 | Bracket, Angle | ||||
| 42 | 254225 | Screw (3) |
*Le prix peut changer sans préavis
