Marque: Whirlpool
Modèle: KRSF505EWH00 - REFRIGERATOR, SIDE-BY-SIDE

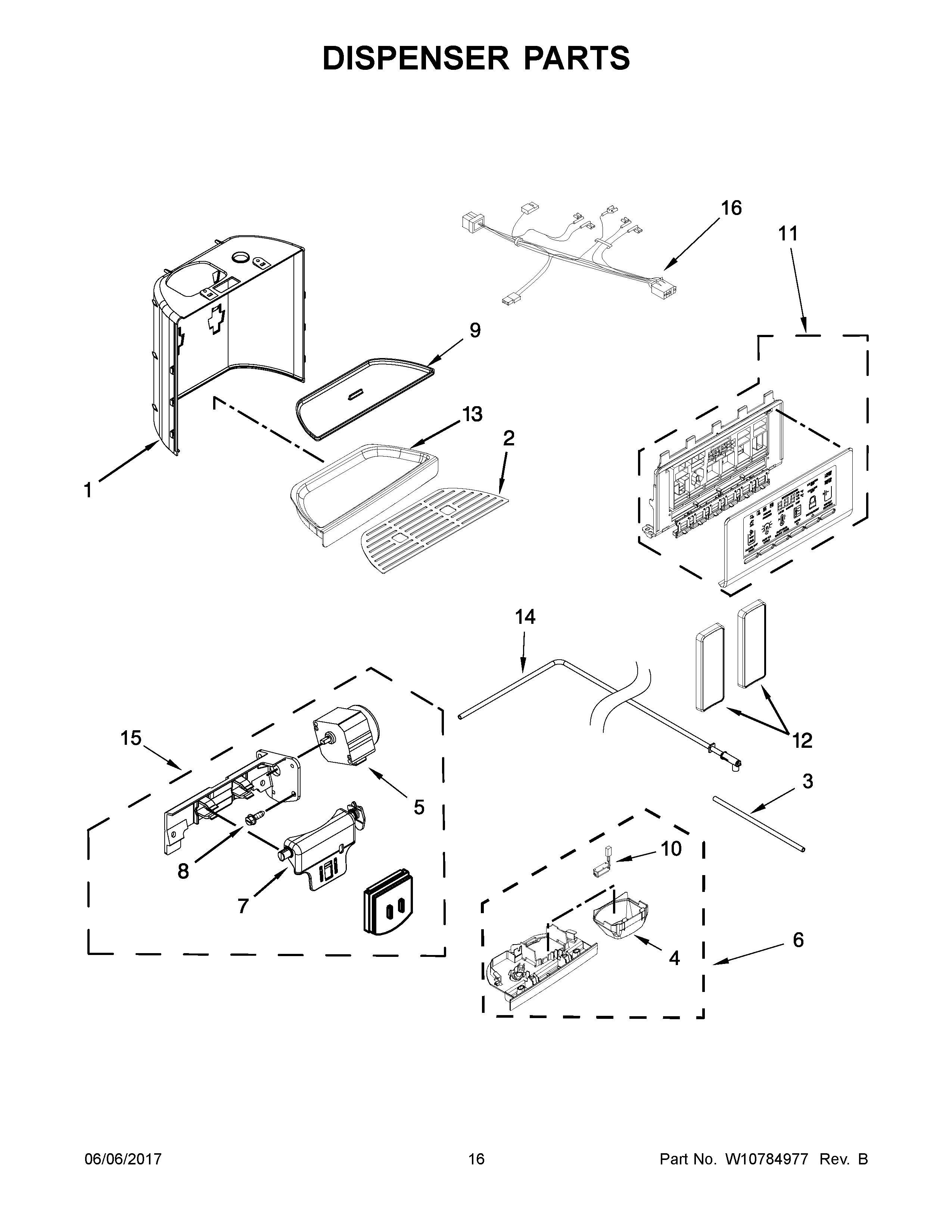

09 - DISPENSER PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - REFRIGERATOR LINER PARTS
- 04 - REFRIGERATOR SHELF PARTS
- 05 - FREEZER LINER PARTS
- 06 - MOTOR AND ICE CONTAINER PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR PARTS
- 09 - DISPENSER PARTS
- 10 - AIR FLOW PARTS
- 11 - UNIT PARTS
- 12 - ICE MAKER PARTS
- 12 - OPTIONAL PARTS (NOT INCLUDED)
- 13 - OPTIONAL PARTS (NOT INCLUDED)
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | W10317258 | FALSE WALL, DISPENSER (WHITE) | ||||
| 1A | W10317259 | FALSE WALL, DISPENSER (BLACK) | ||||
| 1B | W10317255 | FALSE WALL, DISPENSER (STAINLESS) | ||||
| 2 | W10317270 | GRATE, DRIP TRAY | WPW10317270 | |||
| 3 | W10238091 | BOYAU A EAU | WPW10238091 | 57,95$ | ||
| 4 | W10435760 | GUIDE,GLACONS | WPW10435760 | 21,73$ | ||
| 5 | W10205978 | MOTOR, DISPENSER | WPW10205978 | |||
| 6 | W10353593 | ASSEMBLY, SEPERATOR | ||||
| 7 | W10346124 | SUPPORT, ICE DOOR | WPW10346124 | |||
| 8 | 4449745 | SCREW | WP4449745 | |||
| 9 | W10317274 | DRIP TRAY, INSERT (WHITE) | ||||
| 9A | W10317275 | DRIP TRAY, INSERT (BLACK) | ||||
| 9B | W10317276 | DRIP TRAY, INSERT (GREY) | W10859920 | |||
| 10 | W10238083 | ASSEMBLY, LED | W11290115 | |||
| 11 | W10723851 | USER INTERFACE ASSEMBLY | W10822640 | |||
| 12 | W10317250 | PAD, ICE AND WATER (WHITE) | ||||
| 12A | W10317253 | PAD, ICE AND WATER (BLACK) | ||||
| 12B | W10346924 | TAMPON | WPW10346924 | 159,53$ | ||
| 13 | W10317264 | TRAY, HOUSING (WHITE) | ||||
| 13A | W10317265 | TRAY, HOUSING (BLACK) | ||||
| 13B | W10317261 | TRAY, HOUSING (STAINLESS) | WPW10317261 | |||
| 14 | W10386778 | ASSEMBLY, WATER FITTING | WPW10386778 | |||
| 15 | W10347633 | ASSEMBLY, ICE DOOR | W11130210 | |||
| 3 | W10876364 | BOYAU A EAU | WPW10238091 | 57,95$ | ||
| 11 | W10798784 | USER INTERFACE ASSEMBLY | W10822640 | |||
| 15 | W10781990 | ASSEMBLY, ICE DOOR | W11130210 | |||
| 16 | W10605336 | HARNESS, WIRE |
*Le prix peut changer sans préavis
