Marque: Whirlpool
Modèle: 3VET21DKAW00

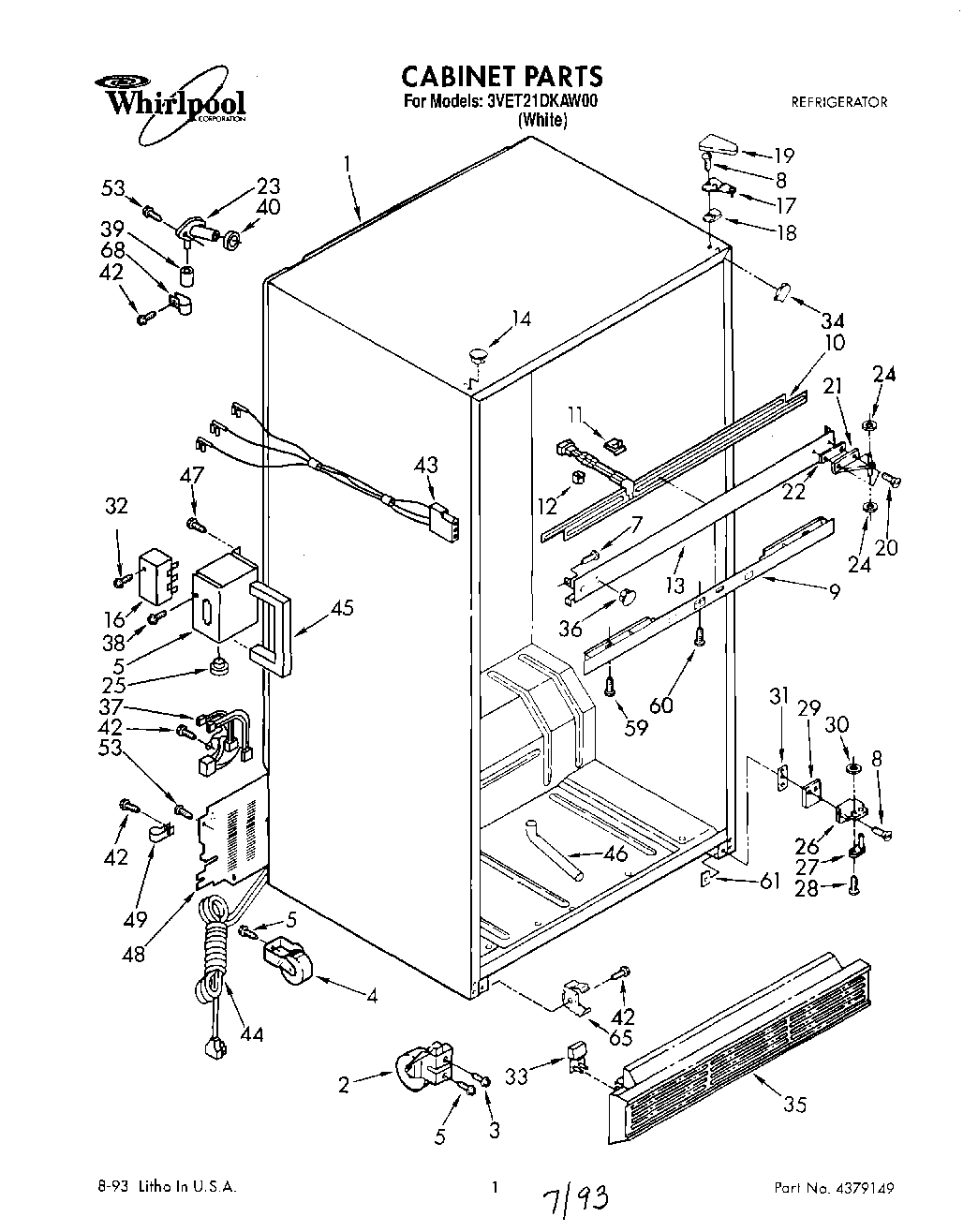

01 - CABINET


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | N/A | Cabinet (Not A Serviceable Part) | 0,00$ | |||
2 | 2152011 | Roller, Front | 0,00$ | |||
3 | 489393 | Screw, 5/16-24 x 1-1/4 | 0,00$ | |||
4 | 981122 | Roller, Rear (2) | WPW10250570 | 0,00$ | ||
5 | 488454 | Screw, 1/4-28 x 1/2 | 0,00$ | |||
7 | 489337 | VIS | WP489464 | 5,69$ | ||
8 | 489367 | VIS | WP999367 | 6,47$ | ||
9 | 2148533 | Control, Front Cover | 0,00$ | |||
10 | 2158635 | Heater, Mullion | 0,00$ | |||
11 | 1129018 | Clip, Center Rail | 0,00$ | |||
12 | 2149077 | Spacer | 0,00$ | |||
13 | 1122566 | Center Rail (White) | 0,00$ | |||
14 | 2151652 | CAPUCHON | WP2151652, WG03L02440 | 17,05$ | ||
15 | 2158579 | Enclosure, Terminal Box | 0,00$ | |||
16 | 1129346 | Terminal Block | 0,00$ | |||
17 | 2157593 | PENTURE-PORTE | WP2189412 | 91,64$ | ||
18 | 2157269 | Shim, Hinge Top | 0,00$ | |||
19 | 2160403 | COUVERT DE PENTURE - BLANC | WP2213360 | 16,88$ | ||
20 | 489105 | VIS | WP999367 | 6,47$ | ||
21 | 2151453 | Hinge, Center | 0,00$ | |||
22 | 836155 | Shim, Hinge Center | 0,00$ | |||
23 | 2154070 | RACCORD | WP2196157 | 6,99$ | ||
24 | 487802 | RONDELLE | WP487802 | 6,15$ | ||
25 | 1129449 | Bushing | 0,00$ | |||
26 | 2148563 | Hinge Butt, Bottom | 836159 | 0,00$ | ||
27 | 654366 | Hinge Pin, Bottom | 0,00$ | |||
28 | 488714 | Screw 10-32 x 5/16 | 0,00$ | |||
29 | 1123379 | Shim, Bottom | 4388138 | 0,00$ | ||
30 | 488184 | RONDELLE | WP487802 | 6,15$ | ||
31 | 1121117 | Spacer | 0,00$ | |||
32 | 489211 | VIS | WPW10272364 | 7,84$ | ||
33 | 1125665 | Corner Filler, Grille (White) | 0,00$ | |||
34 | 1118058 | Filler, Wrap Corner (White) | 2196097 | 0,00$ | ||
35 | 1125663 | Grille (White) | 0,00$ | |||
36 | 1129062 | Hole Plug (5) (White) | 0,00$ | |||
37 | 2165296 | Wiring Assembly, Intermediate | 0,00$ | |||
38 | 489346 | Screw | 0,00$ | |||
39 | 487996 | CAP-TUBE | WP487996 | 7,64$ | ||
40 | 1106508 | JOINT | WP1106508 | 7,22$ | ||
42 | 489242 | SCREW | WP489478 | 6,50$ | ||
43 | 2165297 | HARNS-WIRE | 2209657 | 65,77$ | ||
44 | 1129332 | Service Cord | 0,00$ | |||
45 | 2167227 | Gasket | 0,00$ | |||
46 | 2154119 | Tube, Drain Extension | 0,00$ | |||
47 | 489048 | SCREW | WP250830 | 5,09$ | ||
48 | 2160521 | Cover, Unit | 0,00$ | |||
49 | 489348 | CLAMP-TUBE | 7,53$ | |||
53 | 489084 | VIS | WPW10141645 | 6,28$ | ||
59 | 488725 | VIS | WP488163 | 5,98$ | ||
60 | 489174 | SCREW | WP489174 | 5,30$ | ||
61 | 2147310 | Tap-Plate, Bottom Hinge | 0,00$ | |||
65 | 2155013 | ATTACHE | WP2155013 | 6,27$ | ||
68 | 489385 | CLAMP | WP488366 | 8,00$ |
*Le prix peut changer sans préavis
