Marque: Whirlpool
Modèle: AC2904XM0

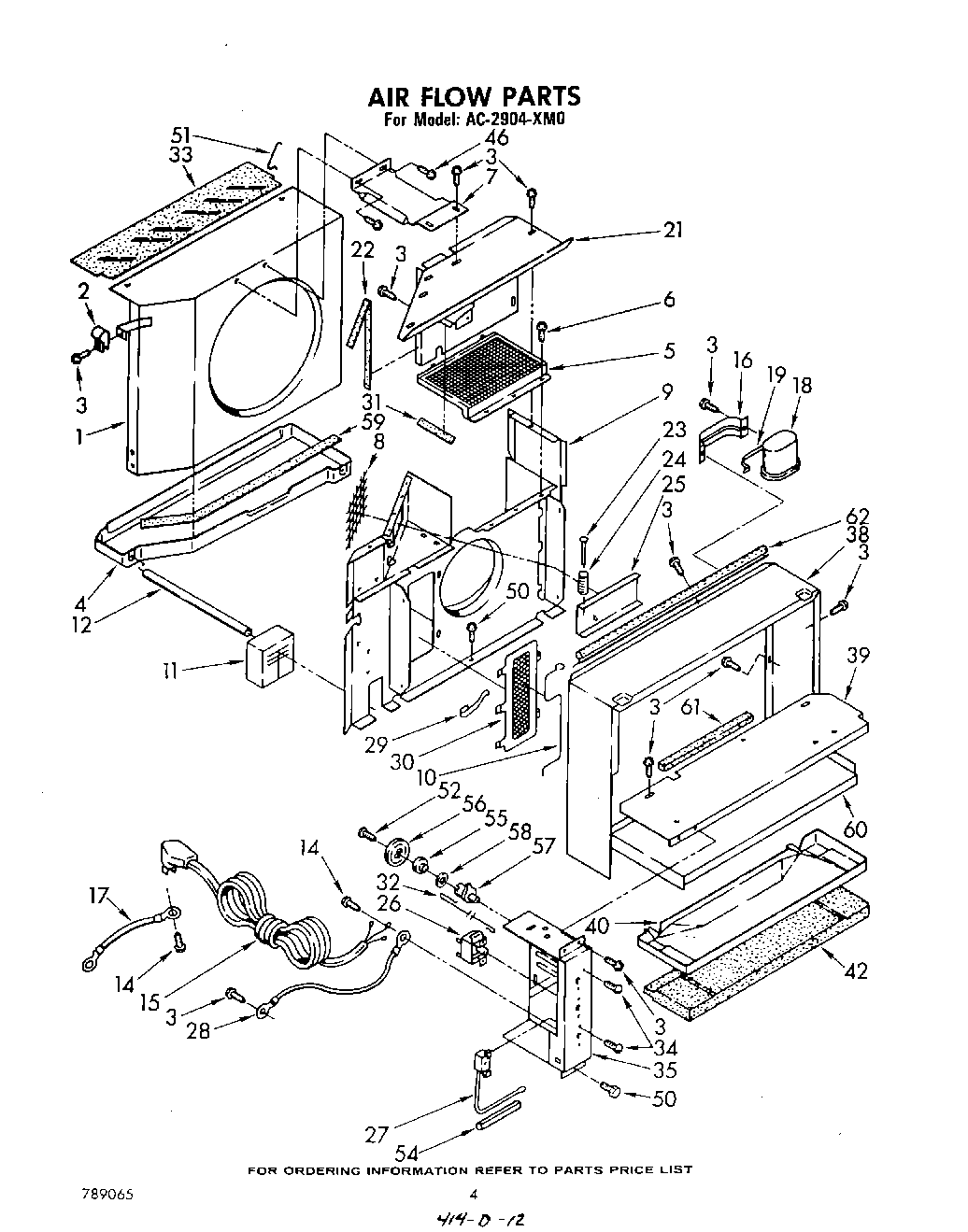

03 - SECTION
- 01 - SECTION
- 02 - SECTION
- 03 - SECTION
- 04 - SECTION
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 475716 | xShroud, Condenser | ||||
| 2 | 43996 | Clamp | ||||
| 3 | 488480 | VIS | WP489069 | Appeler pour commander | ||
| 3 | 488861 | VIS | WP308685 | Appeler pour commander | ||
| 4 | 475709 | Pan, Condenser (Includes Illus. 59) | ||||
| 5 | 856507 | Guard, Evaporator Impeller | ||||
| 6 | 487910 | VIS | WP488729 | Appeler pour commander | ||
| 7 | 475742 | Support, Unit | ||||
| 8 | 470986 | Screen | ||||
| 9 | 998313 | Wall, Dividing | ||||
| 10 | 648138 | Actuator, Fresh Air Door | ||||
| 11 | 856916 | Seal, Tube | ||||
| 12 | 477542 | Tube, Right | ||||
| 12 | 475710 | Tube, Left | ||||
| 14 | 487871 | SCREW | WPW10141604 | Appeler pour commander | ||
| 15 | 644176 | Cable, Appliance | ||||
| 16 | 997218 | Bracket | ||||
| 17 | 998010 | Ground Wire | ||||
| 18 | 998595 | Capacitor, Running | ||||
| 19 | 997215 | Bracket | ||||
| 21 | 998324 | Plate, Back | ||||
| 22 | 475740 | Seal, Lower (R.S.) | 477597 | |||
| 22 | 475741 | Seal, Top (L.S.) | 477597 | |||
| 23 | 471108 | Pin | ||||
| 24 | 471109 | Spring | ||||
| 25 | 473781 | Door, Exhaust | ||||
| 26 | 950520 | Switch, Rotary | ||||
| 27 | 649422 | Control, Temperature | 485760 | |||
| 28 | 856509 | Wire, Ground | 857078 | |||
| 29 | 649428 | Spring, Fresh Air & Exhaust Door | ||||
| 30 | 648137 | Door, Fresh Air | ||||
| 31 | 854528 | SEAL-STRIP | WP854334 | Appeler pour commander | ||
| 32 | 648321 | Wire, Exhaust Control | ||||
| 32 | 648322 | Wire, Fresh Air Control | ||||
| 33 | 855213 | Insulation, Condenser Shroud | ||||
| 34 | 488734 | Screw, 6-32 x .175 | ||||
| 35 | 950551 | Box, Control | ||||
| 38 | 475730 | Cover, Air Duct | ||||
| 39 | 648319 | Cover, Evaporator | ||||
| 40 | 475708 | Pan, Evaporator | ||||
| 42 | 856917 | Insulation | ||||
| 46 | 488624 | Screw, 8 x 3/8 | ||||
| 50 | 487415 | SCREW | WP965173 | Appeler pour commander | ||
| 51 | 477442 | Clip, Shroud (2) | ||||
| 52 | 489092 | Screw, 7-18 x 5/8 | ||||
| 54 | 475841 | Sleeve | ||||
| 55 | 647879 | Bushing, Fresh Air & Exhaust | ||||
| 56 | 648131 | Cam, Fresh Air & Exhaust | ||||
| 57 | 648130 | SHAFT & Exhaust | ||||
| 58 | 647881 | Washer, Spring | ||||
| 59 | 476089 | Seal (2) | 649725 | |||
| 60 | 475711 | Cover (Includes Illus. 61) | ||||
| 61 | 476099 | Strip, Seal (2) | 649725 | |||
| 62 | 475733 | Seal, Cabinet Top | ||||
| 62 | 470168 | SCELLANT | 212643 | Appeler pour commander | ||
| 62 | 469938 | Insulation, Fiberglass (1/4`` x 24`` x 48``) | ||||
| 62 | 649939 | Insulation, Cabinet (5/8`` x 25-11/16`` x 13``) | ||||
| 62 | 797403 | ADHESIF | WP279368 | Appeler pour commander | ||
| 62 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) | ||||
| 62 | 799351 | Blend, Thinner (1 Gal.) | ||||
| 62 | 47261 | Wire, Black (25 Ft.) | ||||
| 62 | 47262 | Wire, Red, (25 Ft.) | ||||
| 62 | 47263 | Wire, White (25 Ft.) | ||||
| 62 | 484066 | COVER-WNTR | Appeler pour commander | |||
| 62 | 950804 | Guide, Consumer Buy | ||||
| 62 | 950355 | Guide, Use & Care | ||||
| 62 | 951026 | Sheet, Service Tech (Service Information) | ||||
| 62 | 951028 | Guide, Energy | ||||
| 62 | 789065 | List, Repair Parts |
*Le prix peut changer sans préavis
