Marque: Whirlpool
Modèle: ET20DKXVF05 - TOP MOUNT REFRIGERATOR

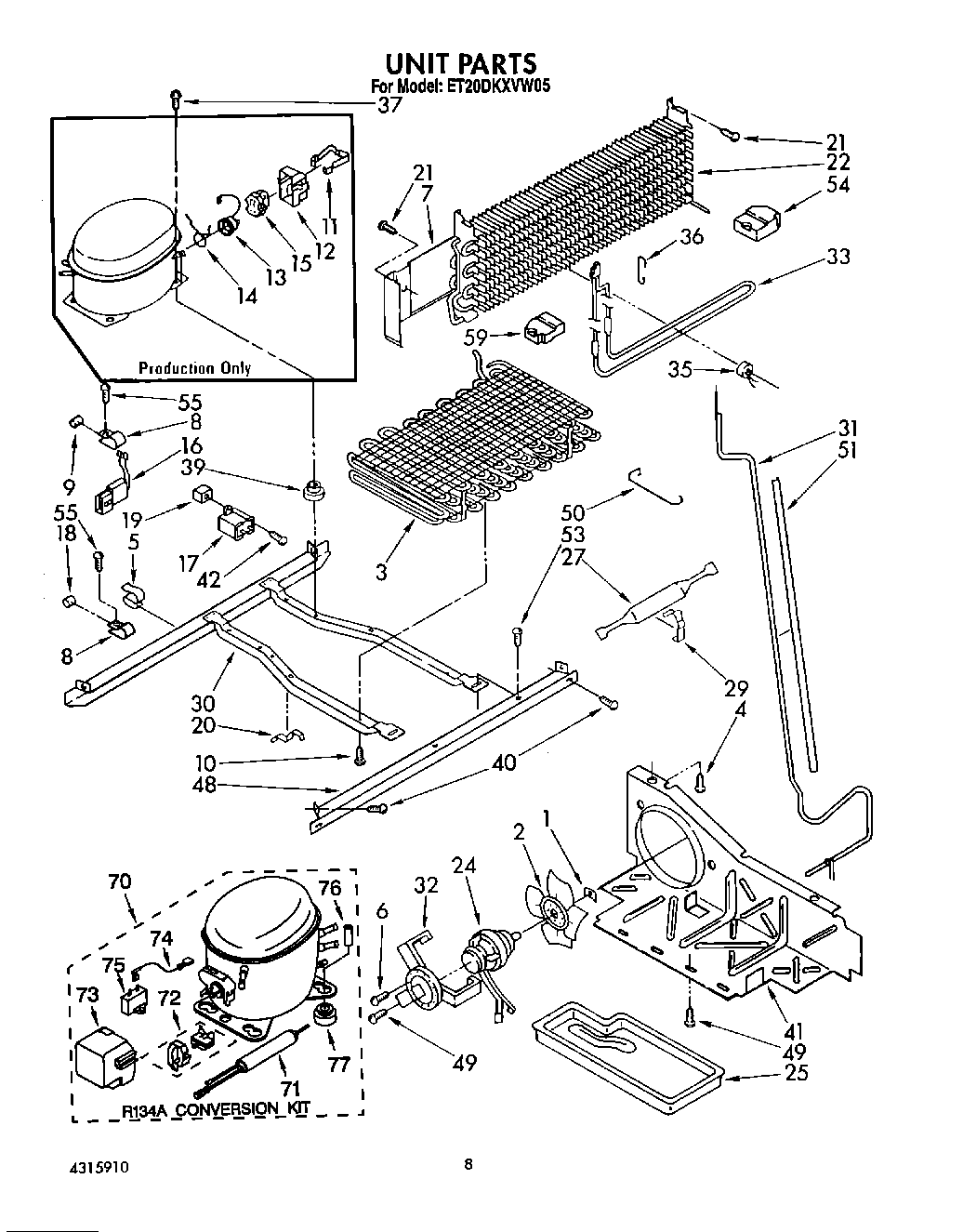

04 - UNIT
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 486692 | Speed Nut | WP486692 | |||
| 2 | 989524 | BLADE-FAN | WP1108179 | 69,10$ | ||
| 3 | 1118657 | Condenser Assembly | ||||
| 4 | 489050 | Screw | ||||
| 5 | 548745 | Clip, Wire (2) | ||||
| 6 | 489019 | SCREW | 681390 | 11,46$ | ||
| 7 | 1105545 | Heat Shield Evaporator | ||||
| 8 | 510716 | Tube Clamp | ||||
| 9 | 510769 | Dampener | ||||
| 10 | 488480 | Screw, 8-15 x 1/2 (4) | WP489069 | |||
| 11 | 938384 | Spring, Relay Case | ||||
| 12 | 1108115 | Case, Relay | ||||
| 13 | 1118665 | Overload | ||||
| 14 | 1114190 | Overload Spring | ||||
| 15 | 1108143 | RELAIS DEMARRAGE | WP2262181 | 66,03$ | ||
| 16 | 1118850 | Housing Plug | ||||
| 17 | 1118581 | CONDENSATEUR | WPW10662129 | 68,19$ | ||
| 18 | 836075 | DAMPENER | WP2158826 | 1,18$ | ||
| 19 | 509812 | Grommet, Screw | ||||
| 20 | 548744 | Clip, Unit Cover (2) | ||||
| 21 | 486194 | VIS | WP488729 | 6,39$ | ||
| 22 | 1118548 | Evaporator | ||||
| 24 | 1121292 | MOTEUR DE CONDENSEUR 115V 2W | 833697 | 57,91$ | ||
| 25 | 1105523 | PLATEAU D'EVAPORATION | WPW10614158 | 85,55$ | ||
| 27 | 1105550 | ASSECHEUR-TUBE | W10843121 | 48,61$ | ||
| 29 | 548508 | Clamp, Drier | 1127590 | |||
| 30 | 1105534 | Unit Mounting Frame | ||||
| 31 | 1118661 | Exchanger, Heat | ||||
| 32 | 548695 | Fan, Motor Bracket | ||||
| 33 | 1118829 | Heater, Defrost | ||||
| 35 | 1127805 | BIMETL-DEF | WP4387500 | 60,53$ | ||
| 36 | 851358 | Support, Heater | ||||
| 37 | 489116 | GROMMET | 876811 | 5,43$ | ||
| 39 | 1114359 | GROMMET | 876811 | 5,43$ | ||
| 40 | 488683 | SCREW | 489340 | 7,37$ | ||
| 41 | 1105529 | Baffle, Air | ||||
| 42 | 488687 | Screw, 8 x 5/8 | WP487240 | |||
| 48 | 1105525 | Unit Mounting Rail | ||||
| 49 | 488624 | Screw | ||||
| 50 | 1105612 | GUARD-FAN | 21,30$ | |||
| 51 | 1108690 | SLEEVE | WP2002171 | 21,27$ | ||
| 53 | 488454 | Screw, 1/4-28 x 1/2 (2) | ||||
| 54 | 1118550 | Support, Evaporator (R.S.) | ||||
| 55 | 488197 | SCREW | WPW10141625 | 19,07$ | ||
| 59 | 1118551 | Support, Evaporator (L.S.) | ||||
| 70 | 4388005 | Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order | ||||
| 70 | 876765 | TUBE ASS. | 45,24$ | |||
| 71 | 4387019 | ASSECHEUR-TUBE | W10843121 | 48,61$ | ||
| 72 | 4387767 | LIMITEUR | 4387535 | 104,04$ | ||
| 73 | 4387731 | Cover, Terminal | WP2162358 | |||
| 74 | 2172890 | WIRE | WP2172890 | 5,15$ | ||
| 75 | 4387764 | Capacitor | WP4387764 | |||
| 76 | 4387559 | SLEEVE-MTG | 7,53$ | |||
| 77 | 4387558 | GROMMET | WP4387558 | 6,06$ | ||
| 77 | 978025 | VALVE | WP978025 | 56,78$ | ||
| 77 | 978026 | Valve, Access (5/16``) | ||||
| 77 | 978027 | VALVE | 51,97$ | |||
| 77 | 978028 | VALVE, ACCESS (1/2``) | ||||
| 77 | 978029 | VALVE | 73,25$ | |||
| 77 | 978030 | VALVE | 72,13$ | |||
| 77 | 876764 | VALVE | 40,54$ |
*Le prix peut changer sans préavis
