Marque: Whirlpool
Modèle: ET18JMYSF0C - TOP MOUNT REFRIGERATOR

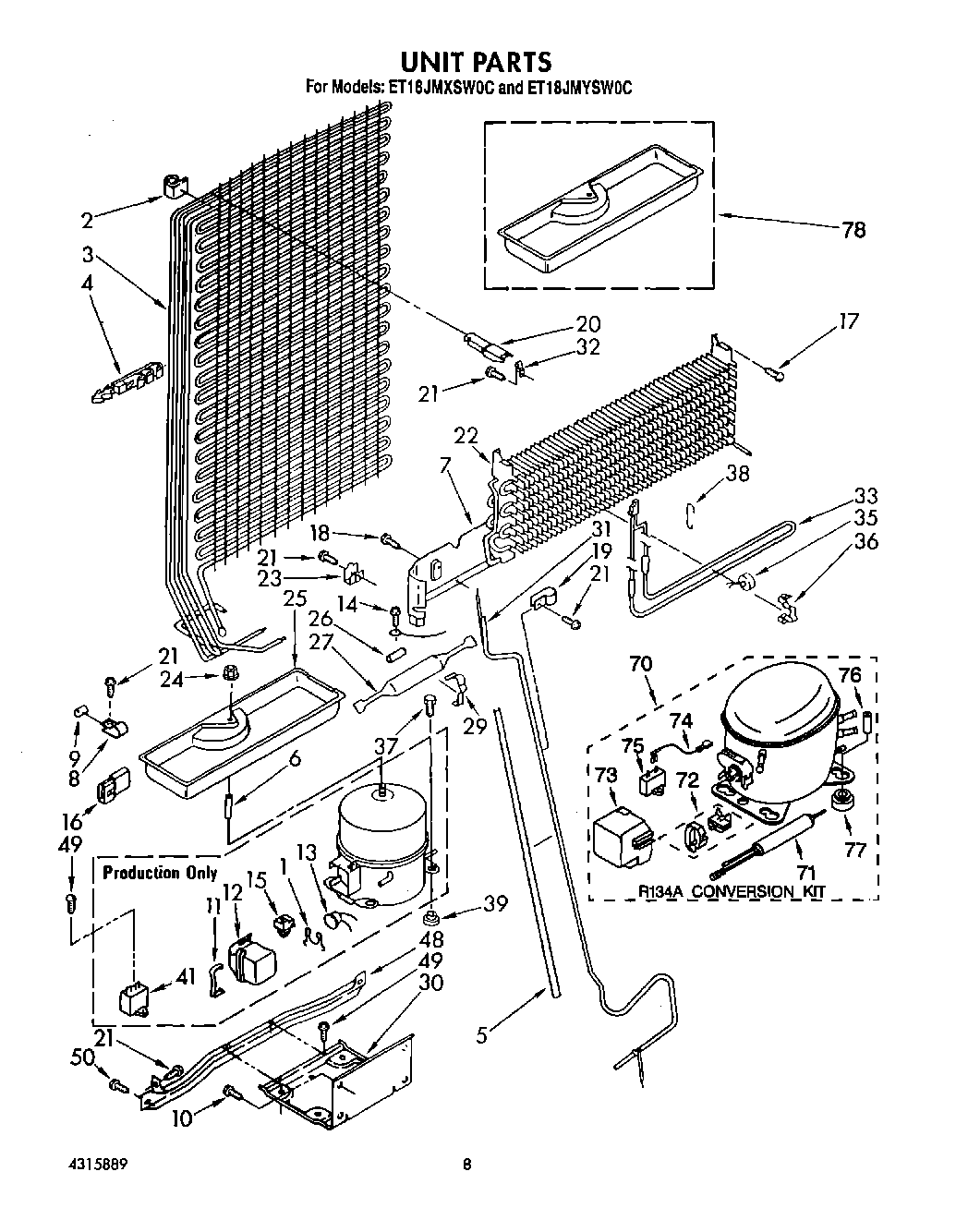

07 - UNIT
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 943320 | Overload Spring | ||||
| 2 | 1103640 | Bumper (2) | ||||
| 3 | 1115527 | Condenser & Precooler Assembly | ||||
| 4 | 1118652 | Tube, Retainer | ||||
| 5 | 1108073 | SLEEVE | WP2002171 | 21,27$ | ||
| 6 | 1105130 | Spacer | ||||
| 7 | 1108359 | Heat Shield Evaporator | ||||
| 8 | 510716 | Tube Clamp | ||||
| 9 | 945593 | Dampener | ||||
| 10 | 488480 | Screw,8x1/2 (2) | WP489069 | |||
| 11 | 943322 | Spring, Relay Case | ||||
| 12 | 1105055 | Case, Relay | ||||
| 13 | 1127682 | Overload | ||||
| 14 | 488879 | SCREW | 303776 | 8,04$ | ||
| 15 | 945507 | Relay | ||||
| 16 | 934326 | CONNECTOR | WP717253 | 5,30$ | ||
| 17 | 489169 | SCREW | WP489174 | 5,30$ | ||
| 18 | 487869 | SCREW | WP965173 | 9,04$ | ||
| 19 | 489151 | Tube, Clamp | ||||
| 20 | 1100636 | Condenser, Stand-Off | ||||
| 21 | 489242 | SCREW | WP489478 | 6,50$ | ||
| 21 | 489254 | Screw (Repair) | WP681414 | |||
| 22 | 943762 | Evaporator | ||||
| 23 | 942852 | CLIP | 4386951 | 5,30$ | ||
| 24 | 489153 | NUT | 285002 | 11,15$ | ||
| 25 | 942875 | Tray, Evaporator | WP2201801 | |||
| 26 | 510446 | Restrictor Sleeve | ||||
| 27 | 945424 | ASSECHEUR-TUBE | W10843121 | 48,61$ | ||
| 29 | 547637 | Clamp, Drier | ||||
| 30 | 1118781 | Unit Mounting Plate | ||||
| 31 | 1127563 | Exchanger, Heat | ||||
| 32 | 1100707 | Clip, Stand Off | ||||
| 33 | 1127660 | Heater, Defrost | ||||
| 35 | 1127661 | BIMETL-DEF | WP4387499 | 52,41$ | ||
| 36 | 942873 | Clamp | ||||
| 37 | 489116 | GROMMET | 876811 | 5,43$ | ||
| 38 | 1108172 | Support, Heater | ||||
| 39 | 1100826 | MOUNT-KIT | 4388295 | 46,36$ | ||
| 41 | 1114291 | CONDENSATEUR | WPW10662129 | 68,19$ | ||
| 48 | 1118783 | Unit Mounting Rail | ||||
| 49 | 487248 | SCREW | WP965173 | 9,04$ | ||
| 50 | 488973 | Screw, 1/4-28 x 1 | 876607 | |||
| 70 | 4388005 | Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order | ||||
| 70 | 876765 | TUBE ASS. | 45,24$ | |||
| 70 | 482801 | ENS.MONTAGE,PLATEAU EVAPORAT. | 89,90$ | |||
| 71 | 4387019 | ASSECHEUR-TUBE | W10843121 | 48,61$ | ||
| 72 | 4387767 | LIMITEUR | 4387535 | 104,04$ | ||
| 73 | 4387731 | Cover, Terminal | WP2162358 | |||
| 74 | 2172890 | WIRE | WP2172890 | 5,15$ | ||
| 75 | 4387764 | Capacitor | WP4387764 | |||
| 76 | 4387559 | SLEEVE-MTG | 7,53$ | |||
| 77 | 4387558 | GROMMET | WP4387558 | 6,06$ | ||
| 78 | 1101002 | Tray, Evaporator (Required When Replacing Compressor) | WP2201801 | |||
| 78 | 978025 | VALVE | WP978025 | 56,78$ | ||
| 78 | 978026 | Valve, Access (5/16``) | ||||
| 78 | 978027 | VALVE | 51,97$ | |||
| 78 | 978028 | VALVE, ACCESS (1/2``) | ||||
| 78 | 978029 | VALVE | 73,25$ | |||
| 78 | 978030 | VALVE | 72,13$ | |||
| 78 | 876764 | VALVE | 40,54$ |
*Le prix peut changer sans préavis
