Marque: Whirlpool
Modèle: GMC305PDT08

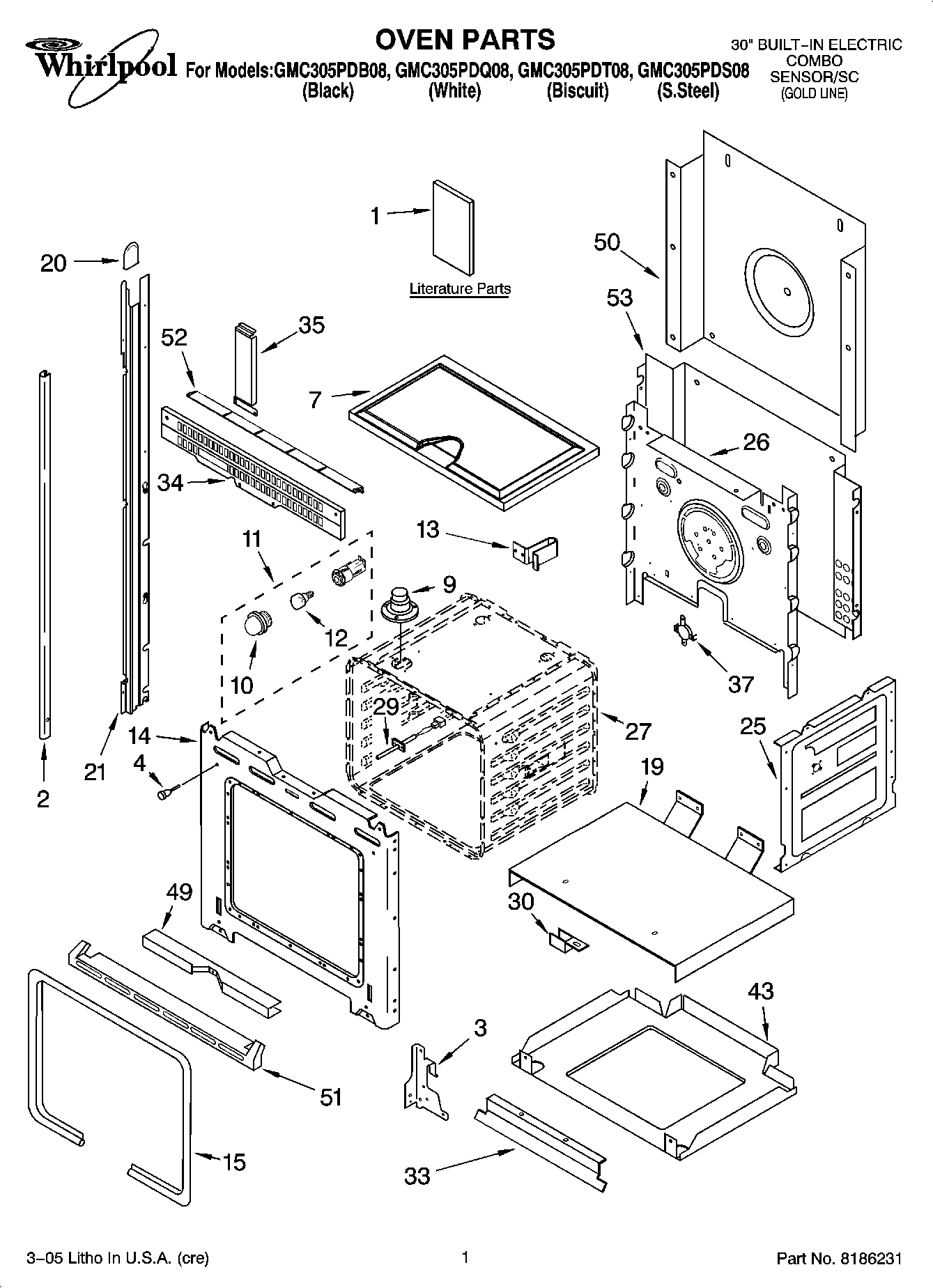

01 - OVEN PARTS


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | 8300653 | Installation Instructions | 0,00$ | |||
1 | 4452005 | Use & Care Guide (Microwave) | 0,00$ | |||
1 | 8300610 | Use & Care Guide (Oven) | 0,00$ | |||
1 | 4450785 | Cooking Guide (Label) | 0,00$ | |||
1 | 8302010 | Tech Sheet (Oven) | 0,00$ | |||
1 | 3191638 | Safer Cooking Tips | 0,00$ | |||
2 | 4450856 | Trim, Side (RH Black) | 0,00$ | |||
2 | 4450857 | Trim, Side (RH White) | 0,00$ | |||
2 | 4452124 | Trim, Side (RH Biscuit) | 0,00$ | |||
2 | 4450859 | Trim, Side (LH Black) | 0,00$ | |||
2 | 4450860 | Trim, Side (LH White) | 0,00$ | |||
2 | 4452125 | Trim, Side (LH Biscuit Screw) | 0,00$ | |||
3 | 4455605 | RECEPTACLE DE PENTURE | WP4455605 | 83,27$ | ||
3 | 4455606 | PENTURE | WP4455606 | 83,27$ | ||
4 | 4448520 | BUMPER | 0,00$ | |||
7 | 4455865 | Top, Chassis | 0,00$ | |||
7 | 4449809 | VIS | WP4449809 | 6,32$ | ||
9 | 4452158 | TUBE-VENT | W10861715 | 92,19$ | ||
9 | 3196176 | VIS | W11233072 | 12,16$ | ||
10 | 4452165 | Lens, Light | 0,00$ | |||
11 | 4452368 | Oven Light Assy | 0,00$ | |||
12 | 4452166 | LUMIERE 15W 125V | WP4173175 | 76,79$ | ||
13 | 8300791 | Bracket, Combo | 0,00$ | |||
14 | 9759060 | Frame, Front | 0,00$ | |||
14 | 4449040 | SCREW | WP4449040 | 6,46$ | ||
15 | 4455382 | JOINT DE PORTE | W11675844 | 50,41$ | ||
19 | 4451478 | Support, Insulation | 0,00$ | |||
19 | 4449809 | VIS | WP4449809 | 6,32$ | ||
20 | 4451605 | SPACER | 36,71$ | |||
21 | 4450583 | RAIL-MTG | 814375 | 158,19$ | ||
21 | 4450584 | RAIL-MTG | 814376 | 144,93$ | ||
21 | 4448444 | GROMMET | WP4448444 | 5,35$ | ||
21 | 4449154 | SCREW | WP4449154 | 6,32$ | ||
25 | 4455641 | PANEL-SIDE | W10782197 | 111,17$ | ||
25 | 4449809 | VIS | WP4449809 | 6,32$ | ||
26 | 4452234 | Back, Chassis | 0,00$ | |||
26 | 4449809 | VIS | WP4449809 | 6,32$ | ||
27 | N/A | Liner, Oven (Not serviceable) | 0,00$ | |||
29 | 4455636 | SONDE | WPW10131825 | 107,55$ | ||
29 | 4449154 | SCREW | WP4449154 | 6,32$ | ||
30 | 4449845 | BRACKET-SUPPORT | 0,00$ | |||
30 | 4449809 | VIS | WP4449809 | 6,32$ | ||
33 | 4457117 | Deflector, Vent | 0,00$ | |||
33 | 4449809 | VIS | WP4449809 | 6,32$ | ||
34 | 8302592 | Vent, Center | 0,00$ | |||
34 | 4450038 | VIS | WP4450038 | 6,32$ | ||
35 | 4449906 | EXT Filler | 0,00$ | |||
37 | 9759243 | THERMOSTAT-FIX | WP9759243 | 75,93$ | ||
37 | 4449809 | VIS | WP4449809 | 6,32$ | ||
43 | 9759713 | Base, Chassis | 0,00$ | |||
43 | 4449809 | VIS | WP4449809 | 6,32$ | ||
49 | 4448933 | SUPPORT, JOINT | WP4448933 | 6,56$ | ||
49 | 4449154 | SCREW | WP4449154 | 6,32$ | ||
50 | 4451747 | COVER-REAR | WP4451747 | 106,04$ | ||
50 | 4449809 | VIS | WP4449809 | 6,32$ | ||
51 | 4448477 | Trim, Bottom (Black) | 0,00$ | |||
51 | 4448478 | Trim, Bottom (White) | 0,00$ | |||
51 | 4452415 | Trim, Bottom (Biscuit) | 0,00$ | |||
52 | 4456145 | Vent, Control | 0,00$ | |||
53 | 4451756 | Chassis, Back | 0,00$ | |||
53 | N/A | FOLLOWING PARTS NOT ILLUSTRATED INSULATION | 0,00$ | |||
53 | 4449316 | INSULATION | W11684730 | 89,82$ | ||
53 | 4450365 | ISOLATION | WP4450365 | 90,78$ |
*Le prix peut changer sans préavis
