Marque: Whirlpool
Modèle: RBD276PDQ11

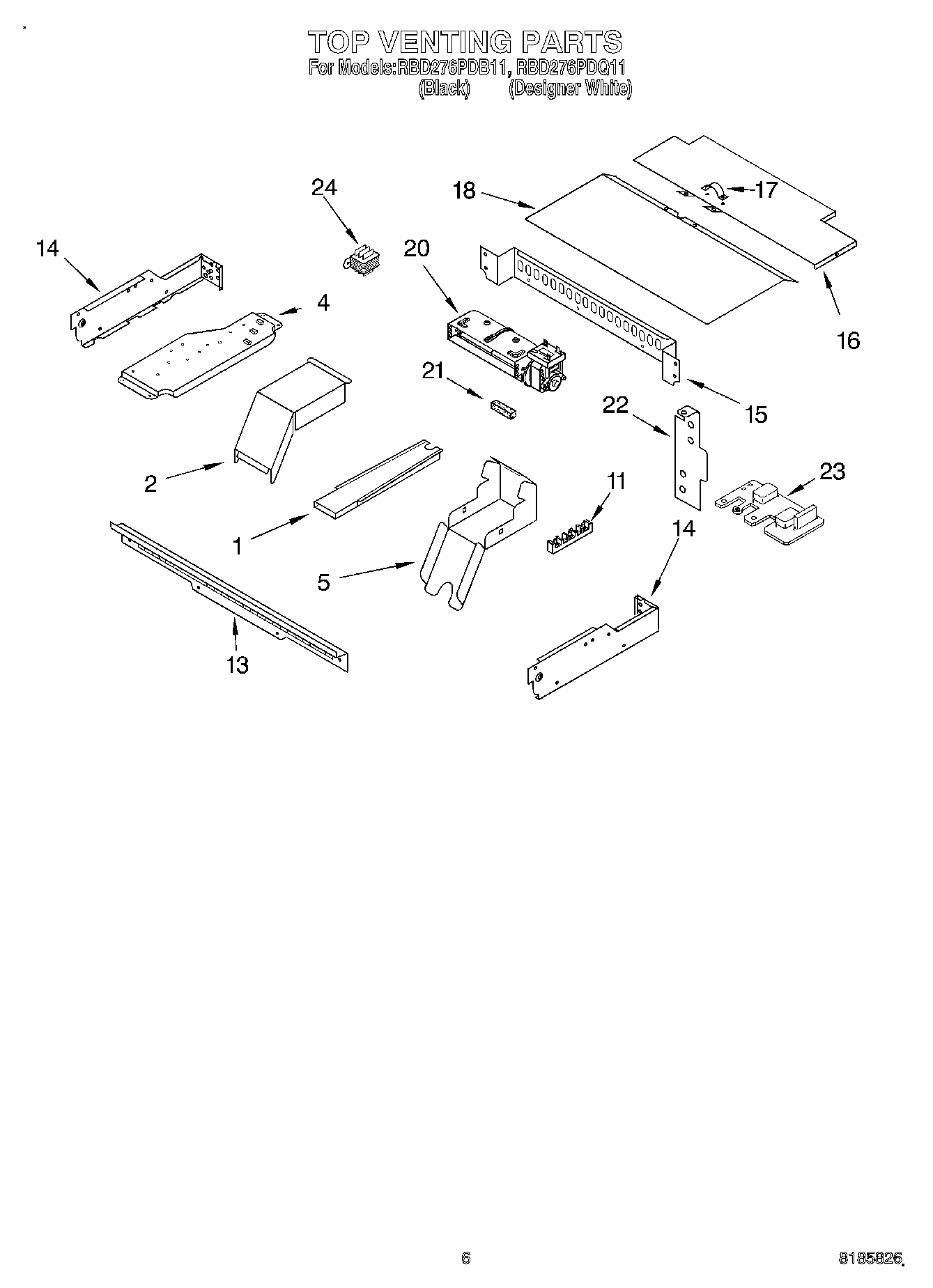

05 - TOP VENTING, OPTIONAL
- 01 - OVEN, LITERATURE
- 02 - OVEN DOOR
- 03 - INTERNAL OVEN
- 04 - CONTROL PANEL
- 05 - TOP VENTING, OPTIONAL


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | 4451759 | VENT-EXHST | 75,12$ | |||
2 | 4455178 | ELBOW-TOP | 11,34$ | |||
4 | 4451789 | Plate, Mounting | 0,00$ | |||
5 | 4455177 | ELBOW-BTM | 8,84$ | |||
11 | 4449868 | BLOC DE RACCORDEMENT | WP8203546 | 23,61$ | ||
11 | 3400080 | SCREW | W11684512 | 11,19$ | ||
13 | 4448548 | Vent, (Control Panel) | 0,00$ | |||
13 | 4450038 | VIS | WP4450038 | 6,32$ | ||
14 | 4451597 | SIDE-COMPT | W10755214 | 58,06$ | ||
14 | 4451598 | SIDE-COMPT | W10790240 | 58,06$ | ||
14 | 4449809 | VIS | WP4449809 | 6,32$ | ||
15 | 4452244 | Back, Control | 0,00$ | |||
15 | 4449809 | VIS | WP4449809 | 6,32$ | ||
16 | 4450550 | Cover, Top Rear | 0,00$ | |||
16 | 4449809 | VIS | WP4449809 | 6,32$ | ||
17 | 4448664 | SUPPORT,MONTAGE | 18,06$ | |||
17 | 4449809 | VIS | WP4449809 | 6,32$ | ||
18 | 4452366 | Cover, Top Front | 0,00$ | |||
18 | 4449809 | VIS | WP4449809 | 6,32$ | ||
20 | 6610168 | VENTILATEUR | WPW10016550 | 262,92$ | ||
20 | 4455334 | Blower (60MM Upper Oven) | WP4455334 | 0,00$ | ||
20 | 4455352 | SUPPORT,MONTAGE | WP4455352 | 31,48$ | ||
21 | 4451758 | SEAL-FOAM | W10491987 | 6,28$ | ||
22 | 4455191 | PLATE-MTG | 9,38$ | |||
23 | 4451985 | SUPPRESSOR | WP4451985 | 122,67$ | ||
24 | 4451891 | Transformer, Control | 0,00$ | |||
24 | 72017 | RETOUCHE BLANC | 11,47$ | |||
24 | 261869 | PEINTURE CW | WP261869 | 19,59$ | ||
24 | 72032 | RETOUCHE NOIR | 17,49$ | |||
24 | 350930 | PEINTURE,SPRAY | 16,77$ | |||
24 | 261900 | SPRAY | 33,56$ | |||
24 | 830864 | PEINTURE NOIR AEROSOL 12OZ. | 285006 | 30,51$ | ||
24 | 591014 | ADHESIVE LOCTITE (1/3 OZ.) | 0,00$ | |||
24 | 482338 | ADHESIF | WP482338 | 62,07$ | ||
24 | 242828 | Wire (12 Ga. 150 c Black) | 0,00$ | |||
24 | 242820 | Wire (14 Ga. 150 c Black) | 0,00$ | |||
24 | 242821 | Wire (14 Ga. 150 c Blue) | 0,00$ | |||
24 | 242822 | Wire (14 Ga. 150 c Brown) | 0,00$ | |||
24 | 242830 | Wire (14 Ga. 200 c Brown) | 0,00$ | |||
24 | 242823 | Wire (14 Ga. 150 c Green) | 0,00$ | |||
24 | 242824 | Wire (14 Ga. 150 c Orange) | 0,00$ | |||
24 | 242829 | Wire (12 Ga. 150 c Red) | 0,00$ | |||
24 | 242825 | Wire (14 Ga. 150 c Red) | 0,00$ | |||
24 | 242831 | WIRE | 251,91$ | |||
24 | 242826 | Wire (14 Ga. 150 c White) | 0,00$ | |||
24 | 242827 | Wire (14 Ga. 150 c Yellow) | 0,00$ | |||
24 | 242832 | Wire (14 Ga. 200 c Yellow) | 0,00$ | |||
24 | 4451926 | Harness, Wire (Latch) | 0,00$ | |||
24 | 4450953 | CONDUIT | 261,35$ | |||
24 | 4450800 | SCREW | 12,16$ | |||
24 | 4448664 | SUPPORT,MONTAGE | 18,06$ | |||
24 | 4449809 | VIS | WP4449809 | 6,32$ | ||
24 | 112432 | NUT | WP112432 | 6,32$ | ||
24 | 4455738 | Harness, Wire (Main) | 0,00$ | |||
24 | 313438 | CLIP | 16515 | 16,07$ | ||
24 | 4452222 | Spacer, Harness | 0,00$ | |||
24 | 4454835 | ATTACHE,FIL | WPW10339879 | 6,32$ | ||
24 | 4451761 | SUPPORT | 7,45$ | |||
24 | 4454842 | ATTACHE,FIL | WPW10339879 | 6,32$ | ||
24 | 814381 | GOUPILLE,PORTE | 6,81$ | |||
24 | 4448950 | SCREW | WP4448950 | 5,29$ |
*Le prix peut changer sans préavis
