Marque: Whirlpool
Modèle: DU850SWPQ1 - UNDERCOUNTER DISHWASHER

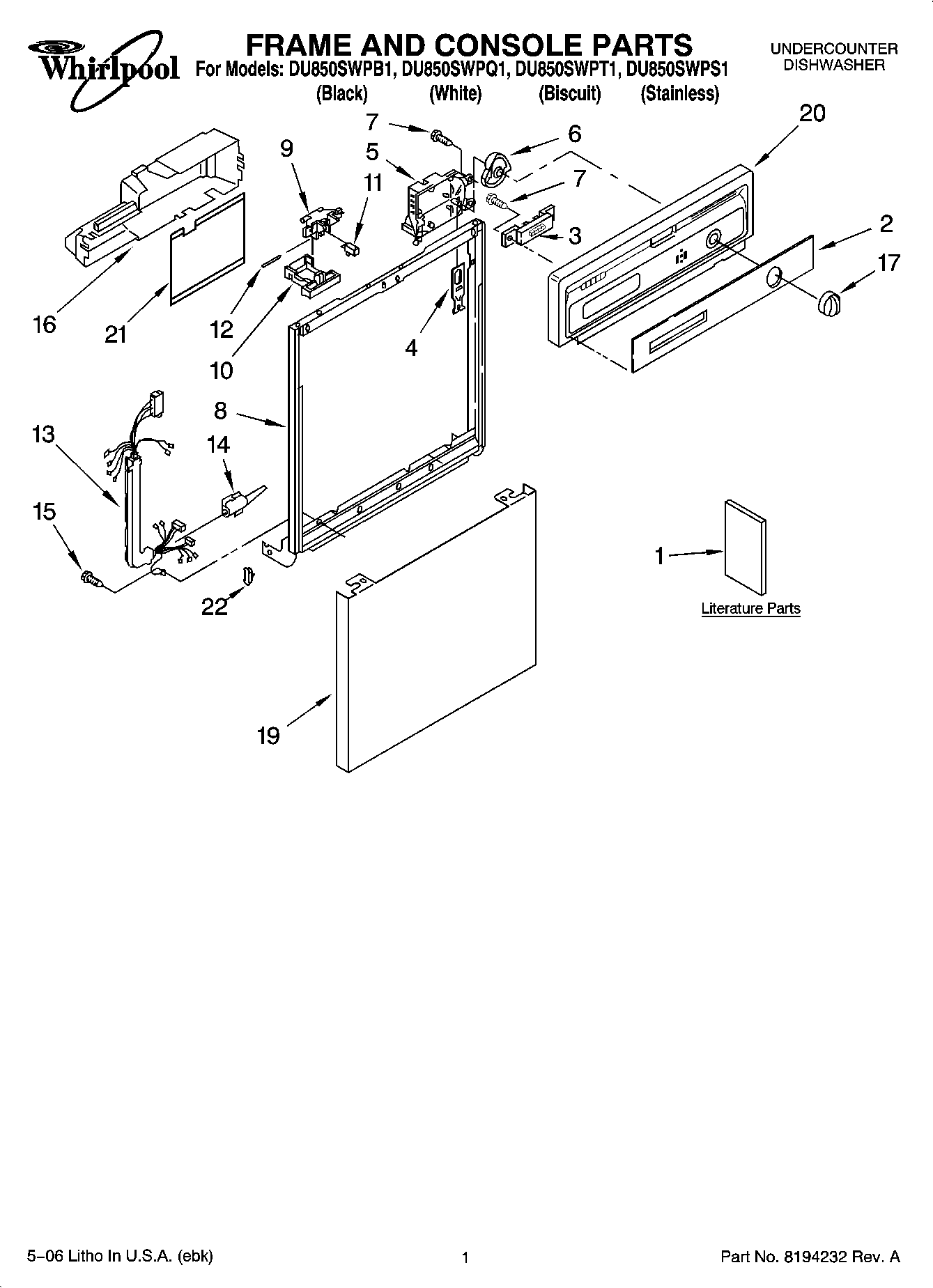

01 - FRAME AND CONSOLE PARTS
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 8535436 | Instructions, Installation | ||||
| 1 | 3367007 | Instructions, Installation (Supplement) (Locating Your Water Supply) | ||||
| 1 | 8535639 | Guide, Energy | ||||
| 1 | 8535037 | Guide, Use & Care | ||||
| 1 | 3385497 | Diagram, Wiring | ||||
| 1 | 677967 | Do-It Yourself Manual | W10131216 | |||
| 2 | 8535383 | Insert, Console (Black) | ||||
| 2 | 8535384 | Insert, Console (White) | ||||
| 2 | 8575664 | Insert, Console (Biscuit) | ||||
| 3 | 8269366 | Switch, 5 Button | ||||
| 4 | 3369529 | Follower, Cam | WP3369529 | |||
| 5 | 8535368 | MINUTERIE | WP8535368 | 240,87$ | ||
| 6 | 8271510 | CAME | WP8271510 | 6,32$ | ||
| 7 | 304231 | screw, 8-18 x 1/2 (5) | WP304231 | |||
| 8 | 9743028 | CADRE | WP9743028 | 65,93$ | ||
| 9 | 3380854 | BOULON DE LOQUET | WP3380854 | 54,03$ | ||
| 10 | 3369457 | Lever, Latch (Black) | ||||
| 10 | 3372231 | Lever, Latch White | ||||
| 10 | 3375062 | Lever, Latch (Biscuit) | ||||
| 11 | 3369325 | INTERRUPTEUR | 4318273 | 76,50$ | ||
| 12 | 3368955 | Pin, Switch (2) | WP3368955 | |||
| 13 | 8573183 | Harness and Protector | ||||
| 14 | 3376405 | Elbow, Harness | ||||
| 15 | 3400892 | Screw | WP3400892 | |||
| 16 | 8269526 | Cover, Control | ||||
| 17 | 8275308 | Knob, Timer (Black) | ||||
| 17 | 8275309 | BOUTON,MINUTERIE | 34,44$ | |||
| 17 | 8275310 | Knob, Timer (Biscuit) | ||||
| 19 | 3379375 | Panel Front (Black) | WP3379375 | |||
| 19 | 3379376 | Panel Front (White) | ||||
| 19 | 8054178 | Panel, Front (Biscuit) | ||||
| 19 | 9743581 | Panel, Front (Stainless) | ||||
| 20 | 8535328 | Console (Includes Item 2) (Black) | ||||
| 20 | 8535329 | Console (Includes Item 2) (White) | ||||
| 20 | 8575346 | Console (Includes Item 2) (Biscuit) | ||||
| 21 | 3379671 | Shield, Control Cover | ||||
| 22 | 3373234 | BAGUE | WP3373234 | 8,99$ |
*Le prix peut changer sans préavis
