Marque: Whirlpool
Modèle: RF111PXSQ3 - 30" ELECTRIC FREESTANDING STANDARD CLEAN RANGE

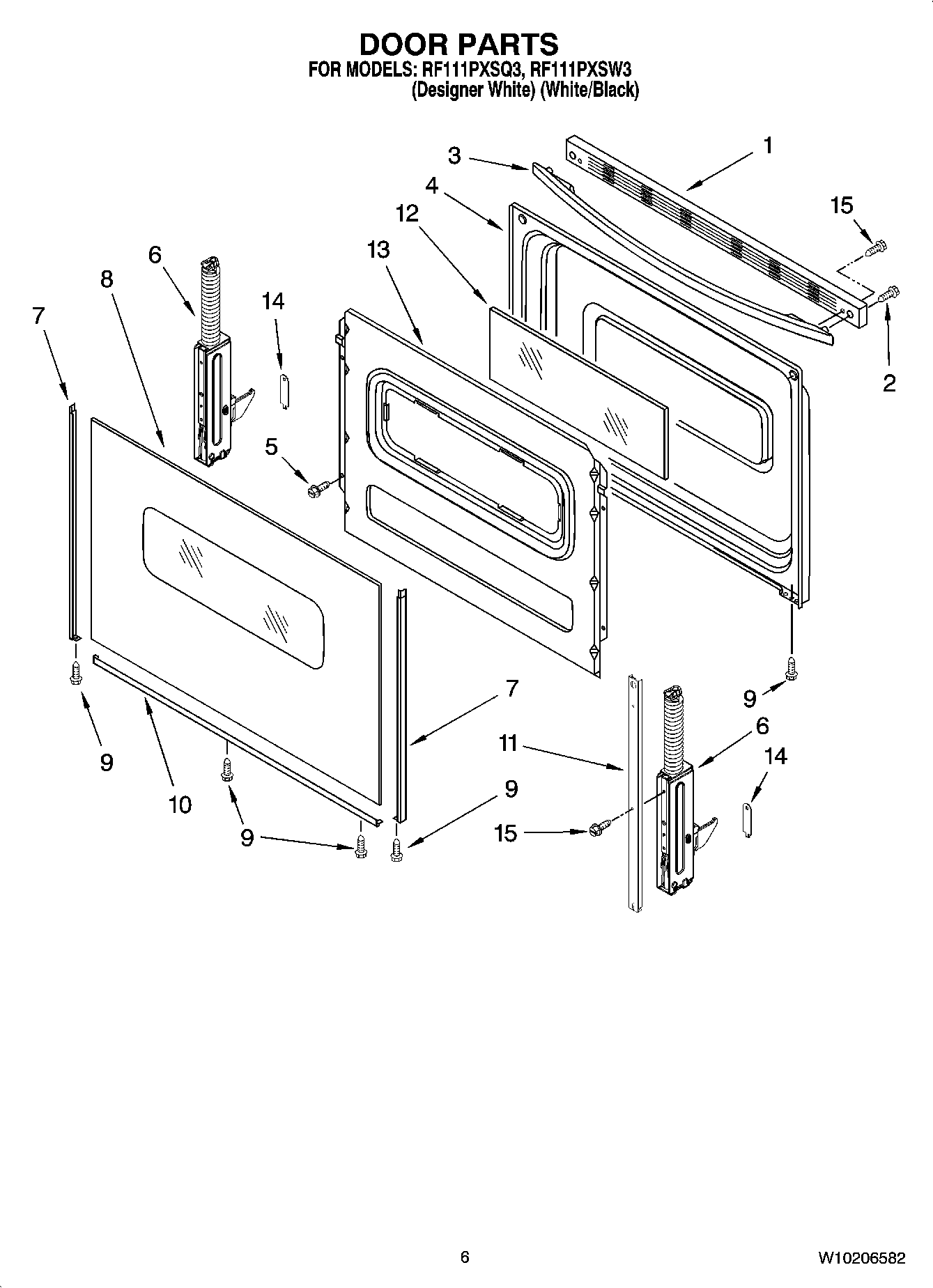

05 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
- 01 - COOKTOP PARTS
- 02 - CONTROL PANEL PARTS
- 03 - CHASSIS PARTS
- 04 - DRAWER & BROILER PARTS
- 05 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | W10144869 | GARNITURE,PORTE DE FOUR,BL/AMA | W10817433 | 96,13$ | ||
| 1 | W10144870 | GARNITURE EVENT | WPW10310922 | 105,82$ | ||
| 2 | 3196164 | VIS | WP3196164 | 6,32$ | ||
| 3 | W10118384 | POIGNEE DE PLASTIQUE,BLANC | W10817434 | 120,78$ | ||
| 3 | W10118385 | Handle, Door (Black) | WPW10323589 | |||
| 4 | 9761340 | LINER-DOOR | 133,05$ | |||
| 5 | W10031790 | VIS | WPW10031790 | 6,50$ | ||
| 6 | 9761494 | PENTURE, PORTE DE FOUR | W10347465 | 58,37$ | ||
| 7 | 8523172 | GARNITURE-PORTE | WP8523172 | 57,10$ | ||
| 7 | 8523171 | GARNITURE DE PORTE,GAUCHE,NOIR | W10761018 | 45,69$ | ||
| 7 | 8523166 | GARNITURE-PORTE | WP8523166 | 57,16$ | ||
| 7 | 8523165 | GARNITURE-PORTE | W10761014 | 45,69$ | ||
| 8 | 9762476 | VITRE,BLANC | WP9762476 | 158,07$ | ||
| 8 | 9762477 | GLASS-DOOR | WP9762477 | 126,77$ | ||
| 9 | 3196160 | Screw | W10491985 | |||
| 10 | 8523175 | GARNITURE-PORTE | WP8523175 | 69,50$ | ||
| 10 | 8523177 | GARNITURE-PORTE | WP8523177 | 81,80$ | ||
| 11 | W10113759 | ATTACHE-PORTE | WPW10544179 | 74,69$ | ||
| 12 | 9758163 | GLASS-DOOR | WP9758163 | 63,81$ | ||
| 13 | 9761500 | RETAINER | 122,46$ | |||
| 14 | 9761517 | CLIP, DOOR MNTG(2) | ||||
| 15 | W10031780 | VIS | W10777162 | 6,89$ | ||
| Following Parts Not Illustrated | ||||||
| 242828 | Wire (12 Ga. 150 c Black) | |||||
| 242821 | Wire (14 Ga. 150 c Blue) | |||||
| 242822 | Wire (14 Ga. 150 c Brown) | |||||
| 242830 | WIRE | 8316784 | 89,48$ | |||
| 242823 | Wire (14 Ga. 150 c Green) | |||||
| 242824 | Wire (14 Ga. 150 c Orange) | |||||
| 242825 | Wire (14 Ga. 150 c Red) | |||||
| 242831 | WIRE | 251,91$ | ||||
| 242827 | Wire (14 Ga. 150 c Yellow) | |||||
| 799832 | KIT, PORCELAIN REPAIR (WHITE) | |||||
| 242756 | PEINTURE | 8212471 | 58,61$ | |||
| 261582 | Grease | |||||
| 261514 | ISOLATION | WPW10208653 | 45,26$ | |||
| 240132 | ISOLATION | WPW10208653 | 45,26$ | |||
| 72017 | RETOUCHE BLANC | 11,71$ | ||||
| 4392899 | TUCHUP | 10,39$ | ||||
| 511873 | PAINT | Appeler pour commander | ||||
| 350930 | SPRAY | Appeler pour commander | ||||
| 4392901 | PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) | |||||
| 285006 | SPRAY | Appeler pour commander | ||||
| 206922 | PRIMER | 350942 | 33,20$ | |||
| 799344 | PAINT | 115,79$ | ||||
| 4392900 | PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) | |||||
| 241430 | FOIL, ALUMINUM OVEN (18`` X 25’) | |||||
| 3184478 | Cleaner, Glass | W10355051, W10355051B | ||||
| W10017440 | ANCHOR-TIP | W11379945 | 14,99$ | |||
| 9761476 | HARNS-WIRE | W11396691 | 93,38$ | |||
| W10113075 | HARNS-WIRE | W10251755 | 120,90$ | |||
| 313660 | CLIP | 8,24$ | ||||
| 311227 | WIRE | 3184020 | 33,16$ | |||
| 3196154 | SCREW | WP3196154 | 6,45$ | |||
| 3196174 | SCREW | WP3196174 | 6,45$ | |||
| 3196173 | SCREW | W11244557 | 12,16$ |
*Le prix peut changer sans préavis
