Marque: Whirlpool
Modèle: RS610PXGN3 - ELECTRIC RANGE

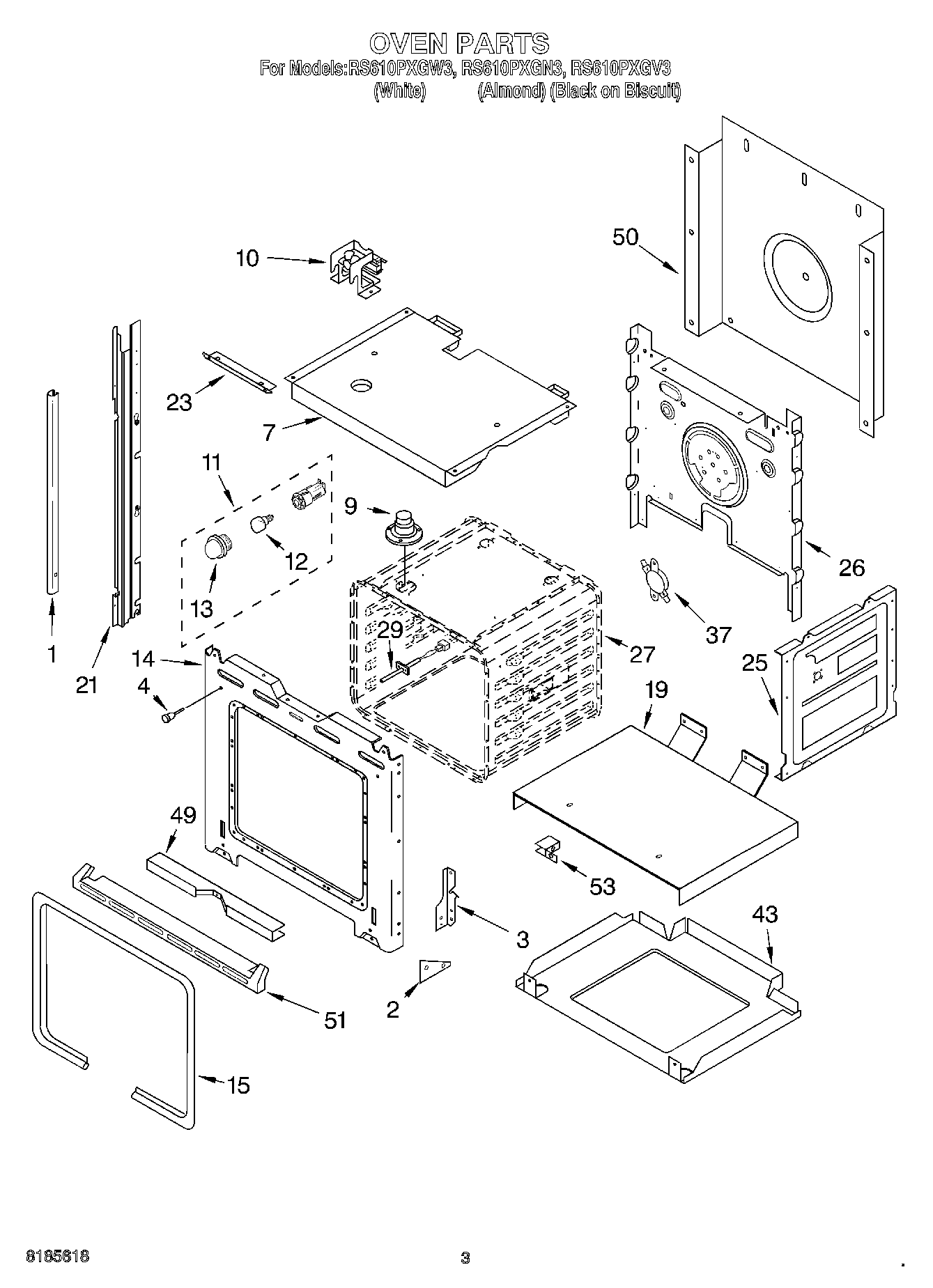

03 - OVEN
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 4450844 | Trim, Side (RH Black) | ||||
| 1 | 4450847 | Trim, Side (LH Black) | ||||
| 1 | 4449747 | SCREW | WP8281236 | 6,26$ | ||
| 2 | 4455509 | BRKT-SUPRT | WP4455509 | 33,40$ | ||
| 3 | 4455722 | HINGE-RECV | WP4455722 | 43,55$ | ||
| 3 | 4455723 | HINGE-RECV | WP4455723 | 43,27$ | ||
| 4 | 4448520 | BUMPER | Appeler pour commander | |||
| 7 | 4455286 | Top, Chassis | ||||
| 7 | 4449809 | VIS | WP4449809 | 6,32$ | ||
| 9 | 4452159 | TUBE-VENT | W10861715 | 64,56$ | ||
| 9 | 3196176 | Screw | W11233072 | |||
| 10 | 4451664 | FAN-BLWR | WP4451664 | 185,87$ | ||
| 10 | 4449809 | VIS | WP4449809 | 6,32$ | ||
| 11 | 4452368 | Oven Light Assy | ||||
| 12 | 4452166 | LUMIERE | WP4173175 | 50,72$ | ||
| 13 | 4452165 | Lens, Light | ||||
| 14 | 4451740 | Frame, Front | ||||
| 14 | 4449040 | SCREW | 5,28$ | |||
| 14 | 4450118 | NUT | WP4450118 | 5,09$ | ||
| 15 | 4450493 | GASKT-DOOR | W10203265 | 61,93$ | ||
| 19 | 4451478 | SUPPORT | 52,40$ | |||
| 19 | 4449809 | VIS | WP4449809 | 6,32$ | ||
| 21 | 4450579 | RAIL-MTG | 814371 | 43,59$ | ||
| 21 | 4450580 | RAIL-MTG | 814372 | 43,47$ | ||
| 21 | 4448444 | GROMMET | WP4448444 | 5,35$ | ||
| 21 | 4449154 | SCREW | WP4449154 | 6,32$ | ||
| 23 | 4450051 | Deflector | ||||
| 23 | 4449154 | SCREW | WP4449154 | 6,32$ | ||
| 25 | 4454691 | Side, Chassis (R.H. & L.H.) | ||||
| 25 | 4449809 | VIS | WP4449809 | 6,32$ | ||
| 26 | 4452234 | Back, Chassis | ||||
| 26 | 4449809 | VIS | WP4449809 | 6,32$ | ||
| 27 | Liner, Oven (Not a Serviceable Part) | |||||
| 29 | 4455636 | SONDE | WPW10131825 | 107,55$ | ||
| 29 | 4449154 | SCREW | WP4449154 | 6,32$ | ||
| 37 | 4451354 | FUSE-THRML | WP4451354 | 41,20$ | ||
| 37 | 4449809 | VIS | WP4449809 | 6,32$ | ||
| 43 | 4455530 | BOTTM-MAIN | 45,30$ | |||
| 49 | 4448933 | Retainer | WP4448933 | |||
| 49 | 4449154 | SCREW | WP4449154 | 6,32$ | ||
| 50 | 4451747 | COVER-REAR | WP4451747 | 51,55$ | ||
| 50 | 4449809 | VIS | WP4449809 | 6,32$ | ||
| 51 | 4448477 | TRIM | WP4448477 | 91,26$ | ||
| 53 | 4449845 | BRKT-SUPRT | 24,36$ | |||
| 53 | 4449154 | SCREW | WP4449154 | 6,32$ | ||
| 53 | 4449316 | ISOLATION, Wrapper 30 " | 92,35$ | |||
| 53 | 4450365 | ISOLATION | WP4450365 | 87,71$ |
*Le prix peut changer sans préavis
