Marque: Whirlpool
Modèle: SF310BEGT5

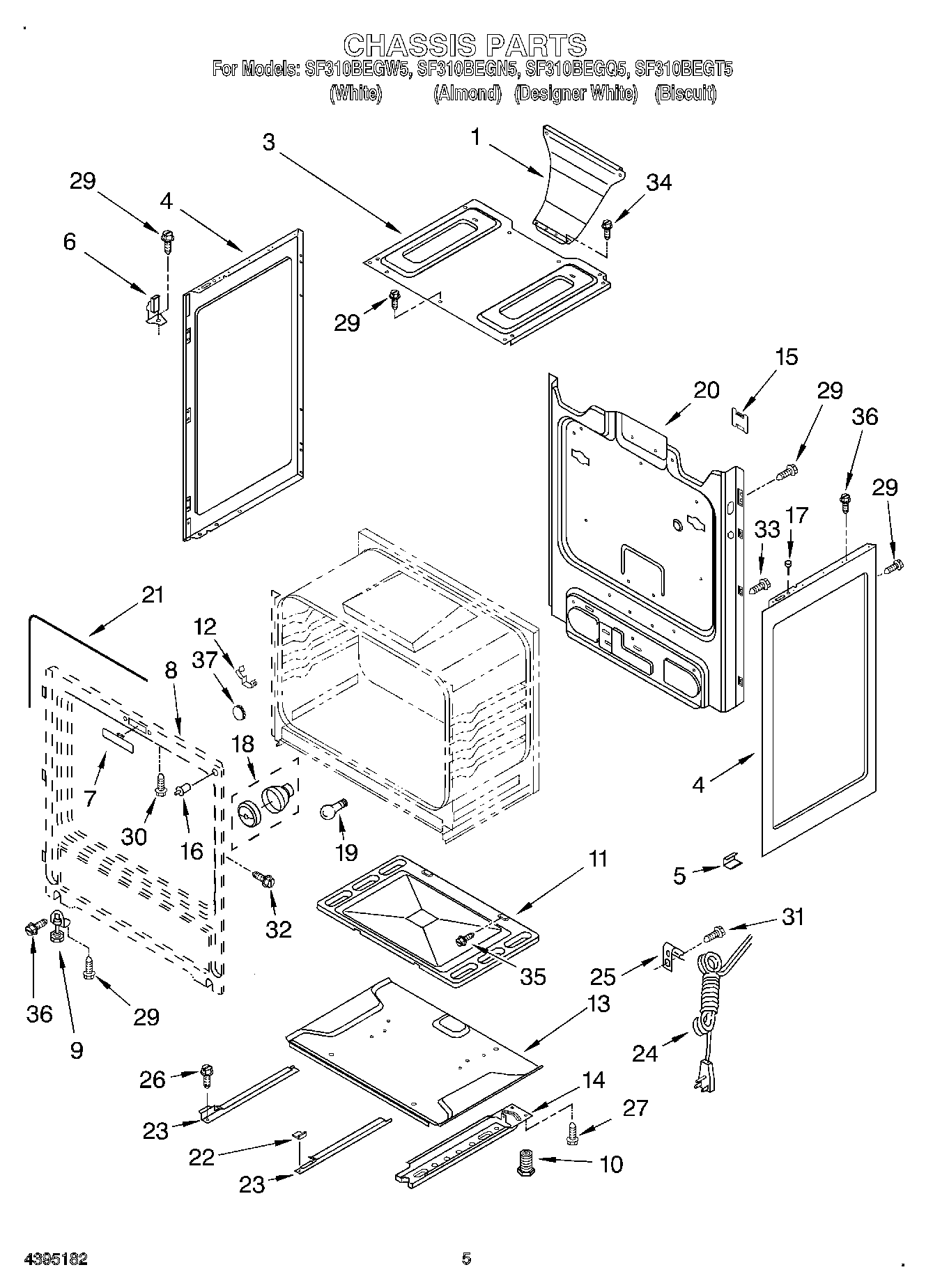

04 - CHASSIS


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | 3195727 | FLUE-OVEN | W11457094 | 117,14$ | ||
3 | 8273036 | BOX-BURNER | W11379351 | 47,21$ | ||
4 | 8053830 | PANNEAU LATERAL | WPW10575396 | 140,80$ | ||
4 | 8053831 | Panel, Side (2) (Almond-Textured) | 0,00$ | |||
4 | 8272519 | PANEL-SIDE | W10162246 | 152,85$ | ||
5 | 3196576 | Clip, Panel (6) | 0,00$ | |||
6 | 3186405 | Brkt, Manifold Mtg (Left Hand) | 0,00$ | |||
6 | 3186406 | Brkt, Manifold Mtg (Right Hand) | 0,00$ | |||
7 | 3196072 | Plug, Frame | 0,00$ | |||
8 | Frame, Front (Not Serviceable) | 0,00$ | ||||
9 | 3196037 | PATTE DE NIVELLEMENT | WP3196037 | 63,53$ | ||
10 | 312701 | PATTE DE NIVELLEMENT | WPW10058460 | 4,61$ | ||
11 | 3195097 | BOTTM-OVEN | WP3195097 | 172,45$ | ||
12 | 313382 | ATTACHE | 98005642 | 66,91$ | ||
13 | 3186056 | Baffle, Base | 0,00$ | |||
14 | 8053335 | GLISSIERE, DROIT | WPW10306546 | 102,17$ | ||
15 | 8054083 | Button, Plug | 0,00$ | |||
16 | 310345 | Switch, Door | 0,00$ | |||
17 | 3195809 | BUTOIR | 238614 | 52,72$ | ||
18 | 3176512 | DOUILLE ASS | W11594027 | 61,17$ | ||
19 | 311255 | Bulb, Light | 8009, 40A15F, WG03F02051 | 0,00$ | ||
20 | 8272921 | Back, Main | 0,00$ | |||
21 | 3186152 | JOINT DE PORTE | W11542153 | 44,00$ | ||
22 | 3195994 | Guide, Front (2) | 0,00$ | |||
23 | 3195732 | Plate, Guide (Left Hand) | 0,00$ | |||
23 | 3195731 | Plate, Guide (Right Hand) | 0,00$ | |||
24 | 8054037 | CORD-POWER | WP9757891 | 99,30$ | ||
25 | 3196256 | CLAMP | 549193 | 11,21$ | ||
26 | 3196165 | VIS | WP3196175 | 6,45$ | ||
27 | 3196537 | VIS | WP3196557 | 6,31$ | ||
29 | 3196178 | VIS | W11233072 | 12,16$ | ||
30 | 3196176 | VIS | W11233072 | 12,16$ | ||
31 | 3196173 | SCREW | W11244557 | 12,16$ | ||
32 | 3196177 | SCREW | WP7101P246-60 | 5,40$ | ||
33 | 3196183 | VIS | WP3196183 | 5,42$ | ||
34 | 3196537 | VIS | WP3196557 | 6,31$ | ||
35 | 3196152 | Screw | 0,00$ | |||
36 | 3196179 | VIS | WP98008545 | 15,51$ | ||
37 | 3196440 | Button, Plug | 0,00$ | |||
37 | 8272617 | ISOLATION | WPW10208653 | 66,64$ | ||
37 | 3195927 | Tie, Insulation | 0,00$ | |||
37 | 8272614 | INSULATION | W11688737 | 89,82$ |
*Le prix peut changer sans préavis
