Marque: Whirlpool
Modèle: KSSS42QDX04 - BUILT IN REFRIGERATOR

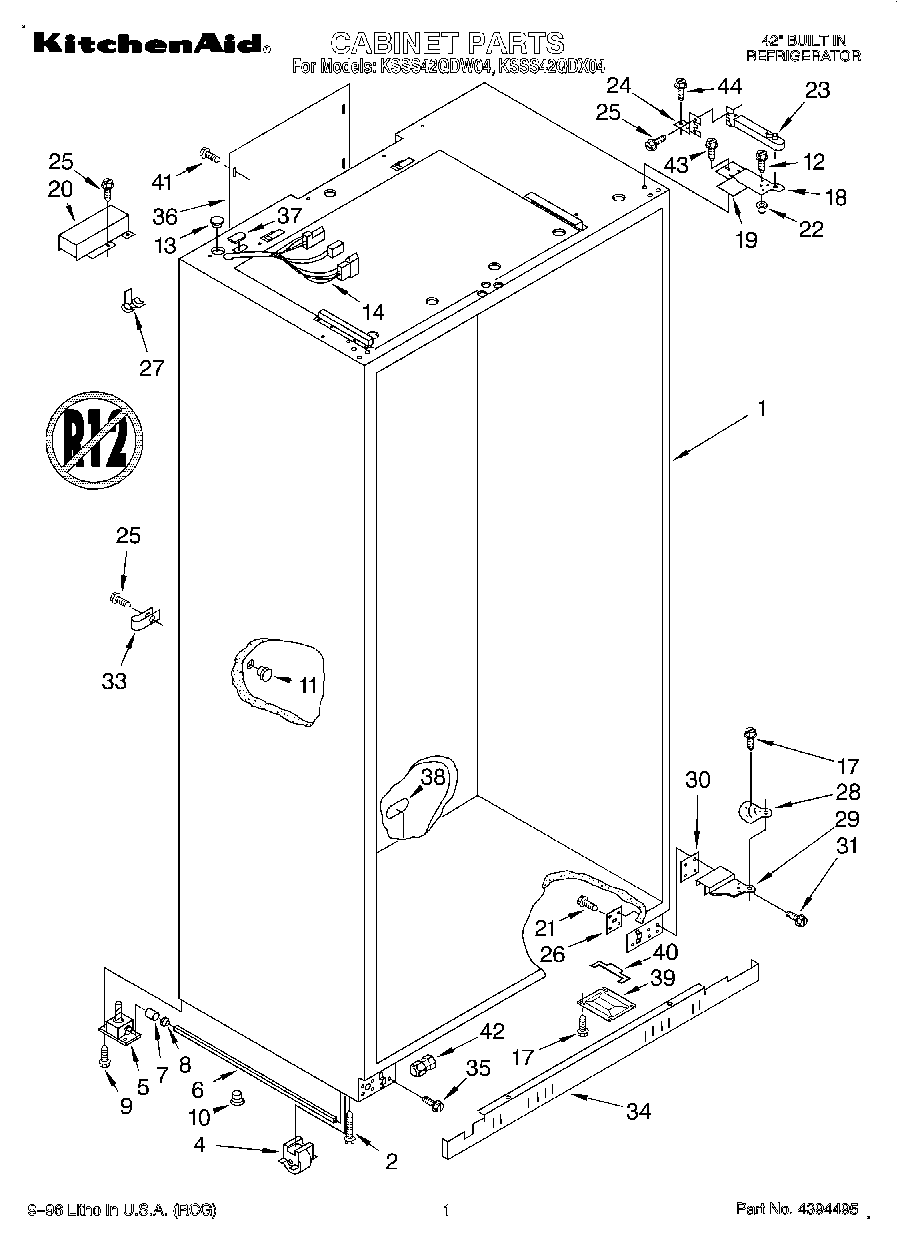

01 - CABINET
- 01 - CABINET
- 02 - CABINET TRIM
- 03 - FREEZER LINER
- 04 - REFRIGERATOR LINER
- 05 - REFRIGERATOR CONTROL PANEL
- 06 - FREEZER CONTROL PANEL
- 07 - REFRIGERATOR SHELF
- 08 - FREEZER SHELF
- 09 - TOP GRILLE AND UNIT COVER
- 10 - MOTOR AND ICE CONTAINER
- 11 - REFRIGERATOR DOOR
- 12 - FREEZER DOOR
- 13 - DISPENSER AND FRONT
- 14 - UPPER UNIT
- 15 - LOWER UNIT AND TUBE
- 16 - AIR FLOW AND RESERVOIR
- 17 - ICE MAKER, LIT/OPTIONAL
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (Not A Serviceable Part) | ||||
| 2 | 1112019 | Leveler, Front (2) | ||||
| 4 | 1112023 | ROULETTE | WPW10138054 | 34,87$ | ||
| 5 | 1112695 | PATTE DE NIVELLEMENT | 2005032 | 103,88$ | ||
| 6 | 2000670 | Adjusting Rod (2) | ||||
| 7 | 1113250 | Sleeve, Retainer (2) | ||||
| 8 | 1112937 | Bushing, Rod (2) | ||||
| 9 | 489359 | Screw | ||||
| 10 | 1112939 | Hole Plug, Leveler | ||||
| 11 | 1112849 | Cap, Grommet | ||||
| 12 | 2002902 | Stop Screw | ||||
| 13 | 1113122 | Grommet, Wiring | ||||
| 14 | 2003804 | Wiring Harness, Cabinet | ||||
| 17 | 2001295 | SCREW | 26,29$ | |||
| 18 | 2001976 | Hinge (Top) (Left Side) | ||||
| 18 | 2001975 | Hinge (Top) (Right Side) | ||||
| 19 | 2000770 | Shim, Hinge Top | ||||
| 20 | 1112805 | Guard, Wiring | ||||
| 21 | 487534 | DISTRIBUTEUR INFERIEUR | 89,99$ | |||
| 22 | 2002903 | HING-BUSHG | 32,77$ | |||
| 23 | 1112992 | Door Closer Assembly (2) | ||||
| 24 | 2000333 | Bracket, Door Closer | ||||
| 25 | 486194 | VIS | WP488729 | 6,39$ | ||
| 26 | 1112973 | Tap Plate, Hinge Butt (2) | ||||
| 27 | 1113227 | FASTENER | 7,76$ | |||
| 28 | 2003386 | Gap, Cover Assembly (Bottom) (Left Side) | ||||
| 28 | 2003387 | Gap, Cover Assembly (Bottom) (Right Side) | ||||
| 29 | 2001978 | Hinge (Bottom) (Left Side) | ||||
| 29 | 2001977 | Hinge (Bottom) (Right Side) | ||||
| 30 | 1112942 | Shim, Hinge (1) | ||||
| 30 | 1112943 | Shim, Hinge (2) | ||||
| 31 | 2000490 | Screw | ||||
| 33 | 2001266 | Tube clamp | ||||
| 34 | 2001960 | Grille Base, Front (White) | ||||
| 34 | 2001963 | Grille Base, Front (Chrome) | ||||
| 35 | 489238 | Screw (6) | ||||
| 36 | 2000684 | Cover, Rear | ||||
| 37 | 1113123 | Grommet, Wiring | ||||
| 38 | 1113079 | Grommet, Flexible | ||||
| 39 | 2003472 | Cup, Wiring | ||||
| 40 | 2003474 | Seal | ||||
| 41 | 2001377 | SCREW | 5,04$ | |||
| 42 | 2150347 | CONNECTOR | WP4211117 | 6,27$ | ||
| 43 | 2001415 | BOLT | WP8204624 | 12,55$ | ||
| 44 | 489359 | Screw |
*Le prix peut changer sans préavis
