Marque: Whirlpool
Modèle: KGCG220SBC0

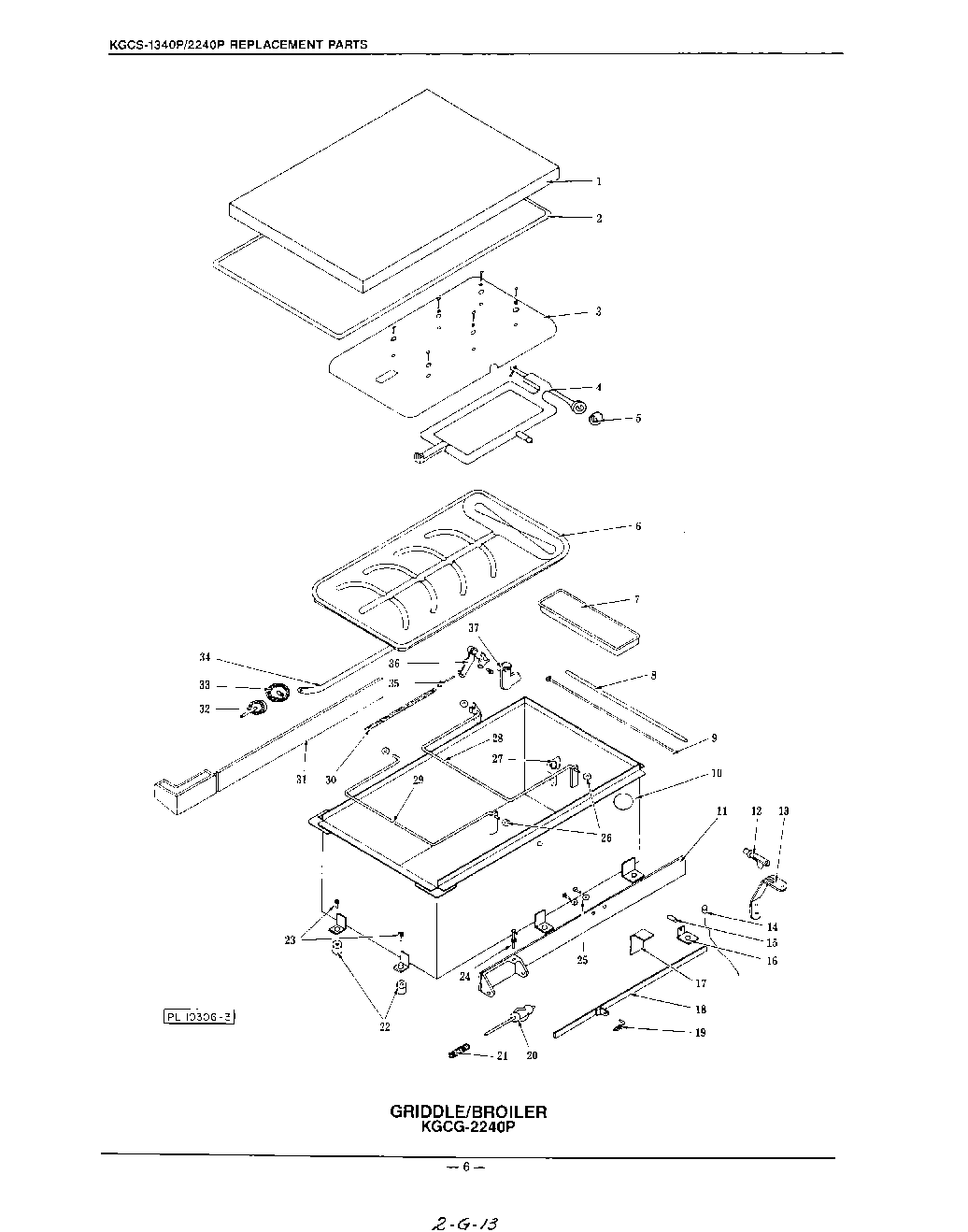

04 - GRIDDLE / BROILER
- 01 - COVER
- 02 - BURNER
- 03 - MAIN BODY
- 04 - GRIDDLE / BROILER


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | CC-13903 | Cutting Board | 0,00$ | |||
2 | 305611 | Griddle | 0,00$ | |||
3 | CC-05355 | Broiler Burner Heat Shield | 0,00$ | |||
4 | CC-30126 | Broiler Burner | 0,00$ | |||
5 | CC-516 | Air Shutter, Broiler Burner | 0,00$ | |||
6 | CC-4736 | Broiler Platter | 0,00$ | |||
7 | CC-4514 | Grease Cup | 0,00$ | |||
8 | 305702 | Broiler Box Spacer | 0,00$ | |||
9 | 305677 | Broiler Box Tie Bolt | 0,00$ | |||
10 | 305666 | Broiler Box | 0,00$ | |||
11 | 305631 | Broiler Box Reinforcement Plate, Right | 0,00$ | |||
12 | 305682 | Mixer Pin, Broiler | 0,00$ | |||
13 | 305676 | Mixer Pin, Bracket | 0,00$ | |||
14 | CC-30537 | Ignitor and Cap Assembly, Broiler | 0,00$ | |||
15 | CC-30484 | Flash Tube, Broiler | 0,00$ | |||
16 | CC-30488 | Broiler Ignitor Bracket | 0,00$ | |||
17 | 305678 | Ignitor Bracket Support | 0,00$ | |||
18 | 305664 | Sling Link Assy | 0,00$ | |||
19 | 305679 | Front Sling Adjustment Hook | 0,00$ | |||
20 | 305588 | Griddle Lift Cam and Shaft Assembly | 0,00$ | |||
21 | 305638 | Cam Shaft Spring | 0,00$ | |||
22 | CC-70766 | Spacer | 0,00$ | |||
23 | SA-21-23 | Screw, 10-24 x 1/4`` HWHTCS | 0,00$ | |||
24 | SC-117-4 | Screw, 10-24 x 1-1/2`` HHMS Slot | 0,00$ | |||
25 | WS-29-87 | Washer, 13/32 x 5/8 | 0,00$ | |||
26 | WS-29-89 | Washer, 7/16 x 1 | 0,00$ | |||
27 | 305675 | Burner Neck Bearing | 0,00$ | |||
28 | 305661 | Rear Sling Assembly | 0,00$ | |||
29 | 305657 | Front Sling Assembly | 0,00$ | |||
30 | CC-05001 | Broiler Lift Spring | 0,00$ | |||
31 | 305644 | Broiler Box Reinforcement Plate - Left | 0,00$ | |||
32 | 305589 | Front Gear and Shaft Assembly | 0,00$ | |||
33 | 305640-2 | Griddle Lift Gear | 0,00$ | |||
34 | 305646 | Connecting Bar | 0,00$ | |||
35 | 305701 | Eye Bolt, 10-24 x 1 1/2 HHMS Slot | 0,00$ | |||
36 | 305618 | Griddle Lift Spring - Coupling Assembly | 0,00$ | |||
37 | 305674 | Broiler Burner Shaft Bearing | 0,00$ |
*Le prix peut changer sans préavis
