Marque: Whirlpool
Modèle: 7GS6SHEXPQ01

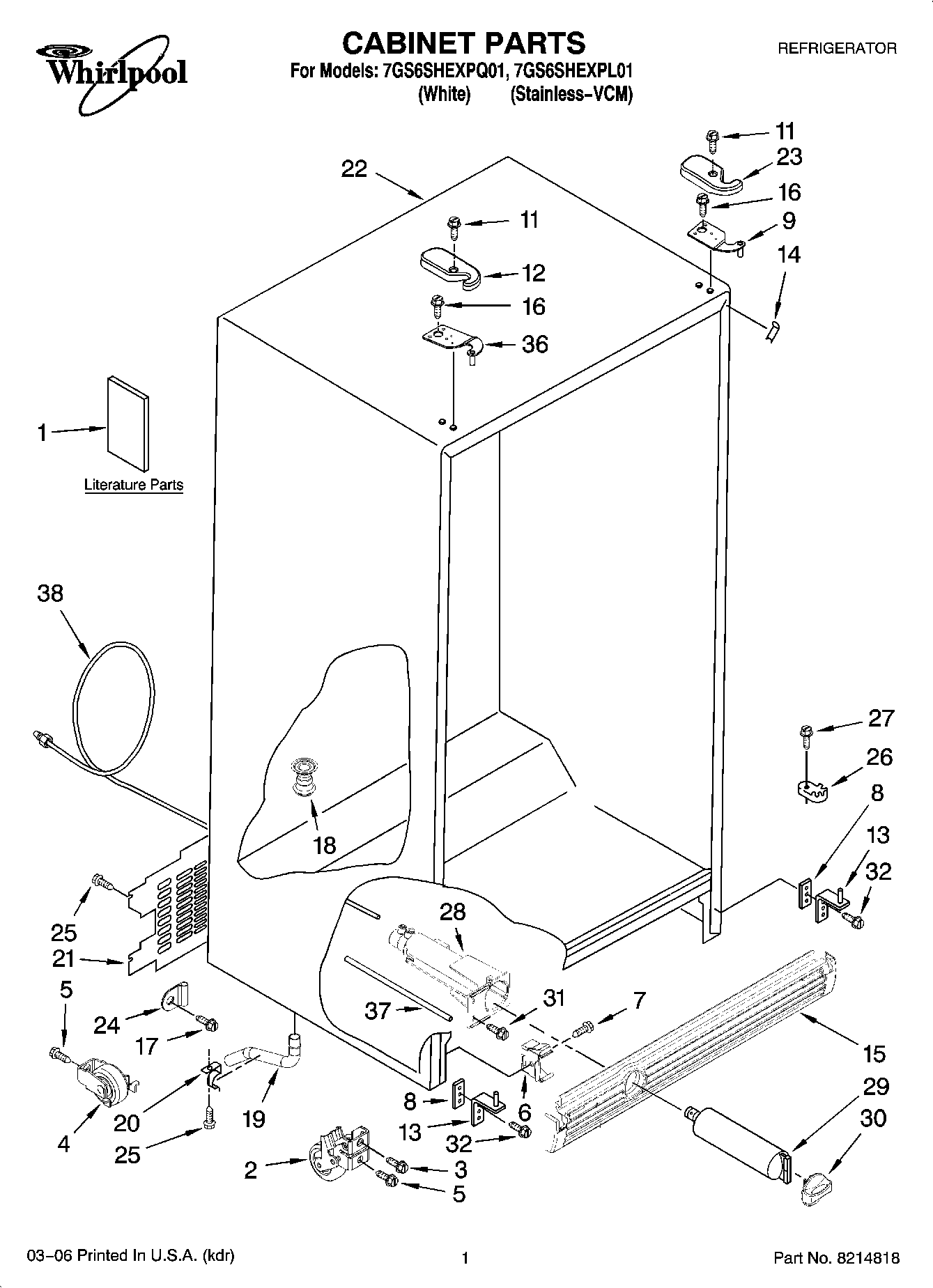

01 - CABINET PARTS
- 01 - CABINET PARTS
- 02 - REFRIGERATOR LINER PARTS
- 03 - REFRIGERATOR SHELF PARTS
- 04 - FREEZER LINER PARTS
- 05 - MOTOR AND ICE CONTAINER PARTS
- 06 - REFRIGERATOR DOOR PARTS
- 07 - FREEZER DOOR PARTS
- 08 - DISPENSER FRONT PARTS
- 09 - AIR FLOW PARTS
- 10 - CONTROL PARTS
- 11 - UNIT PARTS
- 12 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | 2261378 | Energy Guide | ||||
1 | 2261383 | Owner`s Manual | ||||
1 | 2255955 | Service & Wiring Sheet | ||||
1 | 2220407 | Modular Icemaker Service Sheet | ||||
1 | 2261037 | INSTRUCTION SHEET (DOOR REMOVAL) | ||||
1 | Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS | |||||
1 | 787316 | Icemaker | 787316L | |||
2 | 2174748 | ROULETTE | 4386774 | Appeler pour commander | ||
3 | 3400517 | SCREW | W10850698 | Appeler pour commander | ||
4 | 2196236 | Roller (Rear) (2) | WPW10250570 | |||
5 | 489427 | SCREW | WP489427 | Appeler pour commander | ||
6 | 2155013 | ATTACHE | WP2155013 | Appeler pour commander | ||
7 | 489478 | SCREW | WP489478 | Appeler pour commander | ||
8 | 2156056 | SHIM | WP2181911 | Appeler pour commander | ||
9 | 2203771 | PENTURE-PORTE | WP2203771 | Appeler pour commander | ||
11 | 8281227 | VIS | WP8281227 | Appeler pour commander | ||
12 | 2203407W | COVER | WP2203407W | Appeler pour commander | ||
12 | 2203407B | COUVERT DE PENTURE | WP2203407B | Appeler pour commander | ||
13 | 2304322 | PENTURE DE PORTE | 8201707 | Appeler pour commander | ||
14 | 2196094 | Filler, Wrapper (White) | ||||
14 | 2196097 | Filler, Wrapper (Black) | ||||
15 | 2198468W | GRILLE | W10803964 | Appeler pour commander | ||
15 | 2198468B | GRILLE | W10803964 | Appeler pour commander | ||
16 | 489497 | VIS | WP489497 | Appeler pour commander | ||
17 | 488687 | SCREW | W11693756 | Appeler pour commander | ||
18 | 940139 | Drain Fitting | WP2304888, W11566763 | |||
19 | 1108438 | EXTENSION | WP1108438 | Appeler pour commander | ||
20 | 1108439 | CLIP | WP1108439 | Appeler pour commander | ||
21 | 2214571 | Cover, Unit | ||||
22 | Cabinet, (Not A Serviceable Part) | |||||
23 | 2203408W | COUVERCLE DE PENTURE | WP2203408W | Appeler pour commander | ||
23 | 2203408B | COUVERCLE | WP2203408B | Appeler pour commander | ||
24 | 489348 | CLAMP-TUBE | Appeler pour commander | |||
25 | 489084 | VIS | WPW10141645 | Appeler pour commander | ||
26 | 2155311 | CAME DE PORTE | WPW10329686 | Appeler pour commander | ||
27 | 489483 | VIS | WP489483 | Appeler pour commander | ||
28 | 2186443 | BOITIER | WP2186443 | Appeler pour commander | ||
29 | 2255519 | Water Filter | EDR5RXD1 | |||
30 | 2186494W | EMBOUT-FILTRE | WP2186494W | Appeler pour commander | ||
30 | 2186494B | CAPUCHON-FILTRE | WP2186494B | Appeler pour commander | ||
31 | 489500 | SCREW | WP489500 | Appeler pour commander | ||
32 | 3400113 | VIS | WP489497 | Appeler pour commander | ||
36 | 2203770 | CHARNIERE,PORTE | WP2203770 | Appeler pour commander | ||
37 | 2304708 | TUYAU A EAU | WPW10350006 | Appeler pour commander | ||
38 | 2304697 | TUBE-WATER | WP2304697 | Appeler pour commander |
*Le prix peut changer sans préavis
