Marque: Whirlpool
Modèle: KECD865HBL05 - 36" ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP

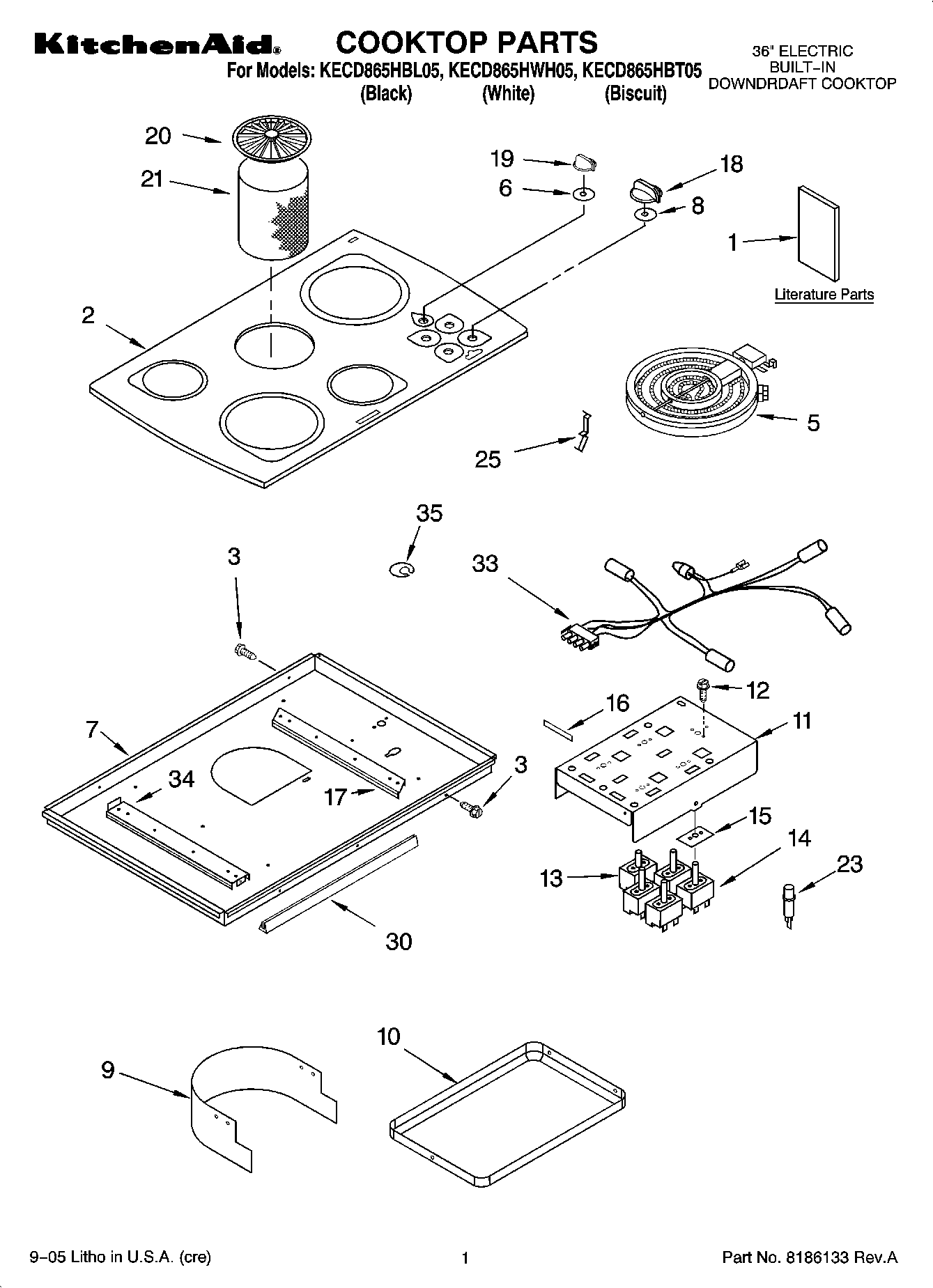

01 - COOKTOP PARTS
- 01 - COOKTOP PARTS
- 02 - BLOWER UNIT PARTS, OPTIONAL PARTS
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | LIT8285364 | Literature Parts (Installation Instructions) | ||||
| 1 | LIT4456014 | Literature Parts (Wiring Diagram) | ||||
| 1 | LIT3192515 | Literature Parts (Use & Care Guide) | ||||
| 1 | LIT3191638 | Safer Cooking Tips | 9762761 | |||
| 1 | COOKTOP PARTS | |||||
| 2 | 4455589 | Cooktop, Glass & Bracket Assembly (Black) | ||||
| 2 | 4455588 | Cooktop, Glass & Bracket Assembly (White) | ||||
| 2 | 4455587 | Cooktop, Glass & Bracket Assembly (Honeycomb) | 4455589 | |||
| 3 | 3196537 | SCREW, 8-18 X 3/8 | WP3196557 | |||
| 5 | 8523698 | Element, Surface (LR 1200W) | WP8523698, W10823711 | |||
| 5 | 8523693 | Element, Surface (L.F. (1000/2400W)) | WP4453909, W10823692 | |||
| 5 | 8523696 | ELEMENT SURFACE | W10823698 | 190,07$ | ||
| 5 | 8523697 | ELEMENT,SURFACE | W10823699 | 83,22$ | ||
| 6 | 3191387 | Seal, Switch | WP3188425 | |||
| 7 | 4456523 | Box, Burner | ||||
| 8 | 3183956 | Seal, Switch Cover | ||||
| 9 | 4455802 | Shield, Vent | ||||
| 9 | 3177991 | Screw | WP3177991 | |||
| 10 | 3190656 | Drip Bowl, Grease | ||||
| 11 | 4455354 | Bracket, Control Mounting | ||||
| 12 | 311865 | VIS | WP486579 | 5,68$ | ||
| 13 | 3190639 | Switch, Speed Control | ||||
| 14 | 3191049 | COMMUTATEUR A REGLAGE CONTINU | WP3191049 | 95,52$ | ||
| 14 | 3191050 | INFINITE SWITCH | WP3191050 | 95,26$ | ||
| 14 | 4456027 | COMMUTATEUR REGLAGE CONTINU | WP4456027 | 83,18$ | ||
| 15 | 8285469 | Seal, Switch | ||||
| 16 | 3192439 | JOINT,INTERRUPTEUR | W10491984 | 8,61$ | ||
| 17 | 3192520 | Rail, Element (Right Hand) | ||||
| 18 | 9750372FF | BOUTON | WP9750372FF | 19,12$ | ||
| 18 | 9750372FW | BOUTON | WP9750372FW | 18,24$ | ||
| 18 | 9750372FC | BOUTON | WP9750372FC | 7,03$ | ||
| 19 | 3190723 | Knob, Blower Switch (Black) | ||||
| 19 | 3190724 | Knob, Blower Switch (White) | ||||
| 19 | 3192502 | Knob, Blower Switch (Biscuit) | ||||
| 20 | 3192418 | Grille, Air | ||||
| 21 | 3192530 | Filter, Grease | ||||
| 23 | 3193012 | TEMOIN-LUMINEUX | 48,22$ | |||
| 25 | 3191791 | Spring, Locator | ||||
| 30 | 3193032 | Gasket, Vent Shield | ||||
| 33 | 3191343 | Light, Hot Surface Indicator | ||||
| 34 | 3192521 | Rail, Element (Left Hand) | ||||
| 35 | 3193094 | Plate, Cover |
*Le prix peut changer sans préavis
