Marque: Whirlpool
Modèle: RJE313PP1

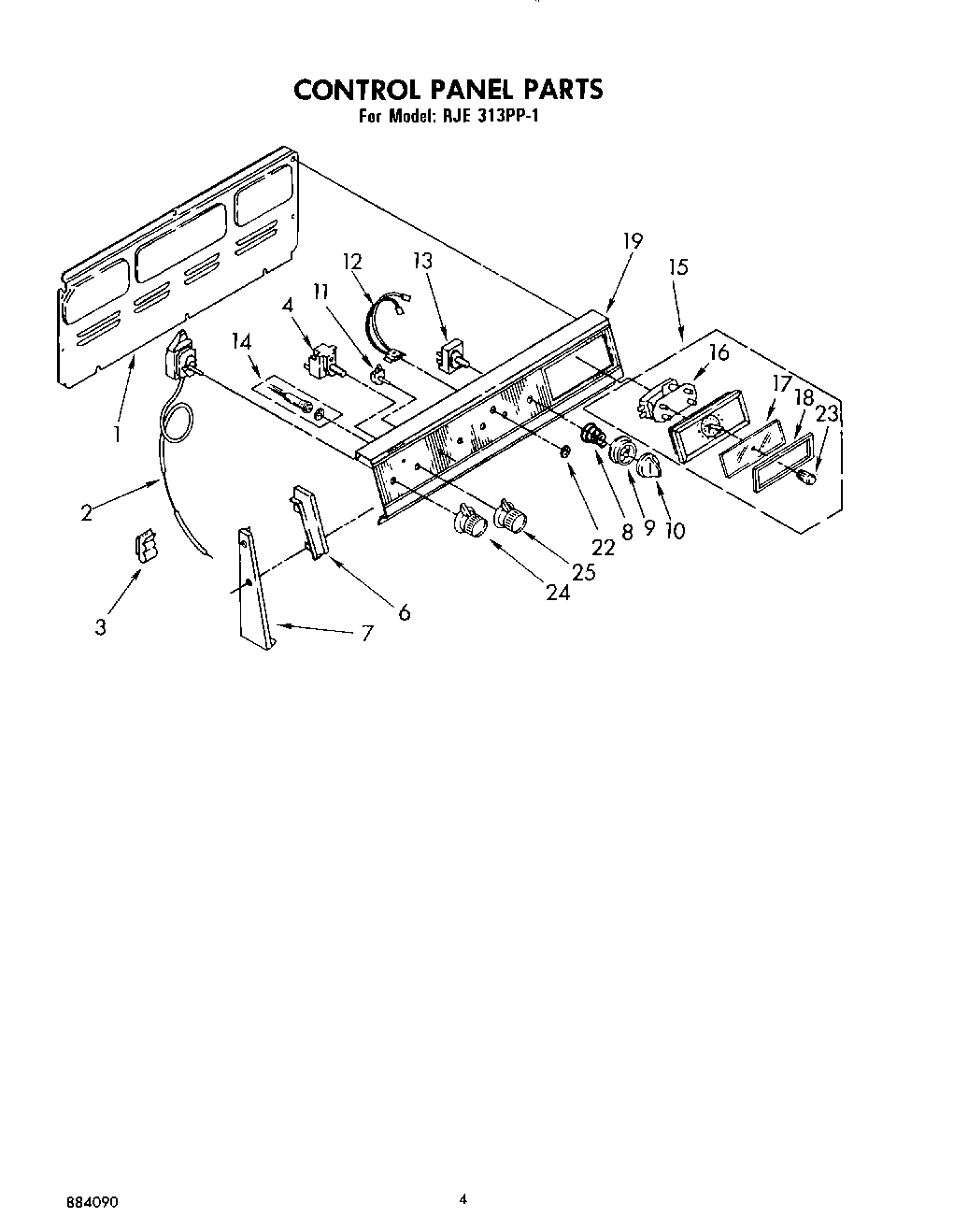

03 - CONTROL PANEL
- 01 - COOK TOP
- 02 - DOOR AND DRAWER, LIT/OPTIONAL
- 03 - CONTROL PANEL
- 04 - OVEN
- 05 - OVEN


# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | 308157 | Cover, Rear | 0,00$ | |||
1 | 343641 | VIS | WP681414 | 5,80$ | ||
2 | 308483 | Thermostat, Oven (Alternate) | 0,00$ | |||
2 | 308789 | Thermostat, Oven (Alternate) | 660534 | 0,00$ | ||
2 | 487384 | Thermostat, Oven (Screw, 6-32 x 1/4 (2)) | 0,00$ | |||
3 | 309211 | Clip, Speed | 0,00$ | |||
4 | 310348 | Switch, Selector | 0,00$ | |||
4 | 311865 | VIS | WP486579 | 5,68$ | ||
6 | 312864 | End Cap, R.H. | 0,00$ | |||
6 | 312866 | End Cap, L.H. | 0,00$ | |||
7 | 308854 | End Trim (R.H.) | 0,00$ | |||
7 | 308858 | End Trim (L.H.) | 0,00$ | |||
7 | 309112 | VIS | WP3390631 | 6,32$ | ||
7 | 343641 | VIS | WP681414 | 5,80$ | ||
8 | 307828 | Spring, Bezel (4) | 0,00$ | |||
9 | 307456 | BEZEL-KNOB | W11194997 | 46,30$ | ||
10 | 307458 | BOUTON | WP307458 | 12,97$ | ||
11 | 255335 | Switch, Pushbutton | WP8189867 | 0,00$ | ||
12 | 312861 | Light, Indicator (Surface Unit) (Includes Illus. 22) | 0,00$ | |||
13 | 311839 | COMMUTATEUR A REGLAGE CONTINU | W10900107 | 79,72$ | ||
13 | 311838 | COMMUTATEUR A REGLAGE CONTINU | W10900107 | 79,72$ | ||
13 | 311865 | VIS | WP486579 | 5,68$ | ||
14 | 310393 | Light, Indicator (Oven) | 0,00$ | |||
25 | 688805 | ATTACHE | WP688805 | 7,03$ | ||
25 | 328707 | Knob, Selector | 0,00$ | |||
24 | 328709 | Knob, Thermostat | 0,00$ | |||
23 | 308440 | Knob, Timer | 0,00$ | |||
22 | 309221 | Lens, Red | 0,00$ | |||
19 | 312604 | Screw 8-18 x 5/8 (4) | 0,00$ | |||
19 | 357670 | SCREW | W11693756 | 11,19$ | ||
19 | 338156 | VIS | WP488627 | 6,40$ | ||
19 | 312500 | Control Panel | 0,00$ | |||
18 | 258851 | Bezel, Knob | 0,00$ | |||
17 | 308441 | Glass, Clock | 0,00$ | |||
16 | 308442 | Motor, Timer | 0,00$ | |||
15 | 308147 | Clock, Complete (Includes 16, 17, 18 & 23) | 0,00$ |
*Le prix peut changer sans préavis
