Marque: Whirlpool
Modèle: KT2651-3

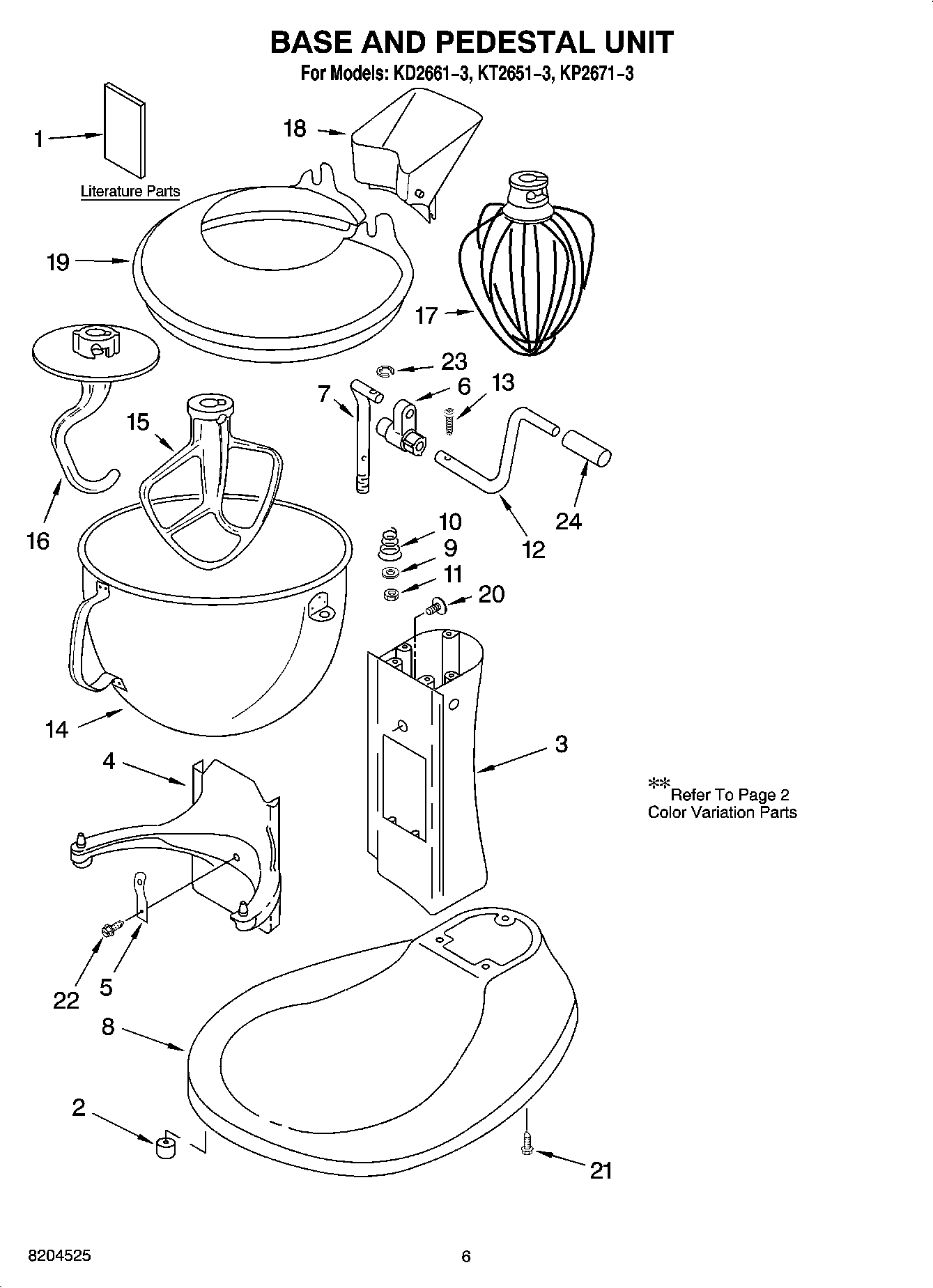

03 - BASE AND PEDESTAL UNIT ACCESSORY PARTS
- 01 - COLOR VARIATION PARTS
- 02 - CASE, GEARING AND PLANETARY UNIT
- 03 - BASE AND PEDESTAL UNIT ACCESSORY PARTS
# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | LIT9707946 | Literature Parts (Use & Care Guide) | ||||
1 | LIT8204525 | Literature Parts (Repair Parts List) | ||||
2 | 9703414 | FOOT | 8211628 | Appeler pour commander | ||
3 | Column Assembly | |||||
4 | Bowl Support | |||||
5 | 9703474 | CLIP | WPW10504114 | Appeler pour commander | ||
6 | 9706885 | BRAS-LEVIER | WP9706885 | Appeler pour commander | ||
7 | 9706787 | ROD-LIFT | W11376364 | Appeler pour commander | ||
8 | Base And Foot Supports | |||||
9 | 9703439 | WASHER | W11708395 | Appeler pour commander | ||
10 | 9237 | RESSORT | 4159622 | Appeler pour commander | ||
11 | 4159092 | NUT | 8533907 | Appeler pour commander | ||
12 | 9706788 | HANDLE | W11376371 | Appeler pour commander | ||
13 | 3400863 | VIS | WP3400814 | Appeler pour commander | ||
14 | 9703687 | RECIPIENT,6 QT. | WPW10245251 | Appeler pour commander | ||
15 | 9707674 | BATTEUR-MALAXEUR | WPW10672616 | Appeler pour commander | ||
15 | 9703485 | MELANGEUR | W11646967 | Appeler pour commander | ||
16 | 9707676 | HOOK-DOUGH | WPW10674620 | Appeler pour commander | ||
16 | 9703486 | CROCHET-PATTE | W11319616 | Appeler pour commander | ||
17 | 9703491 | FOUET | WP9703491 | Appeler pour commander | ||
18 | 9703534 | BEC VERSEUR,6 PINTES | WPW10617049 | Appeler pour commander | ||
19 | 9703533 | BEC VERSEUR,6 PINTES | WPW10617049 | Appeler pour commander | ||
20 | 9703426 | CAME | Appeler pour commander | |||
21 | 3400200 | VIS | W10913677 | Appeler pour commander | ||
22 | 3400018 | VIS | W10861883 | Appeler pour commander | ||
23 | 9703307 | ANNEAU | WP9703307 | Appeler pour commander | ||
24 | 9703698 | POIGNEE | W11501449 | Appeler pour commander | ||
24 | 4164778 | Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS | ||||
24 | 4164749 | FOOD GRINDER (FG-A) | ||||
24 | 4164751 | Grain Mill (GM-A) | ||||
24 | 4164768 | PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA) | ||||
24 | 4164775 | FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP) | ||||
24 | 4164750 | Rotor Slicer/Shredder (With 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin | ||||
24 | 4164824 | PASTA MAKER PLATES (SNPA) | ||||
24 | 4164774 | FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A) | ||||
24 | 4162838 | Food Tray (FT) | ||||
24 | 4164748 | JUICER (JE) | ||||
24 | 4164747 | CAN OPENER (CO) | ||||
24 | 4164803 | SAUSAGE STUFFER KIT (SSA) | ||||
24 | 4160588 | GRAISSE | W11200218 | Appeler pour commander |
*Le prix peut changer sans préavis
