Marque: Whirlpool
Modèle: KSCS23FVMS03

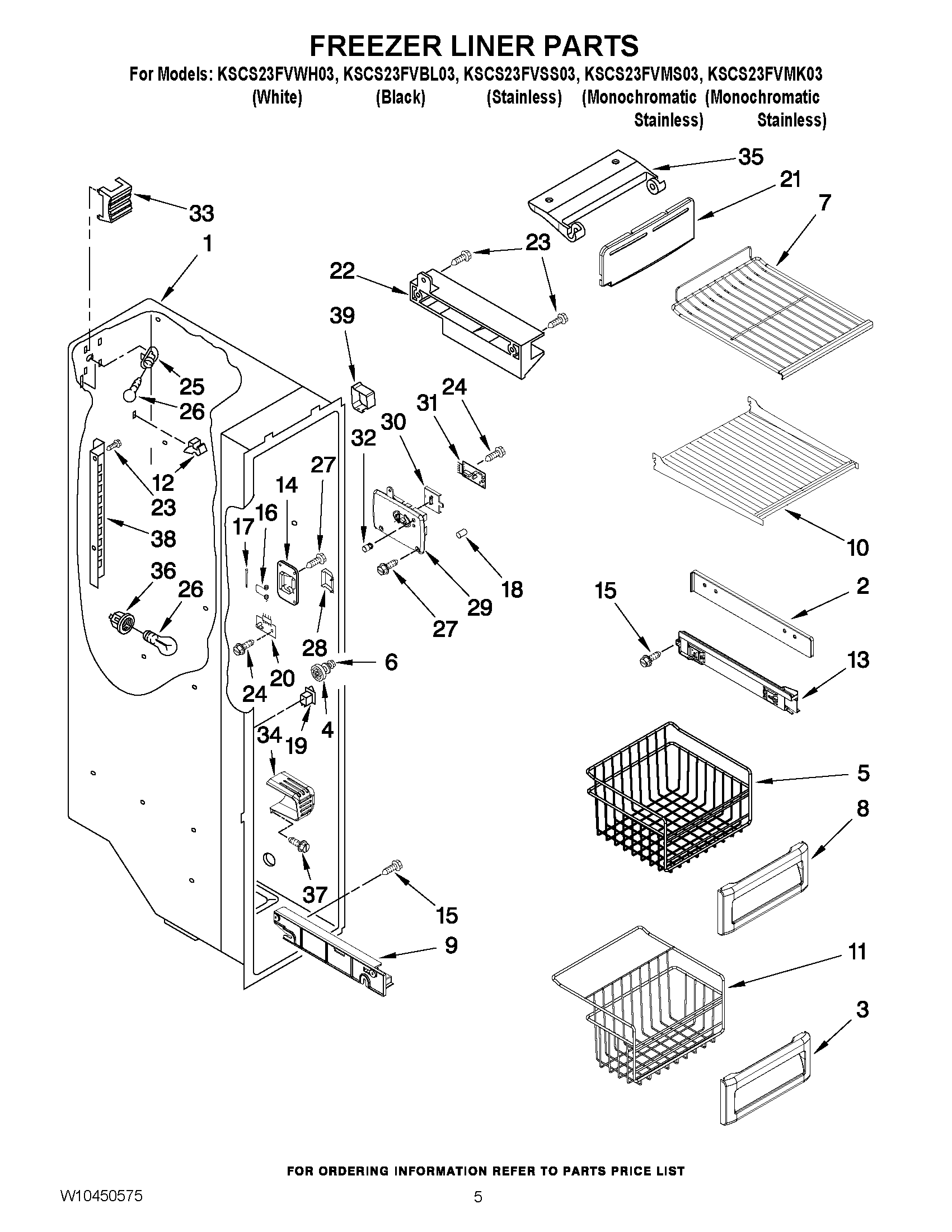

04 - FREEZER LINER PARTS
- 01 - CABINET PARTS
- 02 - REFRIGERATOR LINER PARTS
- 03 - REFRIGERATOR SHELF PARTS
- 04 - FREEZER LINER PARTS
- 05 - MOTOR AND ICE CONTAINER PARTS
- 06 - REFRIGERATOR DOOR PARTS
- 07 - FREEZER DOOR PARTS
- 08 - DISPENSER FRONT PARTS
- 09 - AIR FLOW PARTS
- 10 - CONTROL PARTS
- 11 - UNIT PARTS
- 12 - ICEMAKER PARTS
- 13 - OPTIONAL PARTS (NOT INCLUDED)
# sur le plan | # de pièce | Description | Remplacement | Prix | ||
---|---|---|---|---|---|---|
1 | N/P | LINER (NOT A SEVICEABLE PART) | ||||
2 | 2223777 | Spacer, Slide (2) | ||||
3 | 2224051 | Basket, Front | ||||
4 | W10173126 | SUPPORT DE TABLETTE | W11223328 | Appeler pour commander | ||
5 | 2223691 | Basket, Deep (2) | ||||
6 | W10191954 | SCREW | WP3-24004-109 | Appeler pour commander | ||
7 | 2223500 | Shelf Assembly, Cantilever (2) | ||||
8 | 2224053 | FRONT-BSKT | Appeler pour commander | |||
9 | 2223787 | Shelf Track (Right Side) | ||||
9 | 2223788 | Shelf Track (Left Side) | ||||
10 | 2223681 | Shelf, Fixed | ||||
11 | 2223694 | Basket, Lower | ||||
12 | 2315163 | CLIP | 2215823 | Appeler pour commander | ||
13 | 2301544 | GLIDE | Appeler pour commander | |||
13 | 2301545 | GLIDE | Appeler pour commander | |||
14 | 2259487 | Cover, Emitter | ||||
15 | W10154233 | Screw | ||||
16 | 2198635 | RESSORT | WP2198635 | Appeler pour commander | ||
17 | 2198634 | GOUPILLE-LEVIER | WP2198634 | Appeler pour commander | ||
18 | 2198665 | TUBE | Appeler pour commander | |||
19 | 1115373 | Switch, Rocker Arm | 188-11, W11457217 | Appeler pour commander | ||
20 | W10193840 | P.C. Board Emitter | W10757851, W11629974 | |||
21 | W10185438 | PORTE,GLACE | WPW10185438 | Appeler pour commander | ||
22 | 2212321 | Slide, Ice Maker Mounting (Right Side) | ||||
22 | 2306900 | SLIDE | Appeler pour commander | |||
23 | W10001260 | SCREW | WP489478 | Appeler pour commander | ||
24 | W10311505 | BULB-LIGHT | W11679940 | Appeler pour commander | ||
25 | 2162085 | DOUILLE | 4387478 | Appeler pour commander | ||
26 | W10194422 | BULB-LIGHT | W11679940 | Appeler pour commander | ||
27 | W10142283 | SCREW | WPW10142283 | Appeler pour commander | ||
28 | 2198633 | LEVIER | WP2198633 | Appeler pour commander | ||
29 | W10173569 | Cover, Receiver | ||||
30 | 2315398 | SLIDE | Appeler pour commander | |||
31 | W10290817 | P.C. BOARD, RECEIVER | W10757851, W11629974 | |||
32 | 2198643 | LENS | WP2198643 | Appeler pour commander | ||
33 | 2198589 | Light Shield | ||||
34 | 2212340 | LENS-LIGHT | W11298978 | Appeler pour commander | ||
35 | 2198641 | SUPPORT | WP2198641 | Appeler pour commander | ||
36 | 2155597 | Socket, Light | WPW10119935, W11606038 | Appeler pour commander | ||
37 | W10141645 | VIS | WPW10141645 | Appeler pour commander | ||
38 | 2198609 | Ladder (Left Side) | ||||
38 | 2198610 | Ladder (Right Side) | ||||
39 | 2303378 | SHIELD | Appeler pour commander |
*Le prix peut changer sans préavis
