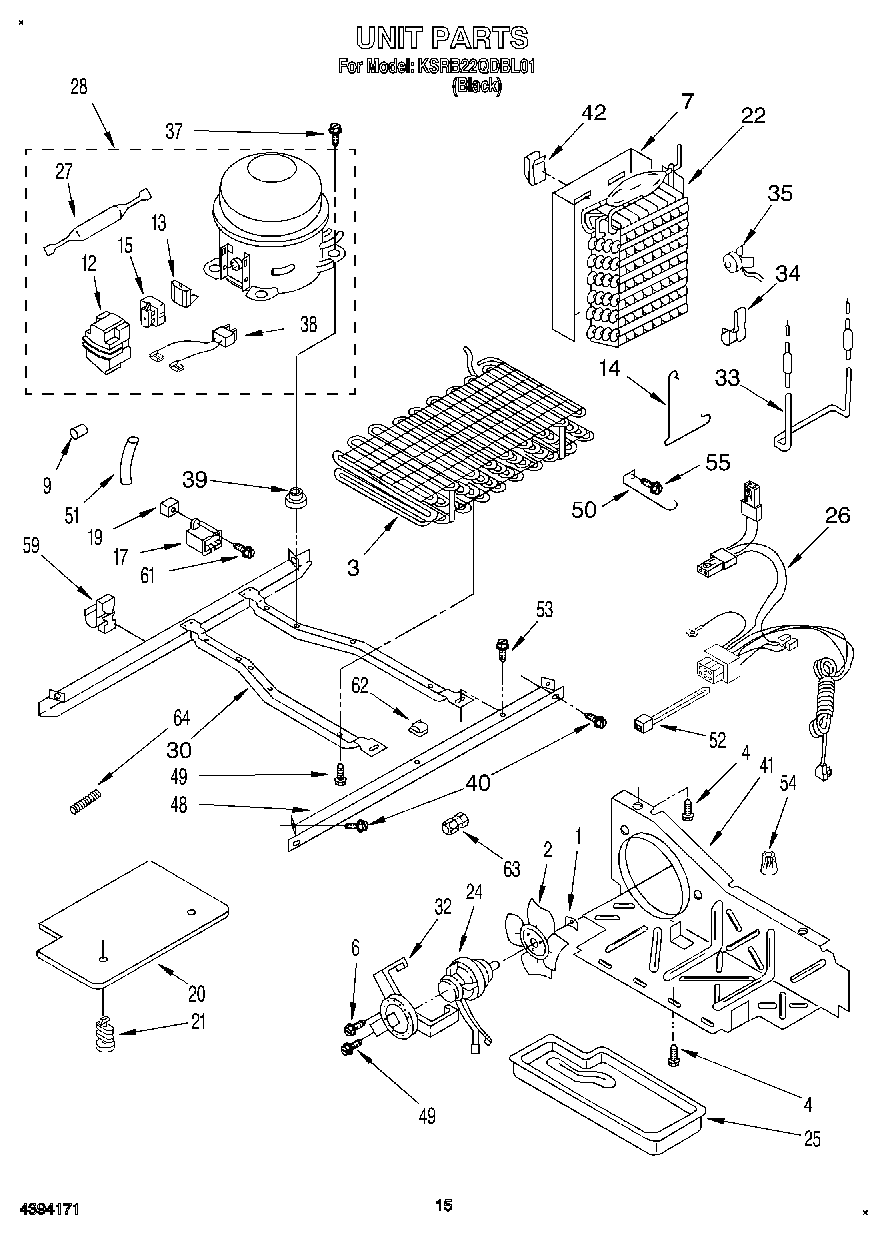

KSRB22QDBL01
# sur le plan # de pièce Description Remplacement Prix
1 486692 ECROU WP486692   7,20$
2 1108179 Fan, Blade   0,00$
3 2164513 Condenser Assembly   0,00$
4 489337 VIS WP489464   7,21$
6 489099 SCREW 681390   12,44$
7 2149293 Heat Shield And Drain Pan   0,00$
9 2158826 DAMPENER WP2158826   1,65$
12 2162358 COUVERCLE WP2162358   86,43$
13 2154760 LIMITEUR 4387535   173,29$
14 2161324 Clip, Defrost Heater WP2161324   0,00$
15 N/A Relay (See Overload)   0,00$
17 2169137 Capacitor   0,00$
19 509812 Screw Grommet   0,00$
20 2160505 Unit Cover, Bottom   0,00$
21 489396 CLIP   10,21$
22 2164518 EVAPORATOR WP2188822   312,72$
24 2162431 MOTEUR DE CONDENSEUR 115V 2W 833697   100,20$
25 2154114 Tray, Evaporator   0,00$
26 2181709 Harness, Intermediate   0,00$
27 2164409 ASSECHEUR-TUBE W10843121   50,07$
28 2169426 COMPRESSEUR 1/4+ R134A W10309990   563,13$
28 876765 TUBE ASS.   82,22$
30 2160500 FRAME 2304903   221,93$
32 548695 Bracket, Fan Motor   0,00$
33 2176064 ELEMENT DE DEGIVRAGE WP2323197   108,01$
34 2161330 Clip   0,00$
35 2176066 BI-METAL DEGIVRAGE WPW10225581   51,86$
37 489373 GROMMET 876811   7,07$
38 2172890 WIRE WP2172890   7,71$
39 1100826 GROMMET 876811   7,07$
40 489340 SCREW   9,86$
41 2149128 BAFFLE-AIR W10896764   91,79$
42 2155547 Clip, Heat   0,00$
48 2149717 Unit Mounting Rail   0,00$
49 488624 Screw   0,00$
50 1105612 GUARD-FAN   38,65$
51 2161302 Sleeve W11661094   0,00$
52 851095 TIE-WIRE   12,28$
53 489427 SCREW WP489427   7,11$
54 850145 Wire Connector   0,00$
55 489242 SCREW WP489478   7,13$
59 2155658 Clip, Wire & Tube   0,00$
61 488687 SCREW W11693756   12,94$
62 934011 Clip, Tube (3)   0,00$
63 2150347 CONNECTOR WP4211117   9,17$
64 983659 Tube, Spring   0,00$
64 978025 VALVE WP978025   96,85$
64 978026 VALVE   121,99$
64 978027 VALVE   116,17$
64 978028 VALVE, ACCESS (1/2``)   0,00$
64 978029 VALVE, ACCESS (5/8``)   0,00$
64 978030 VALVE   124,49$
64 876764 VALVE   87,00$
*Le prix peut changer sans préavis
