Marque: Whirlpool
Modèle: ED5VBEXTB00 - REFRIGERATOR

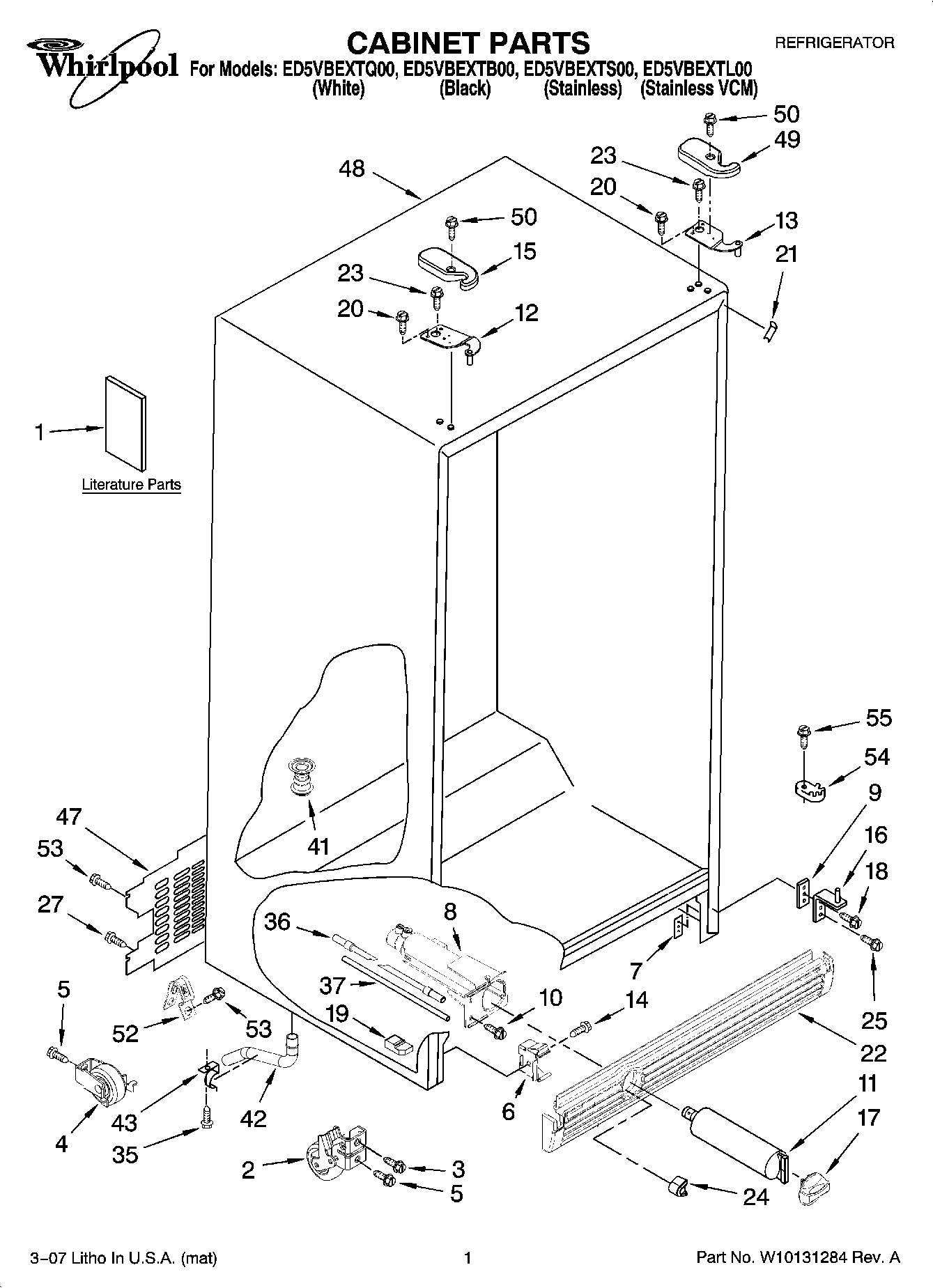

01 - CABINET PARTS
- 01 - CABINET PARTS
- 02 - REFRIGERATOR LINER PARTS
- 03 - REFRIGERATOR SHELF PARTS
- 04 - FREEZER LINER PARTS
- 05 - MOTOR AND ICE CONTAINER PARTS
- 06 - REFRIGERATOR DOOR PARTS
- 07 - FREEZER DOOR PARTS
- 08 - DISPENSER FRONT PARTS
- 09 - UNIT PARTS
- 10 - AIR FLOW PARTS
- 11 - CONTROL PARTS
- 12 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 2309541 | Use & Care Guide | ||||
| 1 | 2311817 | Service & Wiring Sheet | ||||
| 1 | 2311449 | Energy Label | ||||
| 1 | 2261037 | INSTRUCTION SHEET (DOOR REMOVAL) | ||||
| 1 | 628370 | Modular Icemaker Service Sheet | ||||
| 2 | 2174748 | ROLLER-CAB | 4386774 | 92,04$ | ||
| 3 | 3400517 | SCREW | W10850698 | 9,02$ | ||
| 4 | 2196236 | Roller (Rear) (2) | WPW10250570 | |||
| 5 | 489427 | SCREW | WP489427 | 5,98$ | ||
| 6 | 2155013 | ATTACHE | WP2155013 | 6,27$ | ||
| 7 | 2304249 | Tap Plate (2) | WP2304249 | |||
| 8 | 2260507 | BOITIER | WPW10121138 | 131,86$ | ||
| 9 | 2209697 | SHIM | WP2209697 | 54,52$ | ||
| 10 | 489500 | SCREW | WP489500 | 6,63$ | ||
| 11 | 4396841 | FILTRE A EAU | EDR3RXD1B, EDR3RXD1 | 59,99$ | ||
| 12 | 2203770 | CHARNIERE,PORTE | WP2203770 | 51,74$ | ||
| 13 | 2203771 | PENTURE-PORTE | WP2203771 | 53,19$ | ||
| 14 | 488500 | SCREW | WP489128 | 9,34$ | ||
| 15 | 2203407W | COVER | WP2203407W | 19,93$ | ||
| 15 | 2203407B | COUVERT DE PENTURE | WP2203407B | 17,88$ | ||
| 16 | 2217075 | PENTURE DE PORTE | 8201707 | 46,16$ | ||
| 17 | 2260518W | CAPUCHON FILTRE | WP2260518W | 27,45$ | ||
| 17 | 2260518B | CAPUCHON-FILTRE | WP2260518B | 25,70$ | ||
| 18 | 3400113 | VIS | WP489497 | 9,27$ | ||
| 19 | 2260519 | Block, Housing Support | ||||
| 20 | 3400858 | SCREW | W10853301 | 8,02$ | ||
| 21 | 2201014 | FILLER | WPW10283959 | 7,03$ | ||
| 21 | 2201017 | FILLER | W11252732 | 10,03$ | ||
| 22 | 2260500W | GRILLE | WPW10311032 | 61,86$ | ||
| 22 | 2260500B | GRILLE | WPW10311033 | 96,09$ | ||
| 23 | 489497 | VIS | WP489497 | 9,27$ | ||
| 24 | 2260503W | Button, Water Filter (White) | ||||
| 24 | 2260503B | BUTTON | WP2260503B | 43,01$ | ||
| 25 | 3400103 | SCREW | W10856122 | 6,65$ | ||
| 27 | 489290 | SCREW | WP488488 | 5,64$ | ||
| 35 | 489464 | VIS | WP489464 | 5,69$ | ||
| 36 | 2304697 | TUBE-WATER | WP2304697 | 71,39$ | ||
| 37 | 2255012 | TUBE-WATER | WP2255153 | 71,80$ | ||
| 41 | 940139 | Drain Fitting | WP2304888 | |||
| 42 | 1108438 | EXTENSION | WP1108438 | 27,33$ | ||
| 43 | 1108439 | CLIP | WP1108439 | 7,49$ | ||
| 47 | 2252035 | COVER-UNIT | WP2188755 | 56,34$ | ||
| 48 | Cabinet, (Not A Serviceable Part) | |||||
| 49 | 2203408W | Hinge Cover (White) | WP2203408W | |||
| 49 | 2203408B | COUVERCLE | WP2203408B | 17,62$ | ||
| 50 | 8281227 | VIS | WP8281227 | 9,37$ | ||
| 52 | 549193 | CLAMP | WP3196256 | 34,36$ | ||
| 53 | 489084 | VIS | WP488729 | 6,39$ | ||
| 54 | 2155311 | CAME DE PORTE | WPW10329686 | 4,45$ | ||
| 55 | 489483 | VIS | WP489483 | 9,37$ |
*Le prix peut changer sans préavis
