Marque: Whirlpool
Modèle: KBLS36MHX00 - BUILT-IN BOTTOM MOUNT REFRIGERATOR

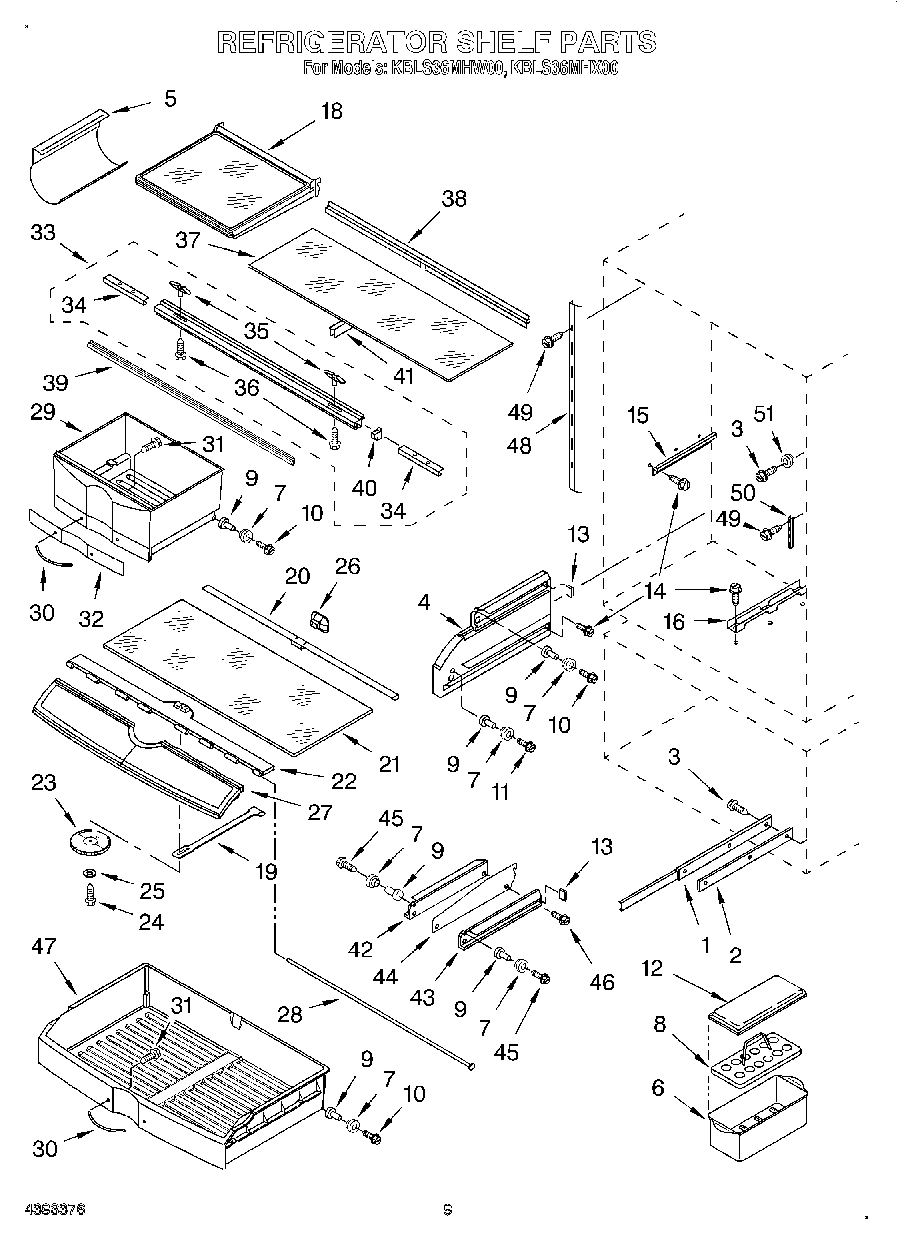

06 - REFRIGERATOR SHELF
| # sur le plan | # de pièce | Description | Remplacement | Prix | ||
|---|---|---|---|---|---|---|
| 1 | 2005134 | Slide, Freezer Basket | ||||
| 2 | 2005981 | Spacer, Slide | ||||
| 3 | 487559 | Screw, 8-15 x 1.250 | ||||
| 4 | 2005138 | Spacer, Crisper (Right Side) | ||||
| 4 | 2005139 | Spacer, Crisper (Left Side) | ||||
| 5 | 2179375 | SUPPORT,VIN | W10777924 | 17,93$ | ||
| 6 | 2169933 | BAC A OEUFS | W10136387A | 15,68$ | ||
| 7 | 2188212 | Roller | ||||
| 8 | 2164373 | EGG-CONTNR | WP2177817 | 13,79$ | ||
| 9 | 2174478 | OEILLET | WP2174478 | 13,62$ | ||
| 10 | 489211 | VIS | WPW10272364 | 7,84$ | ||
| 11 | 489261 | PIN | WP489261 | 5,97$ | ||
| 12 | 2169935 | Cover | ||||
| 13 | 1113169 | STOP-ROLLR | 10,39$ | |||
| 14 | 486194 | VIS | WP488729 | 6,39$ | ||
| 15 | 2005987 | Support, Crisper Shelf (2) | ||||
| 16 | 2006454 | Rail, Deli Center | ||||
| 18 | 2005571 | Shelf (4) | ||||
| 19 | 2005429 | Air Damper, Deli | ||||
| 20 | 2005151 | Rail-Rear, Deli | ||||
| 21 | 2005152 | Glass Shelf, Deli | ||||
| 22 | 2005153 | Rail-Front, Deli | ||||
| 23 | 2005415 | Control Knob, Deli | ||||
| 24 | 2006235 | SCREW | WP3400065 | 6,32$ | ||
| 25 | 2006252 | WASHER | 11,46$ | |||
| 26 | 2005165 | Connector, Deli Pan | ||||
| 27 | 2005428 | Lid, Deli Pan | ||||
| 28 | 2005923 | Hinge Rod, Deli Pan | ||||
| 29 | 2005157 | Cripser Pan | ||||
| 30 | 2005480 | Handle, Crisper Pan | ||||
| 31 | 2006253 | SCREW | 11,46$ | |||
| 32 | 2005986 | Overlay, Crisper Pan | ||||
| 33 | 2005424 | Rail-Front, Crisper Shelf | ||||
| 34 | 2005425 | Vent, Crisper Shelf | ||||
| 35 | 2005413 | Slide-Humidity, Crisper Shelf | ||||
| 36 | 2006254 | SCREW | 11,19$ | |||
| 37 | 2005477 | Glass, Crisper Shelf | ||||
| 38 | 2005478 | Rail-Rear, Crisper Shelf | ||||
| 39 | 2005479 | Seal-Front, Crisper Shelf | ||||
| 40 | 2005984 | Insulation, Crisper Rail | ||||
| 41 | 2005985 | Baffle-Center, Crisper Shelf | ||||
| 42 | 2005794 | Center Support, Left Half | ||||
| 43 | 2005795 | Center Support, Right Half | ||||
| 44 | 2005796 | Bracket, Center Support | ||||
| 45 | 2003478 | VIS | WPW10272364 | 7,84$ | ||
| 46 | 2006235 | SCREW | WP3400065 | 6,32$ | ||
| 47 | 2005163 | Deli Pan | ||||
| 48 | 2005410 | Ladder, Shelf (4) | ||||
| 49 | 2006475 | SCREW | 11,46$ | |||
| 50 | 2005797 | Ladder, Crisper Support | ||||
| 51 | 2004068 | Shelf Stud |
*Le prix peut changer sans préavis
