Brand: Electrolux
Model: E30EW7CGSS2 - WALL OVEN

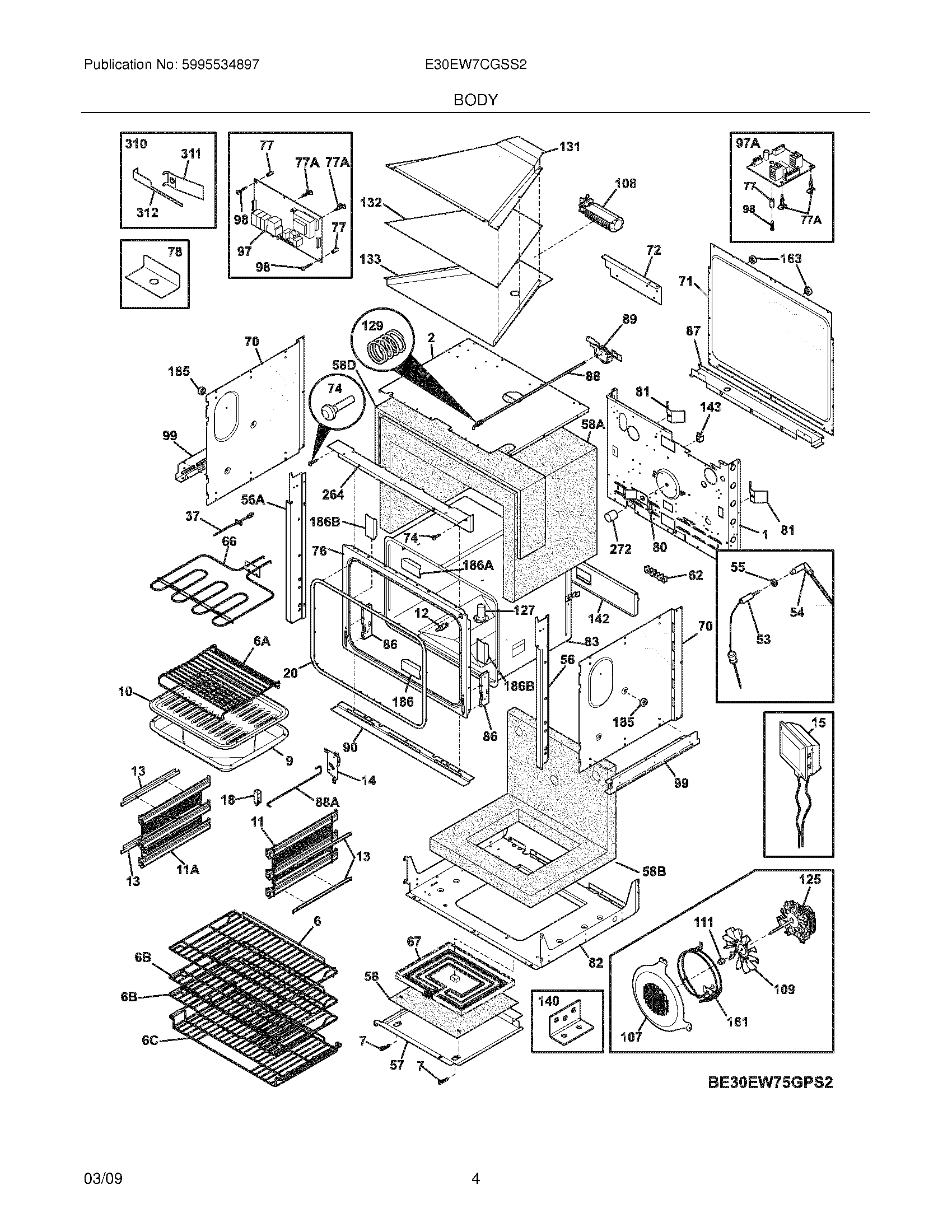

05 - BODY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 7318259220 | Back,main | 318259220 | $0.00 | ||
| 2 | 7318376700 | Shield,oven top | 318376700 | $0.00 | ||
| 6 | 7318240103 | Shelf,oven ,fixed | 318345400 | $0.00 | ||
| 6A | 7318365800 | RACK,BROILER PAN | 318365800, WG02F06960 | $53.70 | ||
| 6B | 7318345404 | OVEN SHELF(EXTENSIBLE) 30" | 318345405 | $163.70 | ||
| 6C | 7318345410 | Shelf,oven ,extendable | 318345406 | $0.00 | ||
| 7 | 7318368300 | PIN,LOCKING,(2) | 318368300 | $10.15 | ||
| 9 | 7318138801 | PAN,BROILER | 318138801 | $55.54 | ||
| 10 | 7318126401 | INSERT,BROILER PAN,COBALT BLUE | 316082001 | $50.80 | ||
| 11 | 7318240014 | Glide & Support assy,oven shelves ,RH | 318240014 | $0.00 | ||
| 11A | 7318240015 | Glide & Support assy,oven shelves ,LH | 318240015 | $0.00 | ||
| 12 | 7316445501 | Switch,oven light ,door frame | 316445501, 808136601 | Call to order | ||
| 13 | 7318603913 | Bracket,ladder mtg. ,(4) | 318603913 | $0.00 | ||
| NI | 75304456367 | Rivet,ladder bracket ,(8) | 5304456367 | $0.00 | ||
| 14 | 7318562200 | SENSOR BRACKET | 318562200 | $264.15 | ||
| NI | 7318341201 | Jumper,electronic ,rack sensor | 318341201 | $0.00 | ||
| 15 | 7318241006 | LAMP ASSY,HALOGEN | 139001800 | $118.30 | ||
| 18 | 7318562300 | BRACKET,ROD | 318562300 | $17.25 | ||
| 20 | 7318239001 | GASKET,OVEN DOOR | 318239001 | $115.10 | ||
| 37 | 7316217002 | OVEN TEMPERATURE SENSOR | 316217002, WG02L02256 | $63.15 | ||
| NI | 7318373001 | Bracket,receptacle ,temp probe | 318373001 | $0.00 | ||
| NI | 75304435874 | Plate,covering ,probe | 5304435874 | $0.00 | ||
| 53 | 7318601302 | PROBE, MEAT | 5304504202 | $115.40 | ||
| 54 | 7318601206 | RECEPTACLE,PROBE | 318601206 | $175.60 | ||
| NI | 7316247800 | LOCK WASHER | 316247800 | $17.40 | ||
| 55 | 7316247700 | NUT,HEX | 316247700 | $17.40 | ||
| 56 | 7318236522 | Trim,side ,black ,RH | $0.00 | |||
| 56A | 7318236523 | Trim,side ,black ,LH | 318236523 | $0.00 | ||
| 57 | 7318361610 | PANEL,SERVICE | 318361610 | $95.05 | ||
| 58 | 7318330501 | Insulation,service panel ,12.47 x 14.77 | 318330501 | $0.00 | ||
| 58A | 7318386100 | Insulation,oven wrapper | 318594300 | $0.00 | ||
| 58B | 7318362100 | Insulation,rear & bottom ,oven wrapper | 318594324 | $0.00 | ||
| 58D | 7318362124 | Insulation,26 x 9.5 x .5 | 318362124 | $0.00 | ||
| 62 | 7316056000 | TERMINAL BLOCK | 5304409888, WG02A00893 | $11.60 | ||
| NI | 75303323139 | SCREW, 10-24 X 29/32 | 5303323139 | $13.80 | ||
| NI | 75303323144 | Nut,10-32 | 732071040 | $0.00 | ||
| 66 | 7318255806 | ELEMENT BROIL,4000W | 318255806 | $288.85 | ||
| 67 | 7318601601 | BAKE ELEMENT, HIDDEN | 318601604 | $252.55 | ||
| NI | 7318231838 | WIRING HARNESS,BAKE ELEMENT | 318231870 | $79.85 | ||
| 70 | 7318259102 | Shield,insulation ,sides ,(2) | 318259114 | $0.00 | ||
| 71 | 7318376800 | Panel,rear box | 318376800 | $0.00 | ||
| 72 | 7318377100 | Cover,main back | 318377100 | $0.00 | ||
| 74 | 7318283600 | Bumper | 318283600 | $0.00 | ||
| 76 | 7318056241 | Front,oven | 318056241 | $0.00 | ||
| 77 | 7316247900 | SPACER,POWER BOARD | 316247900 | $45.70 | ||
| 77A | 7316114100 | SPACER | 316114100 | $62.40 | ||
| 78 | 7318243601 | Bracket,stopping | 318243603 | $0.00 | ||
| 80 | 75303320846 | Plate,oven mtg | 5303320846 | $0.00 | ||
| 81 | 7318192400 | Spring,oven | 318192400 | $0.00 | ||
| 82 | 7318258730 | Shield,insulation ,lower | 318258775 | $0.00 | ||
| 83 | 7318386001 | Liner,oven assy | $0.00 | |||
| 86 | 7318241406 | RECEPTACLE HINGE 2 | 318241406 | $72.60 | ||
| NI | 75304461333 | SCREW 10-32 X 17/32 | 5304461333 | $13.80 | ||
| 87 | 7318260600 | Bracket,cable mtg. | $0.00 | |||
| NI | 75303323136 | SCREW | 732022460, WG02A00980 | $2.60 | ||
| 88 | 7318250203 | Rod,latch ,w/bushing | 318250203 | $0.00 | ||
| NI | 7318167300 | CLIP | 318167300 | $2.90 | ||
| 88A | 7318376505 | Rod,latch | 318376505 | $0.00 | ||
| 89 | 7318095965 | MOTOR,LATCH ASSY,W/BRKT & SWIT | 318095965 | $149.50 | ||
| NI | 75303316982 | Foam seal,(2) | $0.00 | |||
| 90 | 7318370403 | BRACKET,GUTTER,BLACK | 318370403 | $184.05 | ||
| 97 | 7316443925 | Board,relay | 316443925 | $0.00 | ||
| 97A | 7316519200 | RELAY PLATE, CONVECTION | 316519200 | $273.60 | ||
| 98 | 75303297477 | SCREW | 5303297477 | $14.50 | ||
| 99 | 7318256203 | Bracket,side ,bottom ,(2) | 318256203 | $0.00 | ||
| 107 | 7318906601 | COVER FAN | 318906601 | $198.10 | ||
| 108 | 7318073019 | MOTOR,BLOWER | 318073019 | $366.50 | ||
| 109 | 7318398300 | FAN WHEEL | 318398302 | $24.70 | ||
| 111 | 7318399800 | ECROU | 316136600, WG02A01650 | $19.60 | ||
| 125 | 7318398200 | CONVECTION FAN MOTOR KIT | 5304467898 | $216.25 | ||
| NI | 7318142100 | Washer,motor ,convection | 318142100 | $0.00 | ||
| 127 | 7318357003 | Adapter Assembly,w/vent tube ,and catalyst | 318357003 | $0.00 | ||
| 129 | 75303311164 | SPRING | 5303311164, WG02A00936 | $0.00 | ||
| 131 | 7318376911 | Channel,air ,upper | 318376911 | $0.00 | ||
| 132 | 7318237603 | Divider,air channel | 318237603 | $0.00 | ||
| 133 | 7318237501 | Channel,air ,lower | 318237501 | $0.00 | ||
| 140 | 7318399310 | Bracket,holding | 318399313 | $0.00 | ||
| 142 | 7318123910 | Deflector | $0.00 | |||
| 143 | 7318172904 | SUPPORT,WIRE | 318172904 | $2.90 | ||
| 161 | 7318255507 | Element,convection ,1600 W | 318255512 | $0.00 | ||
| 163 | 7318531703 | Spacer,(4) | 318531703 | $0.00 | ||
| 185 | 7318531800 | SPACER - OVEN SHIELD | 318531800 | $13.05 | ||
| 186 | 7318236901 | Bracket,oven ,lower | 318236901 | $0.00 | ||
| NI | 75304436875 | SCREW,8-18 X 1/2,BLACK | 5304436875 | $0.00 | ||
| 186 | 7318237001 | Bracket,oven ,upper | 318237001 | $0.00 | ||
| 186 | 7318237101 | Bracket,oven ,side ,(2) | 318237101 | $0.00 | ||
| 264 | 7318278611 | Trim,vent | 318278611 | $0.00 | ||
| 272 | 7318249403 | Tube,protector | 318249412 | $0.00 | ||
| 310 | 75304435864 | Kit,cabinet mtg ,w/instructions | 5304435864 | $0.00 | ||
| 311 | 7318246000 | Bracket,cabinet mtg | 5304435864 | $0.00 | ||
| 311 | 75304438005 | SCREW,6 X 1,BLACK | 5304438005 | $10.15 | ||
| 312 | 7318246702 | TOOL,RH CABINET BRACKET | 318246702 | $11.60 | ||
| 312 | 7318246703 | TOOL,LH CABINET BRACKET | 318246703 | $11.60 | ||
| NI | 7318394441 | HARNESS ASSEMBLY,CONDUIT,ELBOW | 5304506983 | $127.75 | ||
| NI | 7318532108 | Harness,wiring ,main | 318532108 | $0.00 | ||
| NI | 7318532125 | Harness,wiring ,communication ,relay board | $0.00 | |||
| NI | 75303211311 | #8 SCREW | 5303211311 | $14.50 | ||
| NI | 75303311306 | SCREW | 5300803416 | $6.55 | ||
| NI | 75303323129 | SCREW 8 X 3/4 | 5303323129 | $1.75 | ||
| NI | 75303323277 | SCREW (BLK) | 732012620 | $2.42 | ||
| NI | 75303324184 | SCREW,8-18 X 5/16,BLACK | 5303324184 | $0.00 | ||
| NI | 75304415832 | Screw,8-18 x 0.406 | 732012720 | $0.00 |
*The price can change whitout warning
