Brand: Electrolux

Model: PLFU1777DS1 - FREEZER

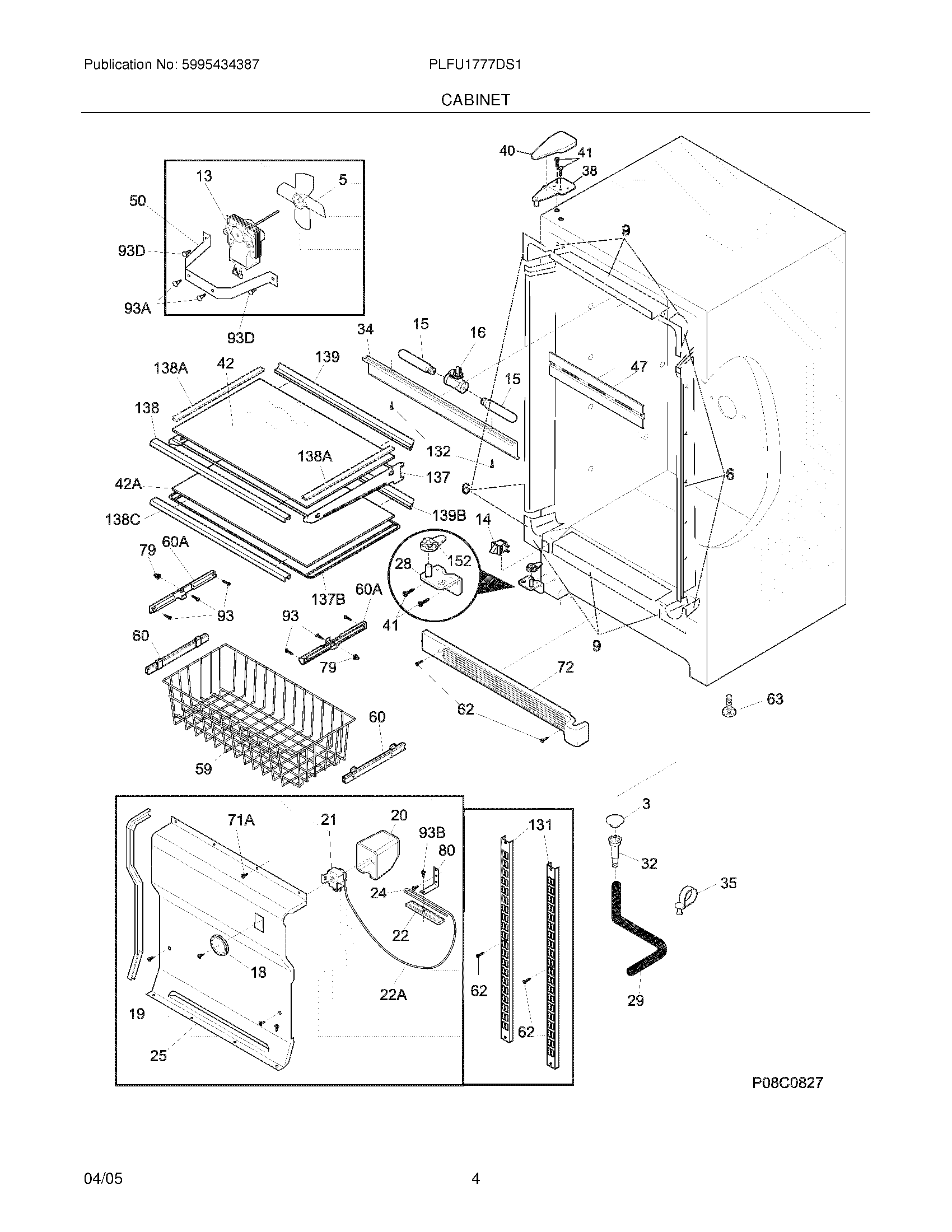

05 - CABINET

PLFU1777DS1
Plan number Part Number Description Replacement Price
3 216503100 SCREEN DRAIN   $62.40
5 216325600 FAN PLASTIC EVAP. 5308000010   $58.80
6 216604200 BREAKER KIT W/CORNERS   $0.00
9 216603300 Breaker Kit w/corners,32`` ,top or bottom   $0.00
13 216934100 Motor,fan ,115 V WG03F04159, 297309000   $0.00
14 216922800 LAMP 216822900   $71.85
15 216988000 LED LIGHT 5304517886   $74.05
16 241507803 RECEPTACLE 241622802   $60.95
NI 297002600 Gasket,light socket   $0.00
18 216707200 KNOB-CONTROL   $44.25
19 216204902 GASKET-EVAP COVER   $0.00
20 216967200 COVER,TEMP CONTROL 216967201   $15.25
21 216715200 CONTROLE-TEMP 5304513033, WG03F02393   $76.95
22 216823500 CLAMP, CAP TUBE, COLD CONTROL   $0.00
22A 5303916855 TUBE,PLASTIC CLEAR,SENSOR SLEE   $62.40
24 5300052943 SCREW, CLAMP, TRUSS HD CR, CONTROL   $0.00
25 216949703 COVER,EVAPORATOR 297099250   $105.95
28 216978201 Hinge,bracket, lower ,LH   $0.00
29 216313501 DRAIN HOSE 5304512272   $15.95
NI 297001701 INSULATION,24",DRAIN TUBE 297001704   $20.35
32 5308005500 DRAIN   $0.00
34 216979500 Shield-light   $0.00
35 216629700 Clip   $0.00
38 216939100 HINGE-UPPER   $0.00
40 216809001 COVER-UPPER HINGE,BLACK   $0.00
41 216936800 Screw-hinge,12-24x.700 HWH ,btm 216936801   $0.00
42 216983101 GLASS SHELF 297265900   $156.75
42A 297007700 Glass-shelf,sliding   $0.00
47 216661600 BAFFLE,AIR 297192903   $25.40
50 216394000 BRACKET,FAN MOTOR MOUNT 216394050   $21.80
59 216939300 Basket,(2)   $0.00
60 216936700 Slide-basket,RH ,(2) 297291220   $0.00
60 216936701 Slide-basket,LH ,(2) 297291221   $0.00
60A 297013500 SLIDE,SHELF   $0.00
62 131420300 SCREW   $13.80
63 216396900 SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE WG03F04389   $0.00
71A 5304416289 #8 SCREW 5303211311   $14.50
72 216946601 KICK PLATE 32" GRAY 297036907   $37.00
79 3017666 INSERT NUT 301036   $15.95
80 06594601 BRACKET, CONTROL   $0.00
93 5303161215 Screw,ph truss head ,8-18AB x 0.500 WG04A02861, 216858001   $0.00
93A 216629600 SCREW,HEX WASHER HEAD,10-16 X 216629601   $13.05
93B 216036600 SCREW,RWHD,8-32A X 0.500,GX-CA 216036601   $13.05
93D 216912400 SCREW,HEX WASHER HEAD,8-32 X 0 216912401   $13.05
131 216971200 Channel-shelf mtg,back ,(2)   $0.00
132 5303283898 SCREW - LIGHT SHIELD   $3.95
137 216983300 FRAME-SHELF,CANTILEVER 297050600   $180.00
137 297007600 Frame-shelf,sliding   $0.00
138 216983400 Trim-shelf,front   $0.00
138 216983600 Trim-shelf,side   $0.00
138 297007800 Trim-shelf,front   $0.00
139 216983500 Trim-shelf,rear   $0.00
139 297007900 Trim-shelf,rear   $0.00
152 216974600 BEARING,HINGE CLOSER   $16.75
NI 216893600 Plug,ICE MAKER ,internal   $0.00
NI 216795408 Energy Guide   $0.00
NI 216893800 Cover,external ,ice maker ,(2)   $0.00
NI 240479601 PLUG BUTTON WHT 240494001, WG03F03412   $17.40
NI 297013100 INSTRUCTIONS,WATER LINE   $3.65
NI 216901700 INSTALLATION INSTRUCTIONS   $3.65
NI 241586701 PLUG-FOAM-WTR-INLET,ROUND   $18.15
*The price can change whitout warning
