Brand: Electrolux
Model: BLTF6100FS1 - WASHER

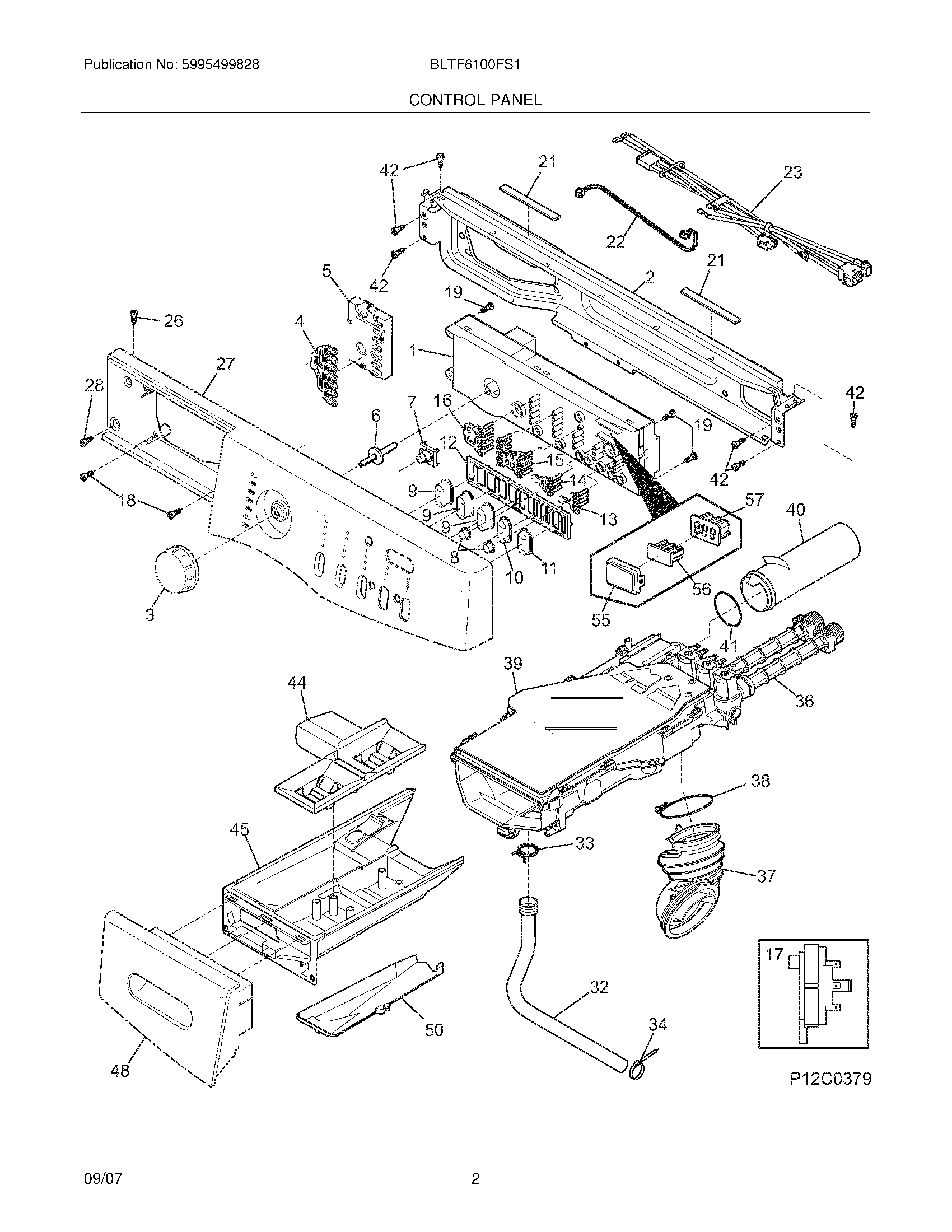

03 - CONTROL PANEL
- 01 - COVER
- 03 - CONTROL PANEL
- 05 - CABINET/TOP
- 07 - MOTOR/TUB
- 08 - WIRING DIAGRAM
- 09 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 134855506 | CONTROL-ELECTRICAL | 137006030 | $299.00 | ||
| 2 | 134364800 | Bracket,top front | WG04A01870, 134364801 | $0.00 | ||
| 3 | 134551210 | Knob,program | $0.00 | |||
| 4 | 134553100 | Light Pipe,program | $0.00 | |||
| 5 | 134556500 | BOARD,PC AUX.INTERFACE USER | 134556500NH | $196.65 | ||
| 6 | 134347700 | Pin,program knob | WG04L02576 | $0.00 | ||
| 7 | 134555610 | PUSH BUTTON,ROUND ,NO.2 | $31.15 | |||
| 8 | 134555510 | Push Button,round ,No.1 | $0.00 | |||
| 9 | 134553410 | Push Button,oval ,No.1 | $0.00 | |||
| 10 | 134555410 | Push Button,oval ,No.2 (soil) | $0.00 | |||
| 11 | 134595610 | PUSHBUTTON,OVAL,START | $31.95 | |||
| 12 | 134553300 | SPRING,PUSH BUTTON | $14.25 | |||
| 13 | 134557500 | Light Pipe,start group | $0.00 | |||
| 14 | 134557400 | Light Pipe,row of 3 | $0.00 | |||
| 15 | 134552800 | LIGHT PIPE, 5 X 4 | $17.55 | |||
| 16 | 134600000 | Light Pipe,row of 5 | $0.00 | |||
| 17 | 134762000 | SWITCH,PRESSURE | $113.95 | |||
| 18 | 131302800 | SCREW - VANE | $13.80 | |||
| 19 | 134402900 | Screw,phillips ,6-19 x 0.650 | WG04A01694 | $0.00 | ||
| 21 | 134407900 | Dampener,vibration | WG04F06362 | $0.00 | ||
| 22 | 134602100 | Wiring Harness,interface board | $0.00 | |||
| 23 | 134436600 | WIRING HARNESS,CONTROLS | $195.95 | |||
| NI | 134743400 | Wiring Harness,main | 137104600 | $0.00 | ||
| 26 | 131205100 | SCREW | $14.50 | |||
| 27 | 134593300 | Panel,control console | $0.00 | |||
| 28 | 131205300 | SCREW | $12.10 | |||
| 32 | 134586500 | Hose,disp-to-bellows | $0.00 | |||
| 33 | 131306216 | CLAMP | 134737300 | $19.60 | ||
| 34 | 5303321209 | WIRE TIE,6" | 5304464772 | $10.90 | ||
| 36 | 134371220 | VALVE,DISPENSER | $156.05 | |||
| NI | 131311900 | SCREW | $13.80 | |||
| 37 | 134372300 | Hose,disp-to-tub | WG04F06321 | $0.00 | ||
| 38 | 134372400 | Clamp,tub hose | WG04F06361 | $0.00 | ||
| 39 | 134446120 | HOUSING,DISPENSER,W/VALVE | 134409320 | $396.95 | ||
| NI | 134371300 | Gasket,disp-to-valve | WG04F05347 | $0.00 | ||
| 40 | 134372100 | Tube,disp-to-overflo | WG04F05866 | $0.00 | ||
| 41 | 134372200 | O-ring,overflow tube | WG04F05537 | $0.00 | ||
| 42 | 131168200 | SCREW | $14.50 | |||
| 44 | 134370200 | Cover,dispenser | WG04L02110 | $0.00 | ||
| 45 | 134370000 | Drawer,dispenser | WG04F05316 | $0.00 | ||
| 48 | 134556700 | Handle/Drawer Assy | $0.00 | |||
| 50 | 134370100 | Conveyor,dispenser ,lower | WG04F06359 | $0.00 | ||
| 55 | 134553200 | Lens,digital display | $0.00 | |||
| 56 | 134557300 | Light Pipe,digital display | $0.00 | |||
| 57 | 134503300 | Display,digital | $0.00 |
*The price can change whitout warning
