Brand: Electrolux

Model: FFHT1821QB4 - REFRIGERATOR, TOP MOUNT

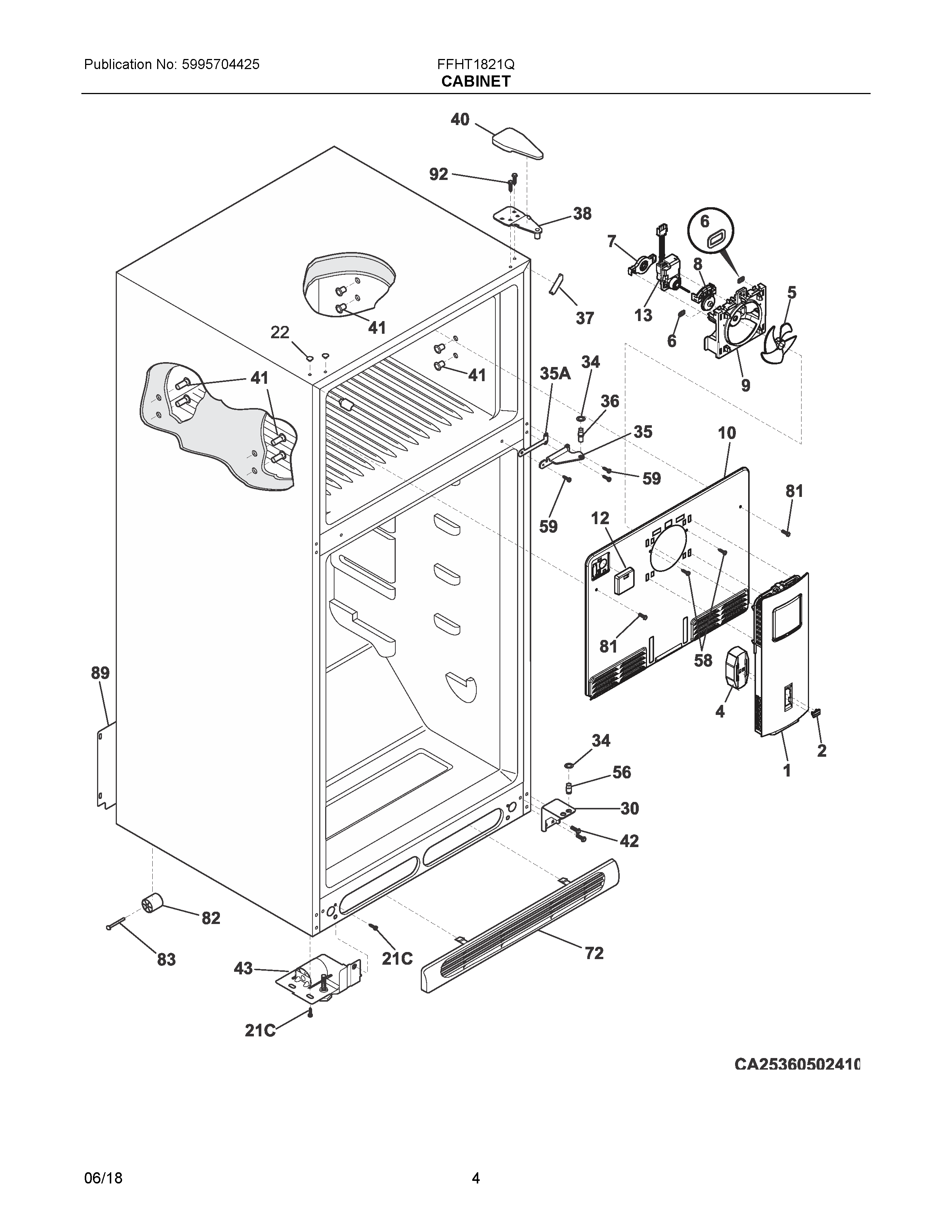

03 - CABINET

FFHT1821QB4
Plan number Part Number Description Replacement Price
1 242230902 COVER,EVAPORATOR FAN   $84.20
2 242229401 CONTROL ASSY,DAMPER 242249002   $217.00
4 242229501 FAN COVER & DAMPER ASMY 18' 242294704   $103.05
5 242219302 FAN BLADE,EVAPORATOR   $16.70
6 5304497413 RING,LOCKING   $5.10
7 242287501 EVAPORATOR GROMMET   $18.15
8 242237301 GROMMET,EVAPORATOR FAN,FRONT   $16.70
9 242229301 SHROUD BRACKET,EVAPORATOR FAN   $31.20
10 242239304 COVER,COIL,WHITE   $66.75
NIA 240568601 SEAL KIT 5304434189   $68.20
12 242249201 COVER,CONNECTION,ICE MAKER   $15.95
NIA 241586701 PLUG-FOAM-WTR-INLET,ROUND   $18.15
13 242219204 MOTOR-BLOWER   $161.85
NIA 218515401 CLIP, GRILLE   $18.15
NIB 241953901 SCREW,CONTROL MTG 5304453707   $15.25
21C 218252201 SCREW   $14.50
22 215774918 PLUG BUTTON,BLACK   $9.45
30 240314003 SUPPORT 240314011   $68.20
34 240311303 BUSHING   $10.15
35 240313803 BRACKET-CTR HINGE,BLACK   $164.75
35A 240336803 SPACER-HINGE,CENTRE,BLACK   $11.60
36 240516402 PIN-CENTER HINGE,W/WASHER 241708002   $21.80
37 242161202 TRIM, BODY'S CORNER   $8.00
38 240313703 BRACKET-UPPER HINGE   $30.50
40 240354404 COVER-UPPER HINGE, BLACK   $63.15
41 5304500407 GROMMET,SHELF MTG   $6.55
42 240578902 SCREW-HINGE   $14.50
43 241889002 ROLLER ASSY.FRONT,LH   $64.60
NIA 241889001 ROLLER ASSY,FRONT,RIGHT   $61.70
56 240516502 PIN LOWER HINGE   $69.65
58 240433204 SCREW   $1.45
59 240442707 SCREW #10-32 X 3/4 BLACK   $2.90
72 241839407 GRILL/KICKPLATE - NOIR   $60.25
81 5304455650 SCREW   $14.50
82 240335202 ROLLER,COMPRESSOR BASE,REAR   $21.80
83 5304455655 RIVET   $7.25
89 241733911 COVER ACCESS   $54.45
NIA 241500304 SCREW,HEX WASHER HEAD,8-18AB X   $1.45
92 241710601 SCREW   $13.80
NI 218990901 CLIP-WIRE   $76.20
NI 240494001 PLUG-BUTTON, WHITE, CAB LINER HOLES WG03F03412   $0.00
*The price can change whitout warning
