Brand: Electrolux
Model: EIFLS60JIW1 - WASHER, FRONT LOAD

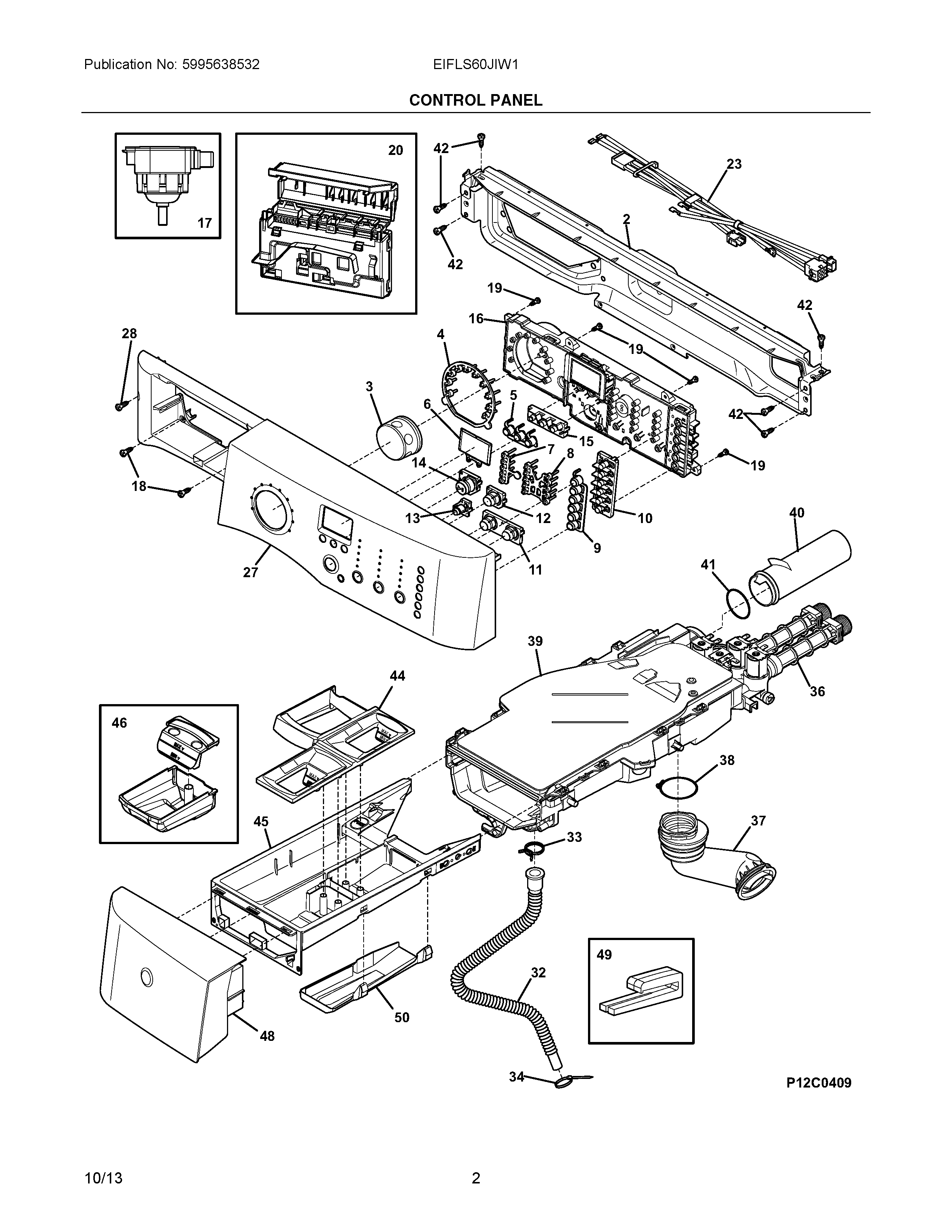

02 - CONTROL PANEL
- 01 - COVER SHEET
- 02 - CONTROL PANEL
- 03 - CABINET/TOP
- 04 - MOTOR/TUB
- 05 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 2 | 134887400 | BRACKET,CONTROL PANEL,MOUNTING | $85.30 | |||
| 3 | 134766500 | KNOB, RETRACTING, COMPLETE ASMY | $0.00 | |||
| 4 | 134907400 | PIPE, KNOB LIGHT | $15.40 | |||
| 5 | 134872100 | RING, DISPLAY BUTTON, LIGHT | $4.15 | |||
| 6 | 134767700 | LENS, LCD | $15.25 | |||
| 7 | 134895900 | PIPE, MODIFIER LIGHT, GROUP 1 | $0.00 | |||
| 8 | 134902200 | PIPE, MODIFIER LIGHT, GROUP 2&3 | $0.00 | |||
| 9 | 134894200 | RING, OPTION BUTTON, LIGHT | $0.00 | |||
| 10 | 137032300 | BUTTON, OPTION | $0.00 | |||
| 11 | 137032200 | BUTTON, MODIFIER, BUTTON 2 & 3 | $0.00 | |||
| 12 | 137032100 | BUTTON, MODIFIER, BUTTON 1 | $0.00 | |||
| 13 | 137032000 | BUTTON, OFF | $42.30 | |||
| 14 | 137015900 | BUTTON,START/PAUSE | $33.20 | |||
| 15 | 137031900 | BUTTON, DISPLAY | $59.50 | |||
| 16 | 134994920 | UI BOARD ASSEMBLY | 809020007 | $341.10 | ||
| 17 | 134762010 | SWITHC | $108.85 | |||
| 18 | 131302800 | SCREW - VANE | $13.80 | |||
| 19 | 134402900 | SCREW, PHILLIPS, 6-19 X 0.650 | WG04A01694 | $0.00 | ||
| 20 | 137317221 | CONTROL ASM,MAIN BOARD | 809019910 | $320.75 | ||
| 23 | 137288900 | HARNESS,WIRING,MAIN | $286.65 | |||
| 27 | 137377510 | PANEL, CONTROL CONSOLE, WHITE, DECORATED | $0.00 | |||
| 28 | 131302901 | SCREW, 10 X 16 X .75 | $5.10 | |||
| 32 | 134625510 | HOSE, DISP-TO-BELLOWS | $0.00 | |||
| 33 | 131306216 | CLAMP | 134737300 | $19.60 | ||
| 34 | 5303321209 | WIRE TIE,6" | 5304464772 | $10.90 | ||
| 36 | 134637810 | VALVE, WATER | $150.25 | |||
| NIA | 134178901 | SCREW, 8-18AB X 0.455 | WG04A01528 | $0.00 | ||
| 37 | 134625700 | HOSE | $74.05 | |||
| 38 | 134372400 | CLAMP, TUB HOSE | WG04F06361 | $0.00 | ||
| 39 | 134964020 | HOUSING,DISPENSER VALVE | $269.00 | |||
| NIA | 134371300 | GASKET, DISP-TO-VALVE | WG04F05347 | $0.00 | ||
| 40 | 134372100 | TUBE, DISP-TO-OVERFLO | WG04F05866 | $0.00 | ||
| 41 | 134372200 | O-RING, OVERFLOW TUBE | WG04F05537 | $0.00 | ||
| 42 | 131168200 | SCREW | $14.50 | |||
| 44 | 134638310 | DRAWER COVER | $28.25 | |||
| 45 | 134638200 | DISTRIBUTOR, DRAWER | $71.10 | |||
| 46 | 137143800 | CUP | $27.60 | |||
| 48 | 137316510 | DISPENSER DRAWER,WHITE | 137440406 | $226.40 | ||
| 49 | 137105200 | DRAWER GUIDE | $16.25 | |||
| 50 | 134638400 | CONVEYOR,DISPENSER,LOWER | $0.00 |
*The price can change whitout warning
