Brand: Electrolux
Model: EW30ES6CGS4 - RANGE

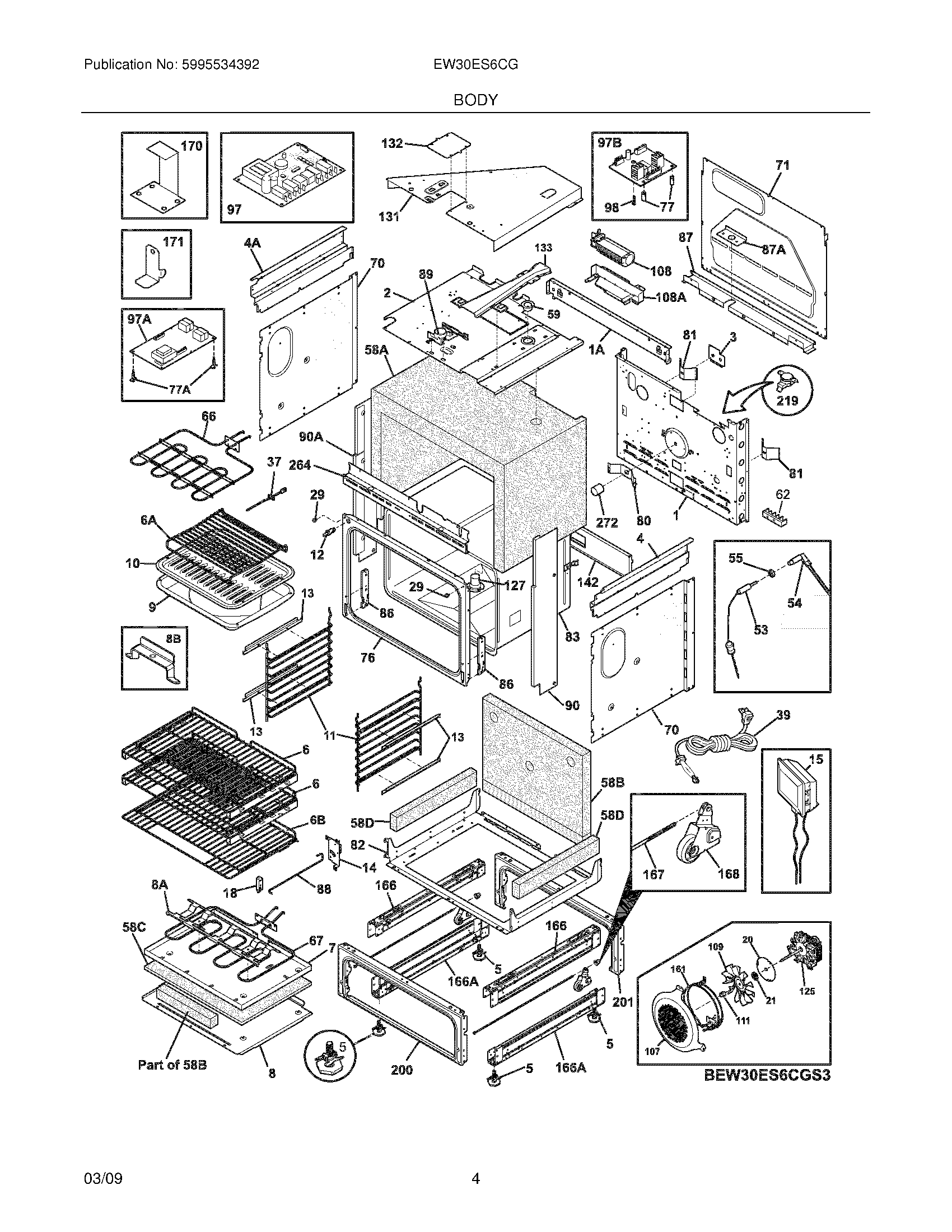

05 - BODY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 7318259220 | Back,main | 318259220 | $0.00 | ||
| 1A | 7318905600 | Back,main ,upper | 318905600 | $0.00 | ||
| 2 | 7318258922 | Shield,insulation ,upper | 318258922 | $0.00 | ||
| 3 | 7318402800 | Plate,cover | 318402800 | $0.00 | ||
| 4 | 7318905700 | Panel,side ,RH upper | 318905700 | $0.00 | ||
| 4A | 7318905701 | PANEL,SIDE,LH,UPPER | 318905701 | $76.95 | ||
| 5 | 7318175508 | LEVELING SCREW,W/TEE NUT | 318175510 | $23.25 | ||
| 6 | 7318903105 | OVEN SHELF<30">NICKEL AY | 318903105 | $393.50 | ||
| 6A | 7318365800 | RACK,BROILER PAN | 318365800, WG02F06960 | $53.70 | ||
| 6B | 7318908003 | RACK | 318908006 | $222.90 | ||
| 7 | 7318297303 | BOX,BAKE ELEMENT | 318297303 | $114.65 | ||
| 8 | 7318359500 | SERVICE PANEL | 318359500 | $132.10 | ||
| 8A | 7318313601 | BRACKET,BAKE ELEMENT | 318313601 | $69.65 | ||
| 8B | 7318403200 | Bracket,service panel ,(2) | 318403202 | $0.00 | ||
| NI | 7318403100 | BRACKET,BRIDGE,(2) | 318403105 | $50.80 | ||
| 9 | 7318138801 | PAN,BROILER | 318138801 | $55.54 | ||
| 10 | 7318126401 | INSERT,BROILER PAN,COBALT BLUE | 316082001 | $50.80 | ||
| 11 | 7318903300 | OVEN RACK | 318903300 | $108.30 | ||
| 12 | 7316445501 | Switch,oven light ,door frame | 316445501, 808136601 | Call to order | ||
| 13 | 7318603913 | Bracket,ladder mtg. ,(4) | 318603913 | $0.00 | ||
| NI | 75304456367 | Rivet,ladder bracket ,(8) | 5304456367 | $0.00 | ||
| 14 | 7318562200 | SENSOR BRACKET | 318562200 | $264.15 | ||
| NI | 7318341201 | Jumper,electronic ,rack sensor | 318341201 | $0.00 | ||
| 15 | 7318241006 | LAMP ASSY,HALOGEN | 139001800 | $118.30 | ||
| 18 | 7318562300 | BRACKET,ROD | 318562300 | $17.25 | ||
| 20 | 7318389400 | PLATE,RETAINER | 318389400 | $16.60 | ||
| 21 | 7318389000 | SEAL RING | 318389000 | $21.80 | ||
| 29 | 7316517600 | SPACER,OVEN DOOR | 316517600 | $12.35 | ||
| 37 | 7316217002 | OVEN TEMPERATURE SENSOR | 316217002, WG02L02256 | $63.15 | ||
| NI | 7318373001 | Bracket,receptacle ,temp probe | 318373001 | $0.00 | ||
| NI | 75304435874 | Plate,covering ,probe | 5304435874 | $0.00 | ||
| 39 | 7318113111 | Cord,electric | 5304520547 | $0.00 | ||
| 53 | 7318601302 | PROBE, MEAT | 5304504202 | $115.40 | ||
| 54 | 7318601206 | RECEPTACLE,PROBE | 318601206 | $175.60 | ||
| 55 | 7316247700 | NUT,HEX | 316247700 | $17.40 | ||
| NI | 7316247800 | LOCK WASHER | 316247800 | $17.40 | ||
| 58A | 7318386100 | Insulation,oven wrapper | 318594300 | $0.00 | ||
| 58B | 7318285079 | Insulation,oven back | 318594311 | $0.00 | ||
| 58C | 7318294912 | INSULATION,BAKE ELEMENT | 318294912 | $88.55 | ||
| 58D | 7318372001 | INSULATION,20.5 X 2.375,1" THI | 318372018 | $14.50 | ||
| 59 | 7318072577 | DUCT,OVEN VENT | 318072577 | $16.70 | ||
| 62 | 75303935061 | TERMINAL BLOCK | 5304409888, WG02A00893 | $11.60 | ||
| NI | 75303323139 | SCREW, 10-24 X 29/32 | 5303323139 | $13.80 | ||
| 66 | 7318255806 | ELEMENT BROIL,4000W | 318255806 | $288.85 | ||
| 67 | 7318254911 | BAKE ELEMENT, 2500W | 318254916 | $207.55 | ||
| 70 | 7318259102 | Shield,insulation ,sides ,(2) | 318259114 | $0.00 | ||
| 71 | 7318260007 | Panel,rear box | 318260007 | $0.00 | ||
| 76 | 7318056236 | Front,oven | $0.00 | |||
| 77 | 7316247900 | SPACER,POWER BOARD | 316247900 | $45.70 | ||
| 77A | 7316114100 | SPACER | 316114100 | $62.40 | ||
| 80 | 75303320846 | Plate,oven mtg | 5303320846 | $0.00 | ||
| 81 | 7318192400 | Spring,oven | 318192400 | $0.00 | ||
| 82 | 7318258715 | Shield,insulation ,lower | 318258770 | $0.00 | ||
| 83 | 7318261427 | Liner,oven assy | $0.00 | |||
| 86 | 7316508600 | RECEPTACLE-HINGE DOOR ELUX,HIN | 316580700 | $31.20 | ||
| NI | 75304461333 | SCREW 10-32 X 17/32 | 5304461333 | $13.80 | ||
| 87 | 7318260617 | Bracket,cable mtg. | $0.00 | |||
| 87A | 7318111806 | PLATE,CORD SET MTG | 318111806 | $12.35 | ||
| 88 | 7318376505 | Rod,latch | 318376505 | $0.00 | ||
| 89 | 7318261215 | MOTOR ASM,DOOR LATCH | 318261229 | $85.60 | ||
| NI | 7318165800 | SPACER | 318165800 | $18.15 | ||
| 90 | 7318905806 | PANEL,SIDE,STAINLESS,RH | 318905812 | $208.30 | ||
| 90A | 7318905807 | PANEL,SIDE,STAINLESS,LH | 318905813 | $201.00 | ||
| 97 | 7316442115 | BOARD,POWER,RELAY | 316442120 | $367.95 | ||
| NI | 7318402346 | Harness,wiring ,relay board | $0.00 | |||
| 97A | 7316443916 | RELAY BOARD | 316443916 | $459.35 | ||
| 97B | 7316519200 | RELAY PLATE, CONVECTION | 316519200 | $273.60 | ||
| 98 | 75303297477 | SCREW | 5303297477 | $14.50 | ||
| 107 | 7318906601 | COVER FAN | 318906601 | $198.10 | ||
| 108 | 7318073028 | MOTOR | 318073028 | $271.40 | ||
| 108 | 7318251300 | Bracket,fan support | 318251300 | $0.00 | ||
| 109 | 7318398300 | FAN WHEEL | 318398302 | $24.70 | ||
| 111 | 7318399800 | ECROU | 316136600, WG02A01650 | $19.60 | ||
| 125 | 75304463302 | MOTOR | 5304463302 | $226.40 | ||
| 125 | 7318142100 | Washer,motor ,convection | 318142100 | $0.00 | ||
| 127 | 7318357001 | Adapter Assembly,w/vent tube ,and catalyst | 318357001 | $0.00 | ||
| 131 | 7318272901 | Box,vent | 318272901 | $0.00 | ||
| 132 | 7318003000 | PLATE,SHIELD | 318003000 | $9.00 | ||
| 133 | 7318347800 | CHIMNEY,TOP PANEL | 318347800 | $23.95 | ||
| 142 | 7318123910 | Deflector | $0.00 | |||
| 161 | 7318255506 | ELEMENT CONVECTION 240V 2500W | 318255511 | $122.65 | ||
| 166 | 7318298400 | Bracket,base support ,(2) | 318298400, WG02A00970 | $0.00 | ||
| 166 | 7318298403 | SUPPORT & NUT KIT | 903088-9010 | $59.50 | ||
| 167 | 7318147811 | SCREW,LOCK ADJUSTING | 318147811 | $31.95 | ||
| 168 | 7318302400 | WHEEL & BRACKET ASSY,ADJUST. | 318302400 | $76.95 | ||
| 170 | 7318335700 | ANTI-TIP & ACCESSORIES | 318335700 | $58.25 | ||
| 171 | 7318335200 | BRACKET,ANTI-TILT | 318335200 | $32.65 | ||
| 200 | 7318298221 | Frame,drawer ,front | 318298226 | $0.00 | ||
| 201 | 7318298210 | Frame,drawer | $0.00 | |||
| 219 | 7318004902 | THERMAL SWITCH | 318004902 | $78.40 | ||
| 264 | 7318906301 | Trim,vent | $0.00 | |||
| 272 | 7318249403 | Tube,protector | 318249412 | $0.00 | ||
| NI | 7318384430 | Wiring Harness,main | 318384430 | $0.00 | ||
| NI | 73051050 | Screw,shoulder | 3051050 | $0.00 | ||
| NI | 75303211311 | #8 SCREW | 5303211311 | $14.50 | ||
| NI | 75303300265 | Screw,8-18 X 1/2 ,(4) | $0.00 | |||
| NI | 75303311306 | SCREW | 5300803416 | $6.55 | ||
| NI | 75303323129 | SCREW 8 X 3/4 | 5303323129 | $1.75 | ||
| NI | 75303323277 | SCREW (BLK) | 732012620 | $2.42 | ||
| NI | 75303324184 | SCREW,8-18 X 5/16,BLACK | 5303324184 | $0.00 | ||
| NI | 75303325980 | SCREW 10-32 X 0.437 | 5303325980 | $13.05 | ||
| NI | 75304415832 | Screw,8-18 x 0.406 | 732012720 | $0.00 | ||
| NI | 75304440988 | Screw,10-16 x 3/4 | 5304440988 | $0.00 |
*The price can change whitout warning
