Brand: Electrolux
Model: FWS545NBT1 - WASHER

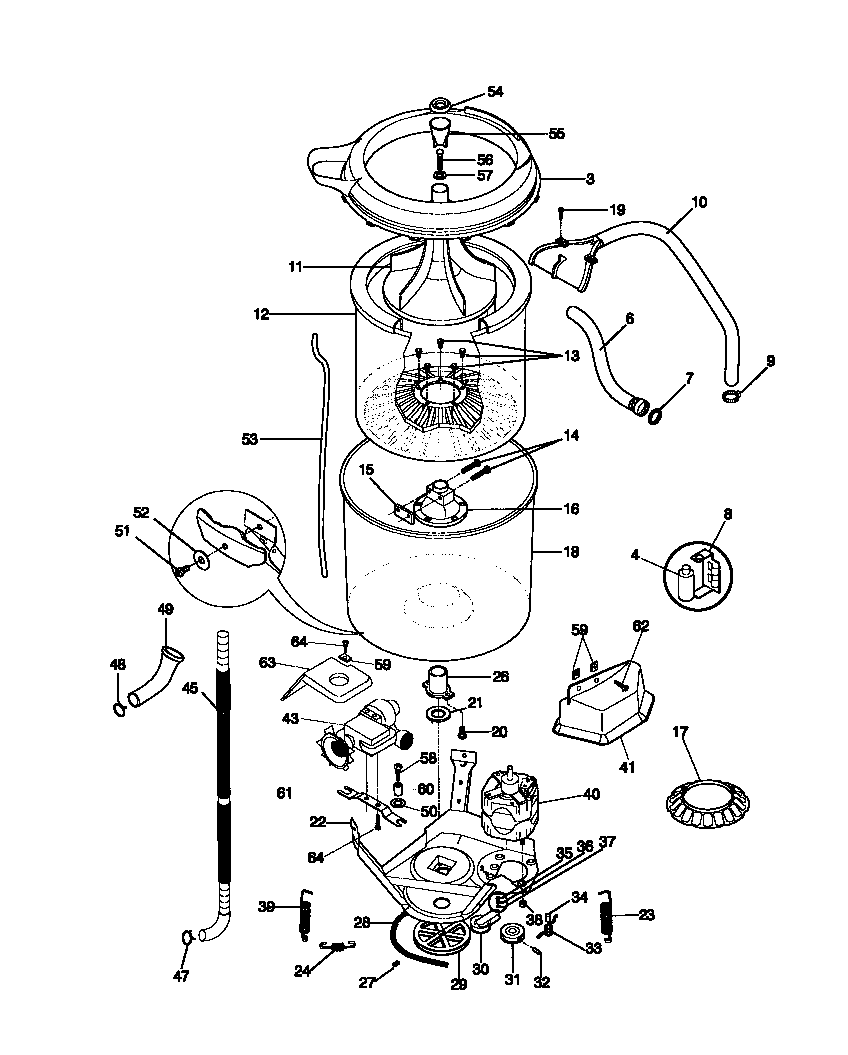

03 - MOTOR/TUB
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| *87241 | 5303212877 | INSERT-SPRING ADJ | $0.00 | |||
| 3 | 131221500 | COVER, SPLASH TUB | 131551103, WG04L02095 | $0.00 | ||
| 4 | 131212302 | CAPACITOR | $0.00 | |||
| 6 | 5303271009 | HOSE-INLET | 5303912532, HK5, WG04A01118 | Call to order | ||
| 7 | 5303161296 | WASHER | $13.80 | |||
| 8 | 5303161252 | BRACKET-CAPACITOR | $0.00 | |||
| 9 | 5303304824 | CLAMP | 5304488479 | $20.35 | ||
| 10 | 3204400 | HOSE & NOZZLE | 134211701, WG04A01864 | $0.00 | ||
| 11 | 131427200 | AGITATOR | WG04L02857 | $0.00 | ||
| 12 | 131221300 | TUB-SPIN | $0.00 | |||
| 13 | 5303283293 | SCREW,5/16-18 X 0.625 | 137546400 | $29.05 | ||
| 14 | 131192800 | SCREW | 137539500 | $20.35 | ||
| 15 | 5308001923 | LOCKPLATE | 137107000 | $27.60 | ||
| 16 | 131154501 | TRUNION | 131545101 | $149.50 | ||
| 17 | 131219900 | FILTER, LINT | WG04F06342 | $0.00 | ||
| 18 | 131444900 | TUB-SPLASH | $0.00 | |||
| 19 | 131205300 | SCREW | $12.10 | |||
| 20 | 3205150 | SCREW | $3.65 | |||
| 21 | 5308002401 | WASHER | $16.05 | |||
| 22 | 131373610 | LEG & DOME ASSY | $0.00 | |||
| 23 | 5303208858 | SPRING-VERTICAL (SHORT) | WW03A00032, 134886600 | $0.00 | ||
| 24 | 131373900 | SPRING-HORIZONTAL | $0.00 | |||
| 26 | 3204405 | BEARING | $100.15 | |||
| 27 | 5303304825 | SCREW | 5303270023 | $30.50 | ||
| 28 | 131234000 | BELT N/S | 134511600 | $26.85 | ||
| 29 | 131361800 | PULLEY,TRANSMISSION DRIVE | 131498301 | $70.45 | ||
| 30 | 3204422 | IDLER PULLEY WITH BRACKET | 131862900, WG04F04682 | $26.90 | ||
| 31 | 3204423 | PULLEY-MOTOR | WG02F09224 | $0.00 | ||
| 32 | 3204424 | PIN-ROLL | $0.00 | |||
| 33 | 3204425 | SPRING TORSION | $0.00 | |||
| 34 | 3204426 | SLEEVE-IDLER | $0.00 | |||
| 35 | 3161433 | RETAINING RING | $18.85 | |||
| 36 | 5303261031 | WASHER-PIVOT SHAFT | $0.00 | |||
| 37 | 5303161306 | WASHER | $15.95 | |||
| 38 | 5303283079 | LOCK NUT | $3.30 | |||
| 39 | 5303208860 | SRING - VERTICAL | 134885900, WW03A00037 | $21.80 | ||
| 40 | 131460500 | MOTOR-MAIN | 134183200, WW02F00142 | $0.00 | ||
| 41 | 131474500 | SHIELD-MOTOR, 41 | $0.00 | |||
| 41A | 131486302 | SHIELD-MOTOR, STATOR (NOT ILLUSTRATED) | $0.00 | |||
| 43 | 131268401 | DRAIN PUMP ASSEMBLY | $255.45 | |||
| 45 | 131268800 | 90" DRAIN HOSE | 131461200, WG04F00501 | $61.70 | ||
| 45A | 131462500 | CLIP-DRAIN HOSE (NOT ILLUSTRATED) | $0.00 | |||
| 47 | 3204456 | CLAMP-HOSE | $0.00 | |||
| 47A | 5303294768 | CLAMP,PUMP | 131306234 | $45.70 | ||
| 48 | 131306234 | CLAMP,PUMP | $45.70 | |||
| 49 | 131434500 | HOSE-PUMP TO TUB | WG04F07541 | $0.00 | ||
| 50 | 131268600 | GROMMET-PUMP | $0.00 | |||
| 51 | 3204459 | SCREW-LEG TO TUB, HWH 23, .31-18 X .875 | $0.00 | |||
| 52 | 131315800 | WASHER | 3005891 | $4.95 | ||
| 53 | 5300771996 | TUBE - PRESSURE | $85.00 | |||
| 54 | 131266800 | CAP-DISPENSER | $0.00 | |||
| 55 | 131206100 | CUP-DISPENSER | $0.00 | |||
| 56 | 131468900 | Screw-agitator,hwh shldr `5/16-18x1.250 | WG04A01377 | $0.00 | ||
| 57 | 131339600 | SPACER-AGITATOR | WG04A02835 | $0.00 | ||
| 58 | 131464900 | SCREW-PUMP-TO BRACKET | $0.00 | |||
| 60 | 131268700 | SPACER-PUMP | $0.00 | |||
| 61 | 131268500 | BRACKET-PUMP | $0.00 | |||
| 63 | 131351500 | SHIELD-PUMP | $0.00 | |||
| 64 | 5303283072 | SCREW | $9.35 |
*The price can change whitout warning
