Brand: Electrolux
Model: FWT445GES1 - WASHER

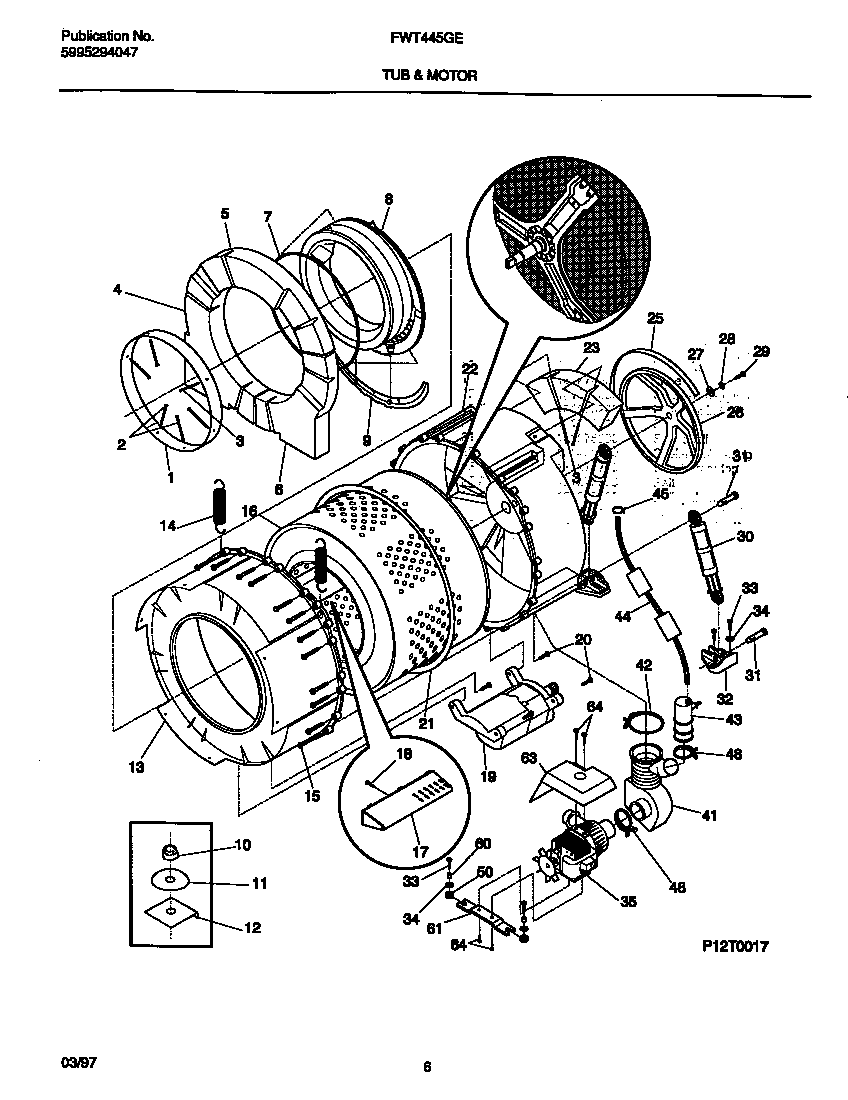

04 - TUB & MOTOR
- 01 - COVER
- 02 - CONTROL PANEL
- 03 - CABINET, DOOR & TOP
- 04 - TUB & MOTOR
- 05 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| *14444 | 131560000 | SLEEVE-LOWER SPRING,TUB | $13.45 | |||
| *14445 | 131592200 | SLEEVE-UPPER SPRING | $36.15 | |||
| 1 | 131277000 | RING-WEIGHT | $0.00 | |||
| 2 | 131303401 | BOLT, 1/4-20 X 4.50 | 131793301 | $0.00 | ||
| 3 | 131303402 | BOLT,1/4-20X4.05 | 131793302, WG04F06346 | $0.00 | ||
| 4 | 131276500 | WEIGHT-LWR LEFT | 131995000 | $0.00 | ||
| 5 | 131276600 | WEIGHT-TOP FRONT | 131995000 | $0.00 | ||
| 6 | 131276400 | WEIGHT-LWR RIGHT | $0.00 | |||
| 7 | 131277300 | SPRING | $51.20 | |||
| 8 | 131277100 | BOOT-DOOR | 5303937187 | $152.40 | ||
| 9 | 131277200 | REINFORCEMENT | $0.00 | |||
| 10 | 131304700 | NUT,HEX,1/4-20 UNC-2B | 137086500 | $18.15 | ||
| 11 | 131276900 | WASHER-SPRING | $21.80 | |||
| 12 | 131276800 | PLATE-WEIGHT | 131793500 | $0.00 | ||
| 13 | 131618600 | SHELL-FRONT TUB | $0.00 | |||
| 14 | 131277700 | RESSORT | 134144700, WG04A01298 | $61.70 | ||
| 15 | 131303900 | SCREW | $0.00 | |||
| 16 | 131618500 | TUB-SPIN | $726.40 | |||
| 17 | 131274600 | VANE DRUM | $68.20 | |||
| 18 | 131302800 | SCREW - VANE | $13.80 | |||
| 19 | 131276200 | MOTOR-MAIN, 850 | WG04F07540 | $0.00 | ||
| 20 | 131303500 | SCREW-MOTOR | $12.35 | |||
| 21 | 131275900 | O-RING, TUB | 134146100 | $71.85 | ||
| 22 | 131462800 | SHELL-REAR/BEARING | 131525500, WG04F04502 | Call to order | ||
| 23 | 131276700 | WEIGHT-REAR TOP | 134125900 | $0.00 | ||
| 25 | 131276300 | BELT | 134051000 | $39.90 | ||
| 26 | 131632500 | PULLEY-DRUM | 131883400 | $0.00 | ||
| 27 | 131304400 | Washer .41x1.500x.120 | $0.00 | |||
| 28 | 131304500 | WASHER-LOCK,3/8 | $0.00 | |||
| 29 | 131303700 | SCREW - PULLEY | $15.95 | |||
| 30 | 131268200 | SHOCK ABSORBER KIT | 5304485917 | $79.85 | ||
| 31 | 131268300 | PIN-LEVEL | $13.05 | |||
| 32 | 131268100 | BRACKET-SHOCK | $55.20 | |||
| 33 | 131303100 | SCREW-BRACKET, HWHD AB, 10-16 X .625 | $0.00 | |||
| 34 | 131304300 | WASHER - PADDED | 5303304015 | $7.05 | ||
| 35 | 131268400 | DRAIN PUMP ASSEMBLY | 131268401 | $255.45 | ||
| 41 | 131277400 | HOSE-COIN TRAP-TUB TO PUMP | 131784700 | $111.05 | ||
| 42 | 131333101 | CLAMP | WG04A01860, 134737300 | $0.00 | ||
| 43 | 131277500 | CHAMBER-AIR | $52.60 | |||
| 44 | 131277600 | TUBE-PRESSURE | $0.00 | |||
| 45 | 131306202 | CLAMP | $11.90 | |||
| 48 | 131306234 | CLAMP,PUMP | $45.70 | |||
| 50 | 131268600 | GROMMET-PUMP | $0.00 | |||
| 60 | 131268700 | SPACER-PUMP | $0.00 | |||
| 61 | 131268500 | BRACKET-PUMP | $0.00 | |||
| 63 | 131351500 | SHIELD-PUMP | $0.00 | |||
| 64 | 5303283072 | SCREW | $9.35 |
*The price can change whitout warning
