Brand: Electrolux

Model: FGUS2642LF1 - REFRIGERATOR

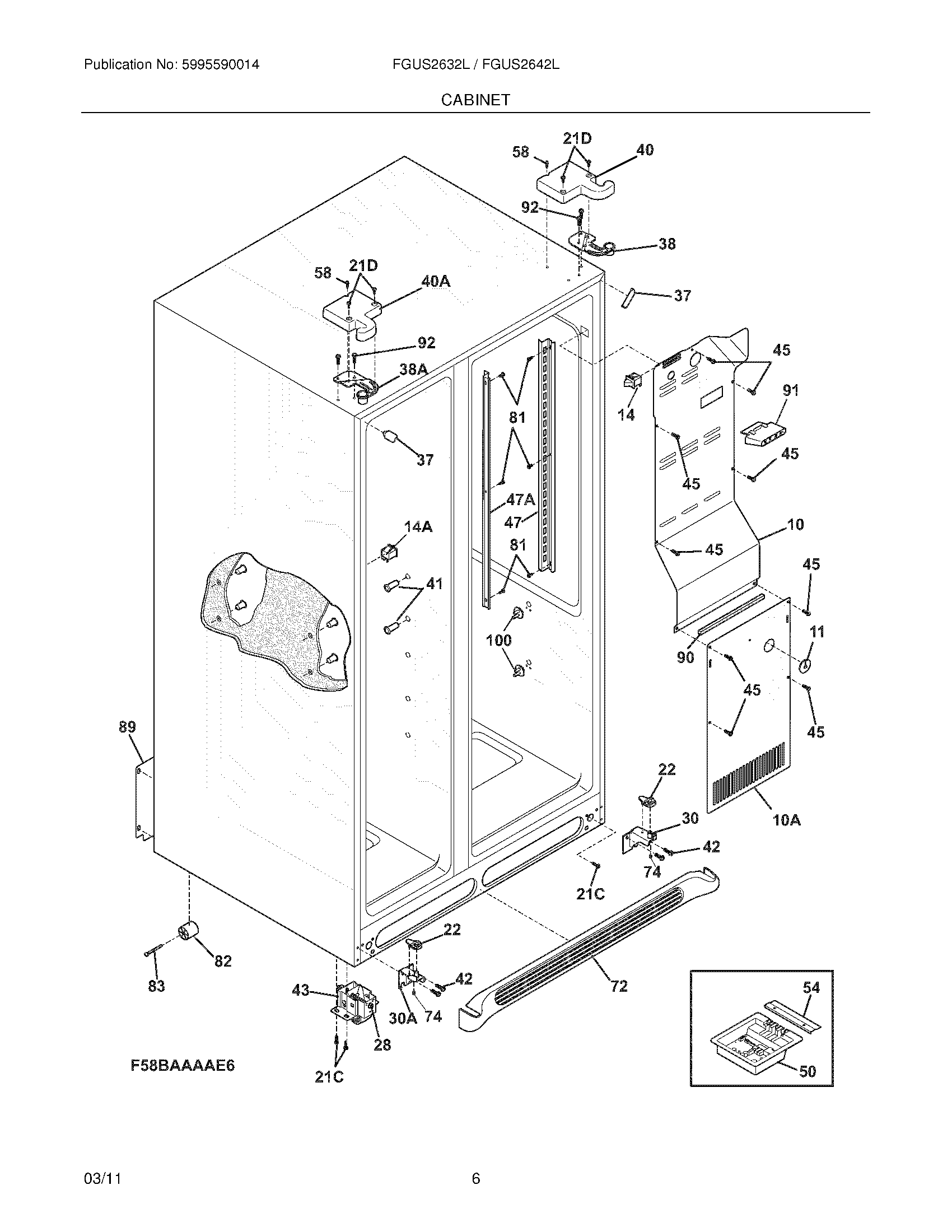

07 - CABINET

FGUS2642LF1
Plan number Part Number Description Replacement Price
10 240435912 COVER,AIR DUCT   $132.80
10A 241719711 COVER-EVAP COIL,LOWER   $111.75
11 5303208309 PLUG-HOLE   $43.55
14 240505801 Switch-light/lamp WG03F03557   $0.00
14A 242060201 SWITCH,LIGHT,FREEZER DOOR   $42.10
21C 218252201 SCREW   $14.50
21D 218781101 SCREW,INCLUDES BOLTS   $15.95
22 241917801 PLATE,DOOR CLOSER   $7.25
28 240335502 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special 240335006, 5304499445, WG03L04381   $0.00
30 241917901 LOWER HINGE,RH,W/SCREW 241918001   $67.50
30A 241917902 LOWER HINGE,LH,W/SCREW 241918002   $58.80
37 240337615 CORNER TRIM KIT,GRAY 5304494164   $4.35
38 241761301 BRACKET,UPPER HINGE,RIGHT   $67.50
38A 241761302 BRACKET,UPPER HINGE,LEFT   $66.05
40 241946717 COVER-UPPER HINGE,GRAY,RH 241946719   $68.95
40A 241946718 COVER-UPPER HINGE,GRAY 241946720   $68.95
41 241550801 GROMMET-SHELF MTG,1.40" LONG   $60.95
NI 241550701 GROMMET-SHELF MTG,0.96"   $17.40
42 240578902 SCREW-HINGE   $14.50
43 240335006 Roller Assy,front ,(2) WG03L04381, 5304499445   $0.00
45 241500303 SCREW,HEX WASHER HEAD,8-18AB X   $4.35
47 242001902 Channel-shelf mtg,side ,LH   $0.00
47A 242001901 Channel-shelf mtg,side ,RH   $0.00
50 242009029 BOARD-SWITCH,TERMINAL 5303918538   $436.15
54 241532401 CHANNEL   $31.20
58 241548003 SCREW,10-32 X 3/8   $2.90
72 241969405 GRILLE/KICKPLATE   $79.85
74 218755402 SCREW-SET   $6.55
81 5304455650 SCREW   $14.50
82 5304418225 ROLLER,COMPRESSOR BASE,REAR   $49.35
83 5304455655 RIVET   $7.25
89 241733902 COVER   $81.30
90 218249808 SEAL-COIL COVER   $8.70
91 240380101 DUCT ICE MAKER   $71.85
92 241710601 SCREW   $13.80
100 241993101 SUPPORT, SHELF TRAY   $8.70
100 241993001 SUPPORT,CRISPER COVER,REAR(4)   $8.00
*The price can change whitout warning
