Brand: Electrolux
Model: EW30EW6CGW3 - WALL OVEN

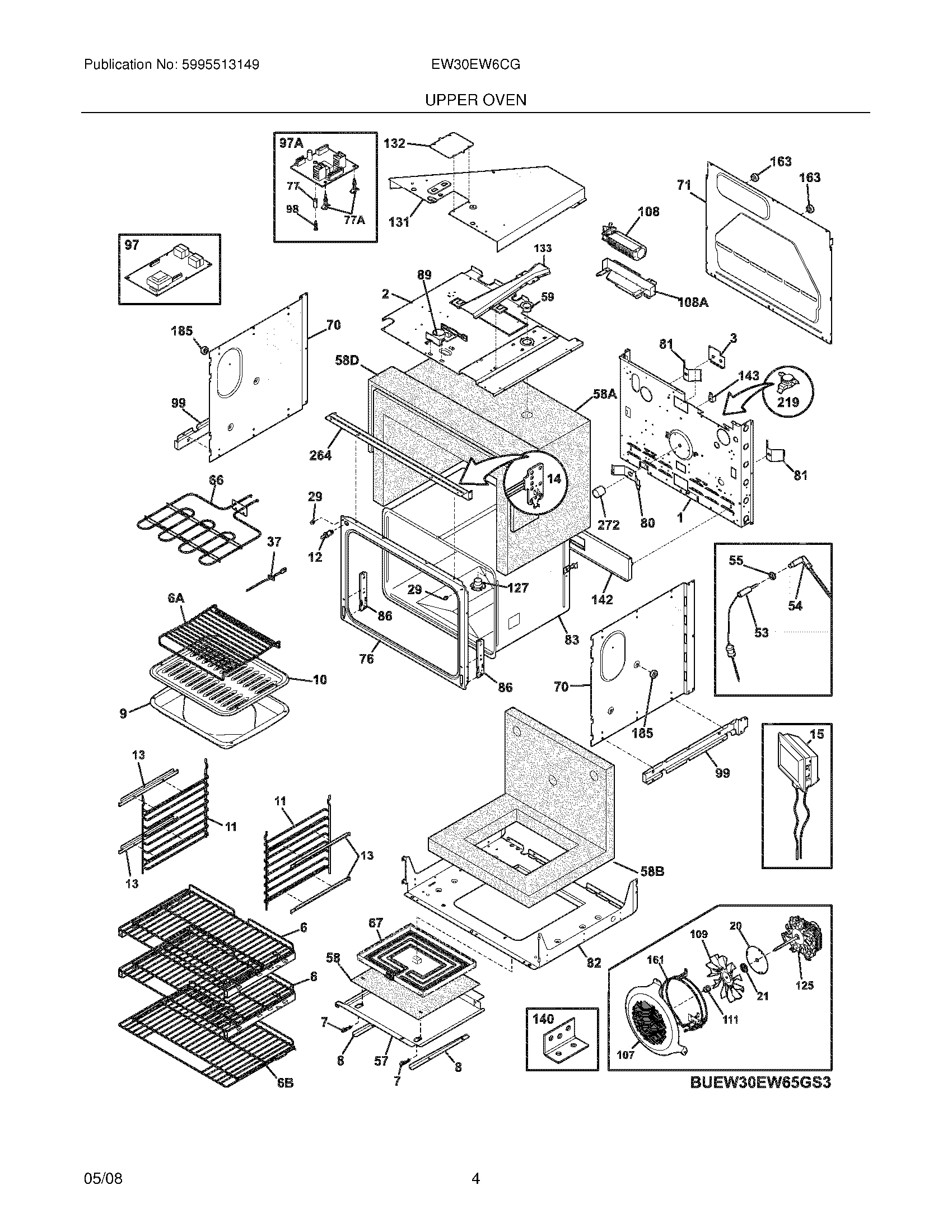

05 - UPPER OVEN
- 01 - COVER
- 03 - CONTROL PANEL
- 05 - UPPER OVEN
- 07 - LOWER OVEN
- 09 - DOORS
- 10 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 7318259220 | Back,main | 318259220 | $0.00 | ||
| 2 | 7318258922 | Shield,insulation ,upper | 318258922 | $0.00 | ||
| 3 | 7318402800 | Plate,cover | 318402800 | $0.00 | ||
| 6 | 7318903101 | OVEN SHELF<30">NICKEL AY | 318903105 | $393.50 | ||
| 6A | 7318365800 | RACK,BROILER PAN | 318365800, WG02F06960 | $53.70 | ||
| 6B | 7318908001 | RACK | 318908006 | $222.90 | ||
| 7 | 7318368300 | PIN,LOCKING,(2) | 318368300 | $10.15 | ||
| 8 | 7318361801 | Bracket,element ,(2) | 318361801 | $0.00 | ||
| 9 | 7318138801 | PAN,BROILER | 318138801 | $55.54 | ||
| 10 | 7318126401 | INSERT,BROILER PAN,COBALT BLUE | 316082001 | $50.80 | ||
| 11 | 7318903300 | OVEN RACK | 318903300 | $108.30 | ||
| 12 | 7316445501 | Switch,oven light ,door frame | 316445501, 808136601 | Call to order | ||
| NI | 7318370371 | Wiring Harness,door switch ,and latch mtr | 318370371 | $0.00 | ||
| 13 | 7318603913 | Bracket,ladder mtg. ,(4) | 318603913 | $0.00 | ||
| NI | 75304456367 | Rivet,ladder bracket ,(8) | 5304456367 | $0.00 | ||
| 14 | 7318903403 | RACK SENSING SWITCH | 318903403 | $163.30 | ||
| NI | 75304401490 | SCREW,6-18 X 1 | 5304401490 | $12.35 | ||
| 15 | 7318241002 | HALOGEN LAMP,120V | 318241008 | $123.35 | ||
| 20 | 7318389400 | PLATE,RETAINER | 318389400 | $16.60 | ||
| 21 | 7318389000 | SEAL RING | 318389000 | $21.80 | ||
| 29 | 7318147411 | BUMPER | 318147430 | $18.15 | ||
| NI | 75303325981 | Screw, 10-16 x 1 1/2 | 5303325981 | $0.00 | ||
| 37 | 7316217002 | OVEN TEMPERATURE SENSOR | 316217002, WG02L02256 | $63.15 | ||
| NI | 7318373001 | Bracket,receptacle ,temp probe | 318373001 | $0.00 | ||
| NI | 75304435874 | Plate,covering ,probe | 5304435874 | $0.00 | ||
| 53 | 7318601302 | PROBE, MEAT | 5304504202 | $115.40 | ||
| 54 | 7318601206 | RECEPTACLE,PROBE | 318601206 | $175.60 | ||
| 55 | 7316247700 | NUT,HEX | 316247700 | $17.40 | ||
| 57 | 7318361610 | PANEL,SERVICE | 318361610 | $95.05 | ||
| 58 | 7318330501 | Insulation,service panel ,12.47 x 14.77 | 318330501 | $0.00 | ||
| 58A | 7318386100 | Insulation,oven wrapper | 318594300 | $0.00 | ||
| 58B | 7318362100 | Insulation,rear & bottom ,oven wrapper | 318594324 | $0.00 | ||
| 58D | 7318285058 | Insulation,1/2`` thick ,43 x 9.5 | 318594301 | $0.00 | ||
| 59 | 7318072577 | DUCT,OVEN VENT | 318072577 | $16.70 | ||
| 66 | 7318255806 | ELEMENT BROIL,4000W | 318255806 | $288.85 | ||
| 67 | 7318601601 | BAKE ELEMENT, HIDDEN | 318601604 | $252.55 | ||
| NI | 7318231838 | WIRING HARNESS,BAKE ELEMENT | 318231870 | $79.85 | ||
| NI | 75303323130 | SCREW | 732012140 | $1.94 | ||
| 70 | 7318259102 | Shield,insulation ,sides ,(2) | 318259114 | $0.00 | ||
| 71 | 7318260007 | Panel,rear box | 318260007 | $0.00 | ||
| 76 | 7318056236 | Front,oven | $0.00 | |||
| 77 | 7316247900 | SPACER,POWER BOARD | 316247900 | $45.70 | ||
| 77A | 7316114100 | SPACER | 316114100 | $62.40 | ||
| 80 | 75303320846 | Plate,oven mtg | 5303320846 | $0.00 | ||
| 81 | 7318192400 | Spring,oven | 318192400 | $0.00 | ||
| NI | 75303323129 | SCREW 8 X 3/4 | 5303323129 | $1.75 | ||
| 82 | 7318258730 | Shield,insulation ,lower | 318258775 | $0.00 | ||
| 83 | 7318261427 | Liner,oven assy | $0.00 | |||
| 86 | 7316508600 | RECEPTACLE-HINGE DOOR ELUX,HIN | 316580700 | $31.20 | ||
| NI | 75304461333 | SCREW 10-32 X 17/32 | 5304461333 | $13.80 | ||
| 89 | 7318261217 | Motor,latch assy | 318261228 | $0.00 | ||
| NI | 7318199746 | Wiring Harness,latch ,NO BAS | 318199746 | $0.00 | ||
| 97 | 7316443919 | BOARD,RELAY,DUAL OVEN | 316443919 | $477.50 | ||
| 97A | 7316519200 | RELAY PLATE, CONVECTION | 316519200 | $273.60 | ||
| 98 | 75303297477 | SCREW | 5303297477 | $14.50 | ||
| 99 | 7318252800 | Support,side | 318252800 | $0.00 | ||
| 107 | 7318906601 | COVER FAN | 318906601 | $198.10 | ||
| NI | 75304415832 | Screw,8-18 x 0.406 | 732012720 | $0.00 | ||
| 108 | 7318073028 | MOTOR | 318073028 | $271.40 | ||
| 108A | 7318251300 | Bracket,fan support | 318251300 | $0.00 | ||
| 109 | 7318398300 | FAN WHEEL | 318398302 | $24.70 | ||
| 111 | 7318399800 | ECROU | 316136600, WG02A01650 | $19.60 | ||
| 125 | 7318398200 | CONVECTION FAN MOTOR KIT | 5304467898 | $216.25 | ||
| 125 | 75303316994 | Insulation,3.81 x 3.13 | $0.00 | |||
| 127 | 7318357001 | Adapter,vent tube | 318357001 | $0.00 | ||
| 131 | 7318272901 | Box,vent | 318272901 | $0.00 | ||
| 132 | 7318003000 | PLATE,SHIELD | 318003000 | $9.00 | ||
| 133 | 7318347800 | CHIMNEY,TOP PANEL | 318347800 | $23.95 | ||
| 140 | 7318399310 | Bracket,holding | 318399313 | $0.00 | ||
| NI | 75303324184 | SCREW,8-18 X 5/16,BLACK | 5303324184 | $0.00 | ||
| 142 | 7318123910 | Deflector | $0.00 | |||
| 143 | 7318172904 | SUPPORT,WIRE | 318172904 | $2.90 | ||
| 161 | 7318255506 | ELEMENT CONVECTION 240V 2500W | 318255511 | $122.65 | ||
| 163 | 7318531703 | Spacer,(2) | 318531703 | $0.00 | ||
| 185 | 7318531800 | SPACER - OVEN SHIELD | 318531800 | $13.05 | ||
| 219 | 7318004902 | THERMAL SWITCH | 318004902 | $78.40 | ||
| 264 | 7318257723 | Trim,oven ,black ,front | 318257723 | $0.00 | ||
| 272 | 7318249403 | Tube,protector | 318249412 | $0.00 | ||
| NI | 7318370388 | Wiring Harness,upper oven ,main | 318370388 | $0.00 | ||
| NI | 7318370370 | Wiring Harness,communication ,upper oven | $0.00 | |||
| NI | 7318165800 | SPACER | 318165800 | $18.15 | ||
| NI | 75303211311 | #8 SCREW | 5303211311 | $14.50 | ||
| NI | 75303300265 | Screw,8-18 X 1/2 ,(4) | $0.00 | |||
| NI | 75303323139 | SCREW, 10-24 X 29/32 | 5303323139 | $13.80 | ||
| NI | 75303323277 | SCREW (BLK) | 732012620 | $2.42 | ||
| NI | 75304436875 | SCREW,8-18 X 1/2,BLACK | 5304436875 | $0.00 |
*The price can change whitout warning
