Brand: Electrolux
Model: BES322ES6 - BEAUMARK/RANGE

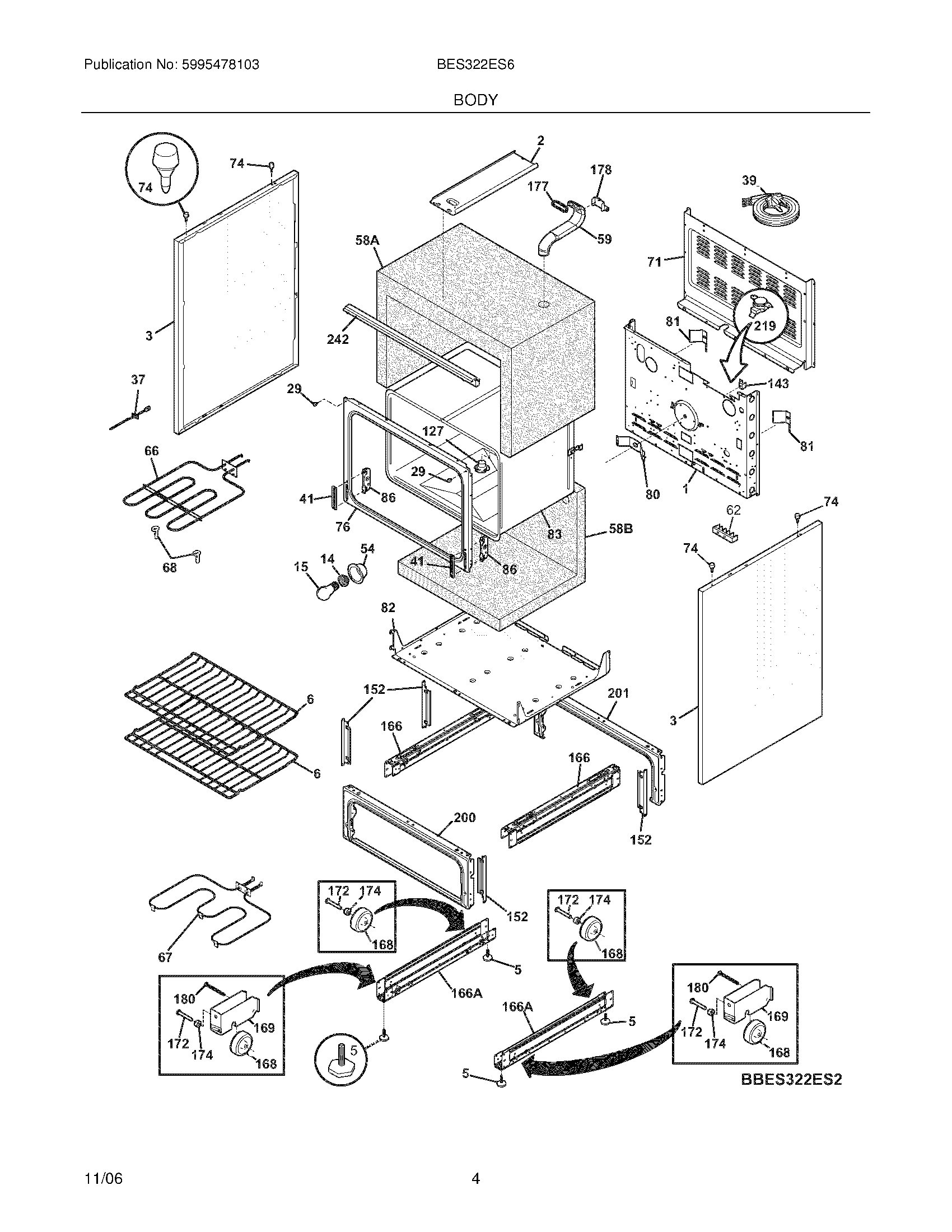

05 - BODY
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 318259204 | Back,main | 318259220 | $0.00 | ||
| 2 | 318317300 | Shield,wire ,lock motor | $0.00 | |||
| 3 | 318299801 | Panel,body side ,white ,(2) | 318299816 | $0.00 | ||
| 5 | 318175503 | SCREW LEVELLING | $16.70 | |||
| 6 | 318345207 | Rack,oven | 318345310, WG02L02434, 318262516 | $0.00 | ||
| 14 | 318224000 | SOCKET-LIGHT | 316116400, WG02F05726, WG02L06821 | $60.25 | ||
| 15 | 5303013071 | BULB-LAMP | 316538904 | $19.60 | ||
| 29 | 318147411 | BUMPER | 318147430 | $18.15 | ||
| 37 | 316217002 | OVEN TEMPERATURE SENSOR | $63.15 | |||
| 39 | 318113108 | Cord,electric | 5304520547 | $0.00 | ||
| 41 | 5303310526 | COVER-HINGE CUTOUT | $0.00 | |||
| 54 | 318222400 | HOUSING,OVEN LIGHT | $59.60 | |||
| 58A | 318285074 | Insulation,oven wrapper | $0.00 | |||
| 58B | 318285075 | Insulation,oven back | 318594516 | $0.00 | ||
| 59 | 318072574 | Duct,oven vent | $0.00 | |||
| 62 | 5303935061 | TERMINAL BLOCK | 5304409888, WG02A00893 | $11.60 | ||
| NI | 5303323139 | SCREW, 10-24 X 29/32 | $13.80 | |||
| NI | 5303323144 | NUT-10-32 | 732071040 | $0.00 | ||
| 66 | 318255600 | BROIL ELEMENT | 318255605 | $197.40 | ||
| 67 | 318255401 | Element,bake ,3400W | WG02F05200 | $0.00 | ||
| 68 | 5304403015 | SUPPORT-ELEMENT | $31.95 | |||
| 71 | 318300900 | Panel,cover | $0.00 | |||
| 74 | 318141910 | Bumper,bodyside | $0.00 | |||
| 76 | 318056216 | Front,oven | $0.00 | |||
| 80 | 5303320846 | Plate,oven mtg | $0.00 | |||
| 81 | 318192400 | Spring,oven | $0.00 | |||
| 82 | 318258707 | Shield,insulation ,lower | 318258765 | $0.00 | ||
| 83 | 318261403 | LINER,OVEN ASSY | $0.00 | |||
| 86 | 318342400 | HINGE RECEPTACLE | $45.75 | |||
| 127 | 318317000 | Adapter,vent tube | WG02F06957 | $0.00 | ||
| 143 | 318172904 | SUPPORT,WIRE | $2.90 | |||
| 152 | 318338500 | Bracket,lateral panel ,(4) | $0.00 | |||
| 166 | 318298410 | BRACKET,BASE | $72.60 | |||
| 166 | 318298400 | Bracket,base support ,(2) | WG02A00970 | $0.00 | ||
| 168 | 08011155 | Roller | $0.00 | |||
| 169 | 318317200 | Bracket,wheel brake | $0.00 | |||
| 172 | 5304448824 | Rivet,1.4`` x 1-5/8`` ,(4) | $0.00 | |||
| 174 | 5303324511 | Spacer, roller | 318531600 | $0.00 | ||
| 177 | 318053810 | GASKET,VENT | $0.00 | |||
| 178 | 318301300 | Bracket,vent tube | $0.00 | |||
| 180 | 318147800 | Screw,socket head cap ,lock | WG02A00966 | $0.00 | ||
| 200 | 318318400 | Frame,drawer ,black ,front ,w/rollers | $0.00 | |||
| 201 | 318311610 | Frame,drawer ,rear | $0.00 | |||
| 219 | 318003602 | THERMOSTAT,SAFETY | WG02F06005 | $0.00 | ||
| 242 | 318303101 | Trim,center ,black | $0.00 | |||
| NI | 318340918 | Harness,wiring ,main | $0.00 | |||
| NI | 5303211311 | #8 SCREW | $14.50 | |||
| NI | 5303323129 | SCREW 8 X 3/4 | $1.75 | |||
| NI | 5303325978 | Screw,shoulder head ,8-18 X 1/2 | $0.00 | |||
| NI | 5304415832 | SCREW,8-18 X 0.406 | 732012720 | $0.00 |
*The price can change whitout warning
