Brand: Electrolux
Model: PLHT219TCK0 - REFRIGERATOR

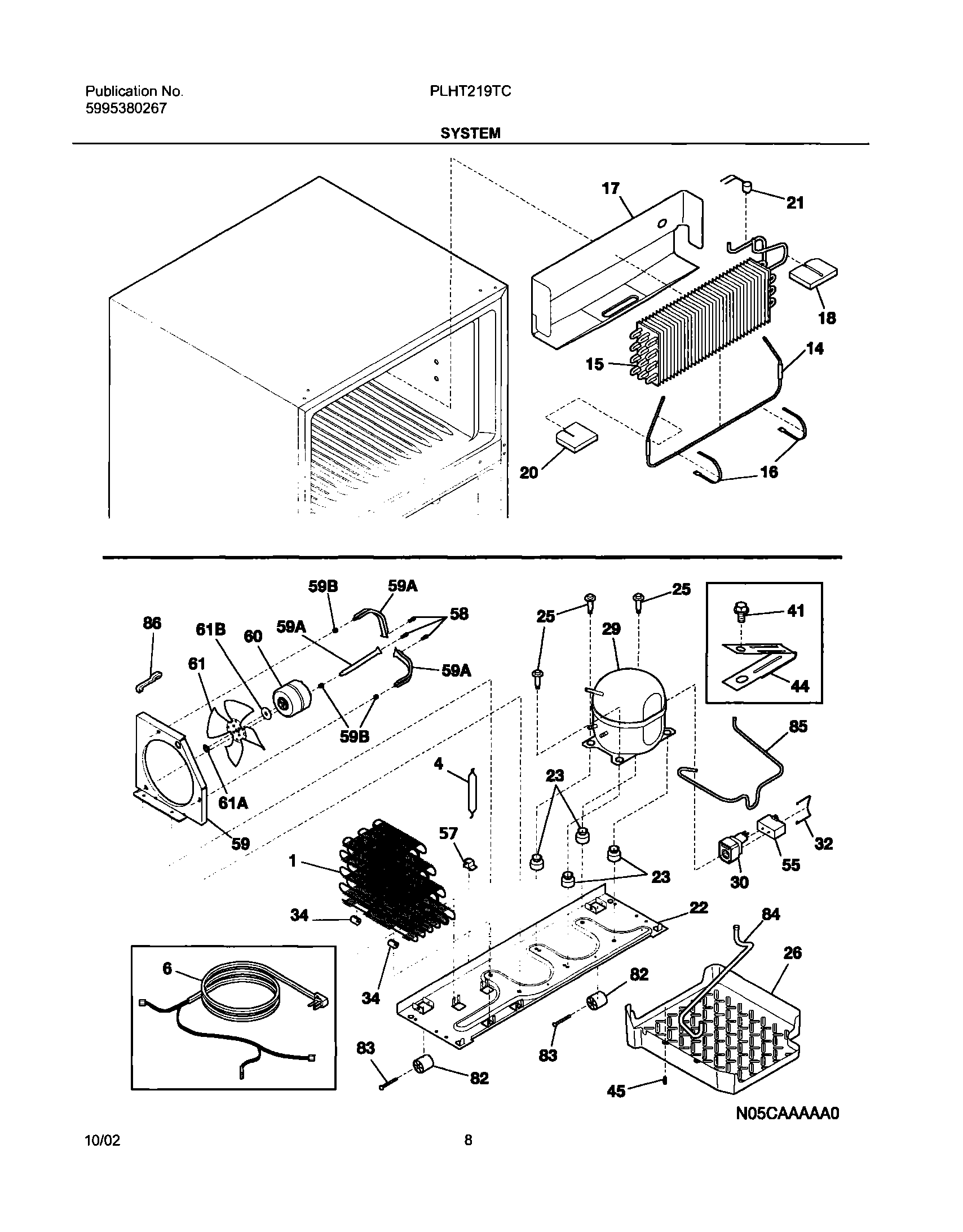

09 - SYSTEM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 240444401 | Condenser,dynamic | WG03L02591, 5304472169 | $0.00 | ||
| 4 | 218944001 | Drier-filter,R134a System | WG03F02806, 5303305677, 60041 | |||
| 6 | 240496101 | Wiring Harness,machine compt ,w/electric cord | $0.00 | |||
| NI | 240375501 | Wiring Harness,control box | $0.00 | |||
| NI | 240524801 | Wiring Harness,freezer section ,with light | $0.00 | |||
| 14 | 5303918247 | Defrost Heater Kit | WG03A00821 | $0.00 | ||
| 15 | 5303918274 | Evaporator Kit | WG03A00375 | $0.00 | ||
| 16 | 5308000110 | STRAP-EVAP/HEATER | $66.00 | |||
| 17 | 240434002 | DRAIN THROUGH | 241801301 | $63.75 | ||
| 18 | 240362301 | INSULATION,EVAP BLOCK,FOAM,LH | 240518402 | $14.00 | ||
| 20 | 240518401 | INSULATION,EVAP BLOCK,FOAM,LH | 240518402 | $14.00 | ||
| 21 | 5303918202 | THERMOSTAT - DEFROST KIT | $17.85 | |||
| 22 | 240330006 | Plate-compr mtg | $0.00 | |||
| NI | 218252200 | Screw,No.8 truss hd ,10-32CA x 0.500 | WG03A01971, 218252201 | $0.00 | ||
| 23 | 218513300 | GROMMET-COMPRESSOR MTG. | $45.00 | |||
| 25 | 240491501 | Screw-compressor mtg,hex washer head ,1/4-28 x 1.16,shoulder,typ CF | 240491503 | $0.00 | ||
| 26 | 240332602 | PAN-DEFROST,26 | 241697603 | $79.80 | ||
| 29 | 5303918251 | COMPRESSOR KIT,W/ELECTRICALS | 5304511983 | $691.50 | ||
| 30 | 218721119 | Starter-PTC | WG03F03549, 5304491941 | $0.00 | ||
| 32 | 218973501 | CLAMP,ELEC CONT MTG,COMPRESSOR | $23.25 | |||
| 34 | 240405201 | GROMMET,CONDENSOR | $21.00 | |||
| 41 | 218897001 | SCREW,HEX WASHER HEAD ,8-32 X 1/4 | $0.00 | |||
| 44 | 215174700 | CLAMP-WIRING HARNESS | 5303001199 | $69.75 | ||
| 45 | 5308016566 | SCREW | 5304455650 | $15.00 | ||
| 55 | 216787800 | Capacitor,run ,50/60 Hz ,220 VAC ,12 microfarad | 218909912, WG02F07669 | $0.00 | ||
| 57 | 240542601 | CLIP-WIRING HARNESS | $96.00 | |||
| 58 | 215004600 | SCREW-#8-32 X 3/8 | 240555002 | $14.25 | ||
| 59 | 240315501 | SHROUD-COND FAN | $0.00 | |||
| NI | 240346701 | TAPE-FOAM SEAL, SHROUD | $31.50 | |||
| NI | 240359401 | SCREW-FAN,SHROUD,(2) | 240359403 | $3.75 | ||
| 59A | 240346501 | BRACKET-SUPPORT | $23.25 | |||
| 59B | 240346601 | GROMMET-BRACKET (3) | $0.00 | |||
| 60 | 240334001 | MOTOR CONDENSER FAN | 5303918774 | $191.40 | ||
| 61 | 240315401 | Fan Blade,galv steel ,condenser fan | $0.00 | |||
| 61A | 215004700 | Nut,speed | $0.00 | |||
| 61B | 215004800 | GROMMET-SILENCER | $0.00 | |||
| 82 | 5304418225 | ROLLER,COMPRESSOR BASE,REAR | $51.00 | |||
| 83 | 5303316859 | RIVET | 5304455655 | $37.40 | ||
| 84 | 240500801 | LOWER DRAIN TUBE | $69.00 | |||
| 85 | 240493101 | Tube-connector,suction | $0.00 | |||
| 86 | 240409302 | SPACER-COND TUBE, BLACK | $66.75 | |||
| NI | 240396801 | CLAMP TUBE | $20.25 | |||
| NI | 5308000039 | SCREW-HEX.WASHER HEAD-SERRATED | $12.75 | |||
| NI | 5303918210 | HEAT EXCHANGER KIT,SUCTION LIN | 5303918330 | $354.60 | ||
| NI | 5304421289 | Hot Tube Repair Kit,Service | $0.00 |
*The price can change whitout warning
