Brand: Maytag
Model: JED3430GB00 - COOKTOP, ELECTRIC, COUNTER UNIT

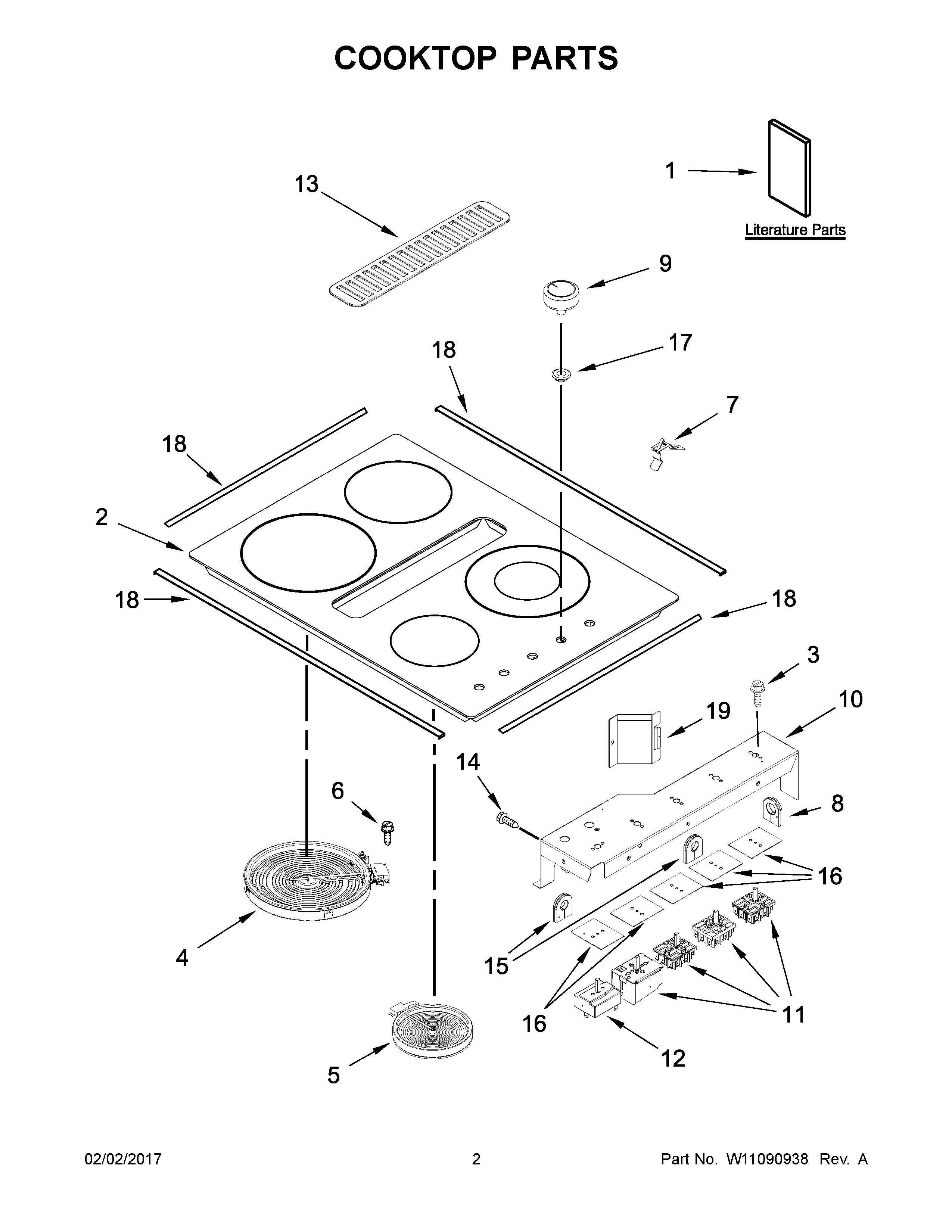

02 - COOKTOP PARTS
- 01 - COVER SHEET
- 02 - COOKTOP PARTS
- 03 - BLOWER UNIT PARTS
- 04 - BURNER BOX PARTS
- 05 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10848428 | INSTRUCTIONS, INSTALLATION | $0.00 | |||
| 1A | W10848426 | INSTRUCTIONS, USER | $0.00 | |||
| 1B | 9762761 | TIPS, SAFE COOKING (ENGLISH) | $0.00 | |||
| 1C | W10065852 | TIPS, SAFE COOKING (FRENCH) | 9759133 | $0.00 | ||
| 1D | W10917804 | SHEET, TECH | $0.00 | |||
| 1E | W11026765 | DIAGRAM, WIRING | $0.00 | |||
| 2 | W10796747 | COOKTOP | W11476176 | $623.28 | ||
| 2A | W10796746 | COOKTOP | W11476188 | $623.00 | ||
| 3 | 7101P309-60 | SCREW | WP7101P309-60 | $6.63 | ||
| 4 | W10251108 | ELEMENT SURFACE,3200W | WPW10251108 | $290.95 | ||
| 4A | W10275048 | ELEMENT SURFACE - 3000/1400W | W11517959 | $156.97 | ||
| 5 | 8273994 | ELEMENT (1200W) (RIGHT FRONT) | WP8273994, W11171119 | $0.00 | ||
| 5A | W10342780 | ELEMENT,1300W DUAL SURFACE | WPW10342780 | $196.73 | ||
| 6 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 7 | W10225448 | SPRING | WPW10225448 | $10.59 | ||
| 8 | W10324729 | GROMMET | $7.45 | |||
| 9 | W10559480 | KNOB | $94.51 | |||
| 9A | W10559479 | KNOB, CONTROL (STAINLESS) | W11747587 | $0.00 | ||
| 10 | W10815302 | BRKT-MNTG | $59.32 | |||
| 11 | W10437094 | SWITCH | W10917724 | $117.60 | ||
| 11A | W10578768 | INFINITE SWITCH | W10911303 | $117.60 | ||
| 11B | W10437092 | SWITCH-INF | W10857622 | $281.71 | ||
| 12 | W10866567 | SWITCH,OVEN | W11690658 | $46.35 | ||
| 13 | W10844354 | GRILLE | W11476087 | $290.11 | ||
| 14 | 7101P427-60 | SCREW | WPY706189 | $5.97 | ||
| 15 | 8008P068-60 | GROMMET | $14.04 | |||
| 16 | 3183956 | SEAL-SWTCH | $37.44 | |||
| 17 | W10559484 | GROMMET | W11447840 | $25.90 | ||
| 17A | W10559483 | GROMMET | W11568604 | $33.11 | ||
| 18 | W10836028 | TRIM,COOKTOP | W11091955 | $241.37 | ||
| 19 | W10912406 | SHIELD-HT | $29.54 | |||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W10809382 | HARNS-WIRE | W11190475 | $245.10 | ||
| NI | W10835283 | HARNESS,WIRE | $58.67 | |||
| NI | W10858227 | HARNS-WIRE | W11465762 | $24.50 | ||
| NI | W10909126 | SCREW | $18.05 | |||
| NI | 3192439 | SEAL,SWITCH | W10491984 | $8.61 |
*The price can change whitout warning
